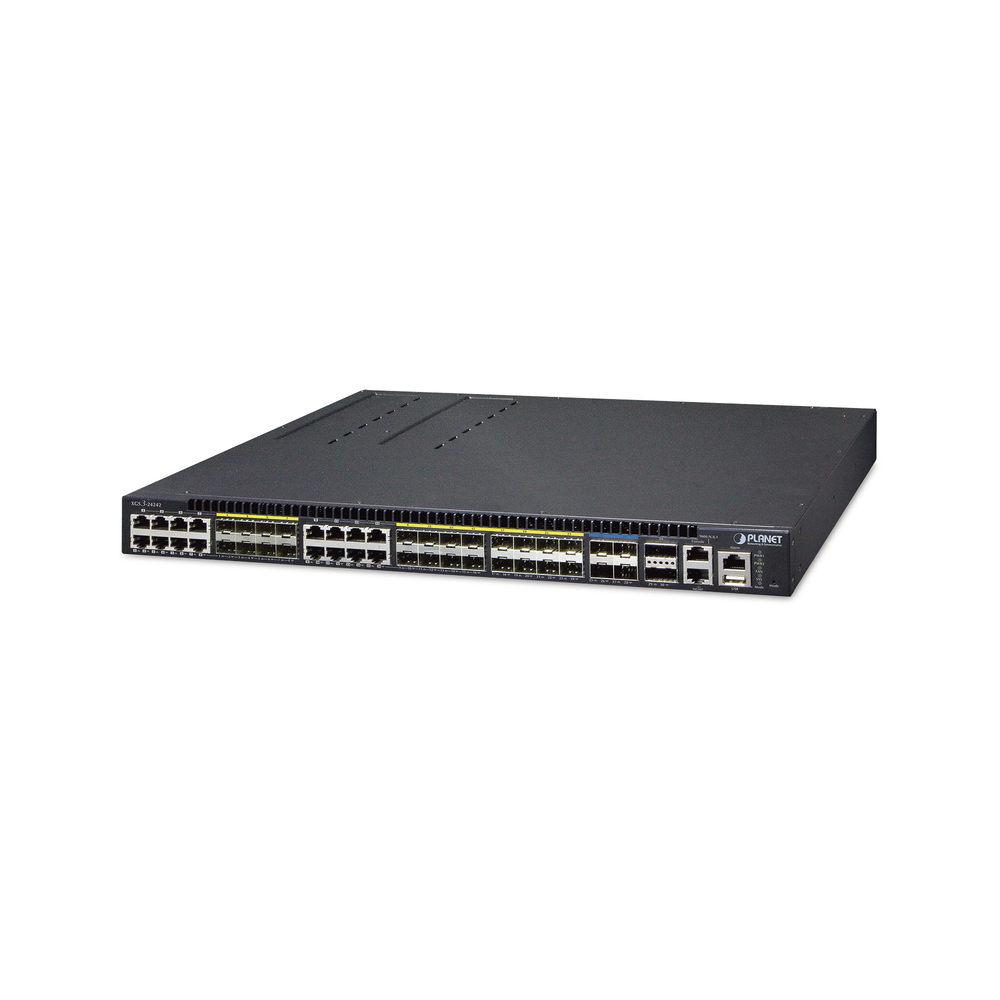

Switch Core Capa 3 de 24 Puertos 1Gbps SFP con 16 Puertos 1Gbps Compartidos + 4 Puertos 10Gbps

Ports:

• 24 ports SFP 100/1000BaseX.

• 12 ports 10/100/1000Base-T shared (ports 13-24).

• 2 expansion modules 10G SFP+ Max. 4 ports 10G.

Stacking (Stacking):

• Up to 24 stacked switches managed as if it were 1.

• Management of the entire stack with a single IP Administration.

Management:

• Management via web interface.

• Command line interface by Telnet / console.

• Monitoring via SNMP v1, v2c.

• Support SSL.

• Client DHCP.

• Firmware update / configuration by TFTP and HTTP.

• Real-time monitoring with history statistics, alarms and events.

• Function DHCP Relay.

Layer 2 Characteristics

• Complies with Gigabit802.3,802.3u, 802.3ab, 802.3z standards.

• Full / HalfDuplex10Base-T / 100Base-TX / 1000 Base-T Auto-Negotiation for all ports.

• Auto-Detection MDI / MDI-X for each RJ45 port.

• High performance Store and Forward architecture, runt / CRC filtering eliminates erroneous packets to optimize network bandwidth.

• 1KMAC Address Table with Autolearning Function.

• Supports Quality of Service, MulticastI GMPS nooping V1 and V2, FlowControl, 802.1Q VLANs, 802.3ad LACP Link Aggregation, 802.1D / 802.1w Spanning Tree Protocol, Port Mirroring, Broadcast / Multicast / Unicast Storm Control, ACL, NTP, LLDP.

• Throughput: 95Mpps @ 64Bytes

Layer 3 Characteristics

• Route via IP, Multicast VLAN.

• Static routes.

• Routes used RIPv1/v2,OSFPv2,BGPv4.

Physical and Electrical Characteristics:

• Power supply: 100-240VAC @ 30W

• Dimensions: 1U Rack, 440 x 200 x 44.5 mm.

Security

• Password Protected Access, IP / MAC Binding, MAC Filtering, Static MAC, Port Security, 802.1x port based network access control.

• Supports User authentication by RADIUS / TACACS +, with built-in RADIUS Client.

• Defense against DoS attacks.

• Spoofing Attack Prevention.

• Dynamic ARP inspection.

• DHCP Snooping to prevent unreliable DHCP messages.

• IP access list to prevent intruders.

Physical and Electrical Characteritics

• Redundant power supply 100-240VAC / 79W & 48VDC

• Dimensions: 1U Rack, 415 x 325 x 44.5 mm.

• Weight: 4.3 Kg.

• Operating temperature:0 to 50°C
