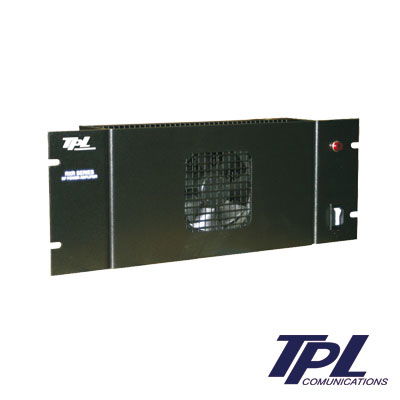

Amplificador de Ciclo Continuo en VHF para Rack 19", Potencias de Entrada/Salida de 1-5 W/40-125W, consumo de 20 A. Incluye Ventilador.

VHF Continuous Duty Cycle RF Amplifier, 19" Rack Mount, Input 1-5 W/ / Output 40-125 W.

The RXR Series amplifiers are our most popular cost effective, continuous duty power amplifiers. This package will accept any TPL amplifier from VHF Low Band through 960 MHz, with output levels up to 125 watts. All configurations use 7" of vertical rack space and are designed with a flat front panel allowing for installation into a cabinet leaving sufficient room for airflow with the door closed. These amplifiers have a circuit breaker/on-off switch conveniently located on the front panel and can be supplied with or without a switching power supply. This series is the most versatile unit of its type on the market today.



SPECIFICATIONS

Power Input    Standard TPL amplifier input levels, optional 10mW or less.
Power Output    Up to 125 Watts
Frequencies    VHF Low Band, VHF High Band, UHF, 806-960 MHz
Voltage    13.8 VDC, 120 or 240 VAC (24 VDC or 48 VDC available)
Current    Model dependent.
Harmonic Attenuation    Exceeds FCC and IC specifications
RF Connectors    Type N, 50 Ohms
Operating Temperature    -3 to +50 degrees C
Duty Cycle    Continuous (100%)
Weight    7 lbs., 14 lbs, w/power supply
Dimensions    19" W x 7" H x 3" D (without fan), 19" W x 7" H x 5" D (with fan) 8" D w/power supply.



FEATURES

•    Accommodates all bands from 29.7 MHz to 960 MHz
•    Front panel circuit breaker/on-off switch.
•    .100% duty cycle operation.
•    Flat front panel allows for cabinet door closure.
•    Repeater or base station operation (with solid state bypass relay option).
•    Optional provision for battery backup.
•    19" rack mountable configuration.
•    Cost effective design.
•    Available with or without self-contained switching power supply.




Input Power 1-2.5 W, Output Power 80-150 W, VHF band, 20 Amps, includes fan, designed for 19" rack.
• Accommodates all bands from 29.7 MHz to 960 MHz.
• Vertical fins for efficient convection cooling.
• 100% duty cycle operation.
• Repeater or base station operation (with bypass relay option).
• Available with or without self-contained switching power supply.
• Front panel circuit breaker/on-off switch - flat front panel allows for cabinet door closure.
