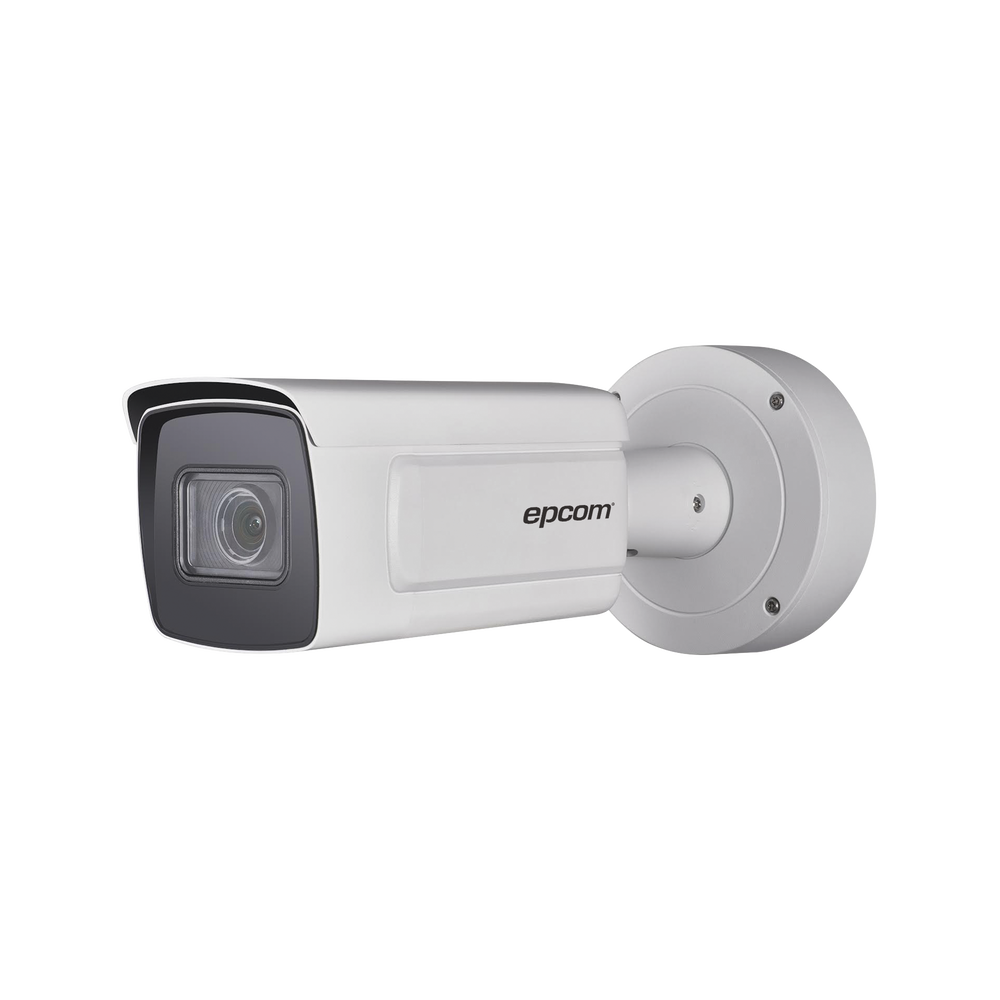

ANPR IP Bullet 2MP / Darkfighter Ultra low light technology / 140 dB WDR / H.265+, H.264+ / IP67 / IK10 / Alarm I/O

   Specifications
Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Day & Night: IR Cut Filter
• Digital Noise Reduction: 3D DNR
• WDR: 140 dB
• Angle Adjustment Bracket: pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal length of 2.8 to 12 mm
• Aperture: F1.2
• Focus: Auto, semi-auto, manual
• FOV: 2.8 to 12 mm:
  • Horizontal FOV 103.3° to 38.6°
  • Vertical FOV 54.2° to 21.9°
  • Diagonal FOV 124.2° to 44.3°
• IR Range: Up to 50 m

Compression Standard

• Video Compression:
  • Mainstream: H.265/H.264/H.265+/H.264+
  • Substream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Smart Feature-set

• Perimeter Protection
  • Line crossing detection
  • Intrusion detection
  • Region entrance detection
  • Region exiting detection
  • Unattended baggage detection
  • Object removal detection
• Exception Detection: Scene change detection, defocus detection
• Statistics: No
• Face Detection: Yes
• Recognition: License Plate Recognition

Road Traffic and Vehicle Detection

• Accuracy (Under recommended installation and lighting conditions)
  • Capture rate > 98%
  • Vehicle moving direction recognition accuracy > 96%
  • Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
• Blacklist and whitelist: Max. 10,000 records
• No License Plate Detection: Yes
• Motorcycle LPR: Yes (only applicable to checkpoint)


• Max. Resolution 1920 × 1080
• Main Stream
  • 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream
  • 60Hz: 30fps (704 × 480, 640 × 480)
• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, lens distortion correction
• Target Cropping: Yes

Network

• Network Storage:
  • MicroSD/SDHC/SDXC card (256 GB)
  • Local storage and NAS (NFS, SMB/CIFS)
  • ANR
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Interface

• Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
• Alarm: 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
• On-board storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Reset ButtonYes

General

• Operating Conditions:
  • -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F)
  • Humidity 95% or less (non-condensing)
• Power Supply:
  • 12 VDC ± 20%, two-core terminal block
  • PoE (802.3at, class 4)
• Power Consumption: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
• Protection Level: IP67, IK10
• Material: Aluminum alloy
• Dimensions: Camera: Φ140 × 351 mm (Φ5.5″ × 13.8″)
• Weight: Camera: approx. 2.5 kg (5.51 lb.)
