Contador / Rastreador de frecuencia para señales Analógicas y Digitales.

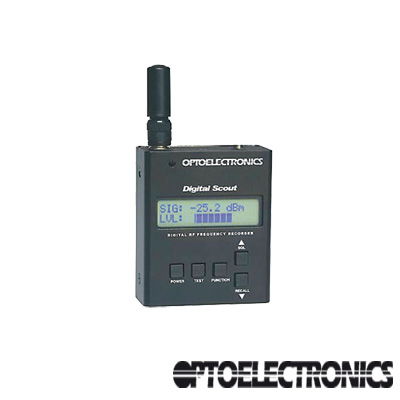

The Digital Scout RF frequency recorder / field strength meter is the only instrument capable of counting pulsed RF (digital signals), as well as conventional CW (analog signals) from 10MHz - 2.6GHz.



Features



-10MHz - 2.6GHz frequency range
-4 hour battery operation
-2x16 alphanumeric LCD with EL backlight
-Signal Strength reading displayed in dBm and bargraph -45dBm to -5dBm
* +/- 5dBm signal strength accuracy
-Memory download and real time datalogging using built-in RS232 interface (CBDS interface cable and OptoSuite Pro software sold separately)
-Reaction Tune analog signals with ICOM IC PCR1000, R10, R20, R7000, R7100, R8500 and R9000. AOR AR8000 and AR8200. Optoelectronics Optocom, OS456/Lite, OS535 and R11.
1000 memories with 65,000 hits per memory
-Captures both Digital (Minimum 300uS RF pulse required) and Analog signals
-Beeper and Vibrator alert



   Technical Specifications


Frequency Range                       10MHz-2.6GHz
Input Impedance                        50 Ohm
Resolution                                 1kHz and 100Hz
Max Input                                  +15dBm (50mW)
Signal Strength                          -45dBm to -5dBm
Signal Accuracy                         Relative signal strength +/- 5ppm
Digital Modulations                     GSM,TDMA,TETRA,APCO 25,FHSS
Frequency Time Base                10MHz +/- 1ppm initial accuracy
Display                                      2x16 alphanumeric LCD with EL backlight
Size                                          3.7"H x 3"W x 1.75" D
Power Requirements                  9-12VDC, 300-1000mA, center +
Battery                                      Internal rechargeable 5 cell NiCd
Battery run time                         4-5 hours on full charge
