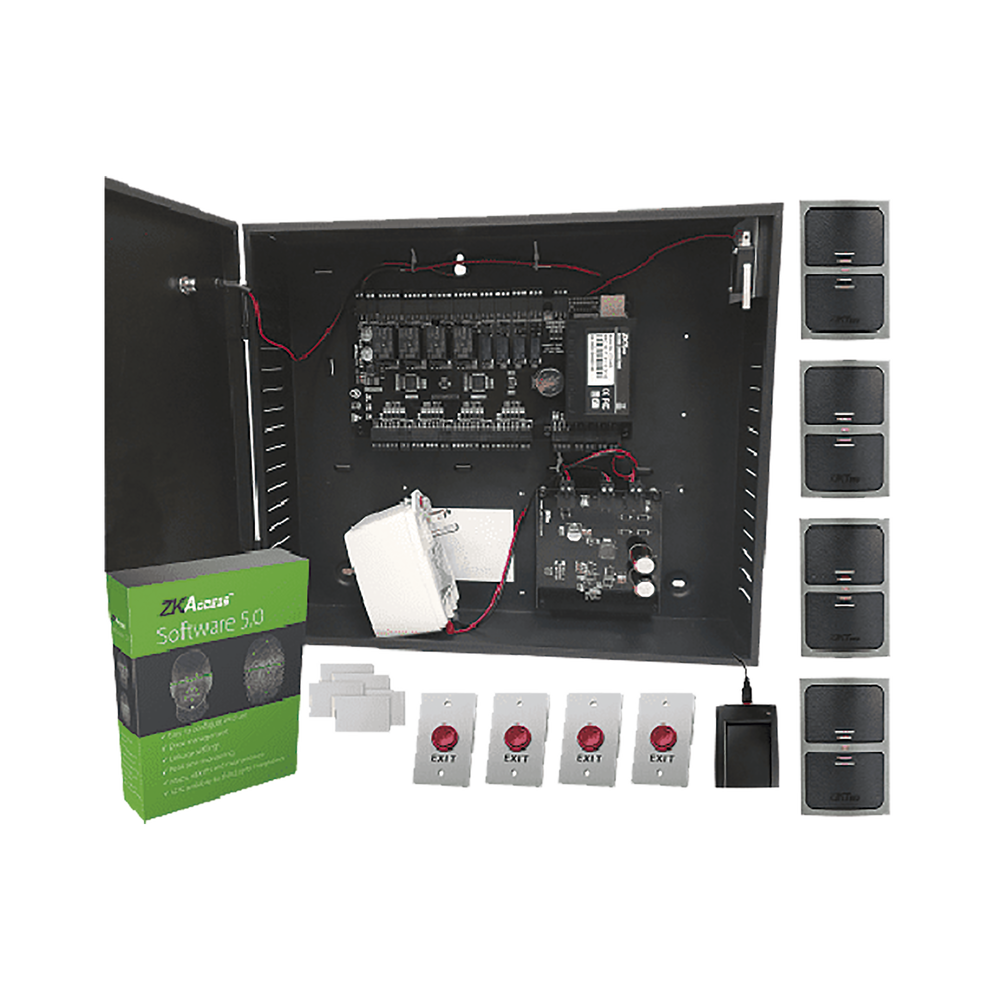

Access Control 4 Door Kit, 1 C3400 panel, 1 CR10E, 4 KR500E, 4 PTE-1, 50 Proximity (Clamshell) cards

DESCRIPTION

ZKAccess systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system- all from a web browser. Simply download one instance of our free Windows-based v5.3 software (on a customer’s computer or ZKAccess InBridge appliance) and then manage the software from any computer’s web-browser which has administrative rights.

C3-400’s versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable door controllers on the market, with a multitude of built-in features.

Be sure to inquire about ZKAccess options which can further reduce your C3 installation time and labor, including:

1. Power over Ethernet (12V 2A)
2. InBridge Server (Single-purpose management appliance with pre-loaded software)
3. Wireless Bridge (up to 300-foot range)

FEATURES

• (1) C3-400 panel, power supply, and metal cabinet
• (1) CR10E – USB Card enrollment reader
• (4) IP65-rated KR500E Card readers
• (4) PTE-1 Exit Button
• 50 pcs Proximity (Clamshell) cards

SPECIFICATIONS

• Users: 30,000
• Event Buffer: 100,000 transactions
• RAM: 32M
• Reader Port:
  • 26/34bit Wiegand
  • 8bit burst for PIN
• Output Port:
  • 1 Aux FORM-C relay output-SPDT [email protected] DC
  • 1 FORM-C relay output-SPDT [email protected] DC
• LED Indicator: communication, power, status and prox card
• Operating Temperature: 32-113 ºF (0-45 ºC)
• Operating Humidity: 20% to 80%
• 32bit: MIPS CPU
• Communication: RS485, TCP/IP
• Input Port:
  • Exit Button 1, 2, 3, 4
  • Door Sensor 1, 2, 3, 4
  • Aux 1, 2, 3, 4
• Baud Rate RS485: 9600-28400 baud
• Power Supply: 9.6V-14.4V DC, 1A
• Dimensions (Length x Width): 10″ x 6.6″
