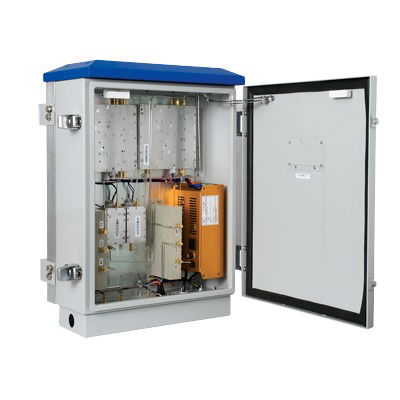

Repetidor de Señal Celular de Alta Potencia. Especial para Crear una Zona Celular en Áreas Rurales o Comunidades Alejadas. 95 dB de Ganancia, 20 Watts de Potencia, 1900 MHz Banda de Frecuencia. Hasta 5 Km Lineales de Cobertura.

RF repeater is a bi-directional signal amplifier which receives a weak signal, amplifies and retransmits it at a stronger signal level or through the other side of an obstruction. With the usage of repeaters, weak signals can cover longer distances, providing more cost-effective cellular network optimization and expanding larger coverage areas.

The CR-SOG19WB repeater coverage distance can be from 500 meters to 5 Km; the length, as well as at the indoor equipments, is a total system gain function, the antenna height above the ground level, the topography, landscaping bushes and trees.
The service antenna is mounted on top of the tower, and the donor antenna on the 20 to 30 meters nearby. Sometimes, the spread area is improved when the positions are inverted.

It is highly recommended to install antennas with the most possible gain.

• Frequency range: 1850 ~ 1895 MHz Uplink and 1930 ~ 1975 MHz Downlink.
• Bandwidth: 25 MHz.
• Gain: 95 dB.
•  Output maximum power: 43 dBm (20 W) Downlink and 33 dBm (2 W) Uplink.
• Connectors: N-Female type.
• Power supply: 110 VAC.
• Dimensions: 24.8 x 16.14 x 9.2” (630 x 410 x 234 mm).
• Weight: 77.16 lb (35 Kg).

It is required the frequencies authorized dealer for the equipment installation and operation. The owner and installer are the only responsible of this signal amplifier operation.
