PANEL HIBRIDO 8-32 ZONAS CONEXION IP CON GABINETE METALICO

The FORCE Series presents the revolutionary professional hybrid alarm systems from PIMA. FORCE, the complete system with the maximum characteristics and all communication channels; FORCE Lite, a more cost-effective version designed to provide a solution where connectivity is not required via telephone line (PSTN) and FORCE 32, an economic system designed for private homes and small businesses.

First Level Security

The FORCE series sets new standards in the field of security. The FORCE series provides high-level security by including 128-bit AES encryption in all its IP communications, and to provide greater security, it assigns separate access codes to installers and the Central Monitoring Station, enabling an uninterrupted system connection with the ECM, at any time and independent of the installer's code. Additional security features include advanced options such as the ability to limit users through authorizations to perform only specific operations, time limits for zone overrides and granting access to remote technical support under the approval of the system user.

Easy to install, configure and use

Equipped with a unique combination of tools and features, the FORCE series systems are designed to make installation incredibly easy for Monitoring Stations and installers: Energy diagnostics provide real-time visualization of the current consumption of the panels and peripherals, as well as voltage levels. Systems can be configured remotely securely over IP. And likewise, they can also be controlled remotely, end users benefit from the simplicity and speed of the link and operation between the PIMAlink 3.0 system in the cloud and the application on smartphones. The new keyboard design includes a large 7-line LCD screen with built-in help, for intuitive and fast installation

Maximum scalability

The flexibility of FORCE makes it the ideal system for residential and commercial installations of all sizes: with eight integrated zones and up to 144 users, FORCE can easily be scaled to 144 zones. FORCE Lite, with eight integrated zones can be scaled to 64 zones and up to 64 users. FORCE 32 offers eight integrated zones and can be scaled to 32 zones.

Features

• Interconstructed Ethernet port

• 8 zones in Expandable card to 16 with dubbing

• Up to 32 zones. Using Wired or Wireless Expanders

• Up to 24 Wireless Zones

• Up to 8 keyboards

• Send notification to the PIMALink 2.0 application

• Up to 32 users

• Inform 2 CMS (at the same time)

• Multidirectional CMS communication options that include Ethernet, PSTN, cellular, long-range radio

• 4 partitions

• Remote firmware update

• Easily cloud synchronization (and decoupling) of the smartphone with the control panel

• Integration with a wide range of wireless peripherals

• Easy arming / disarming the system with keyboards, keyboards and smartphone applications

• Robust protection.

• Various EOL options (programmable resistors, one or two resistors)

• EOL protected sirens

• Sophisticated false alarm prevention mechanism such as hit zone, crossing zone, etc.

IT INCLUDES:

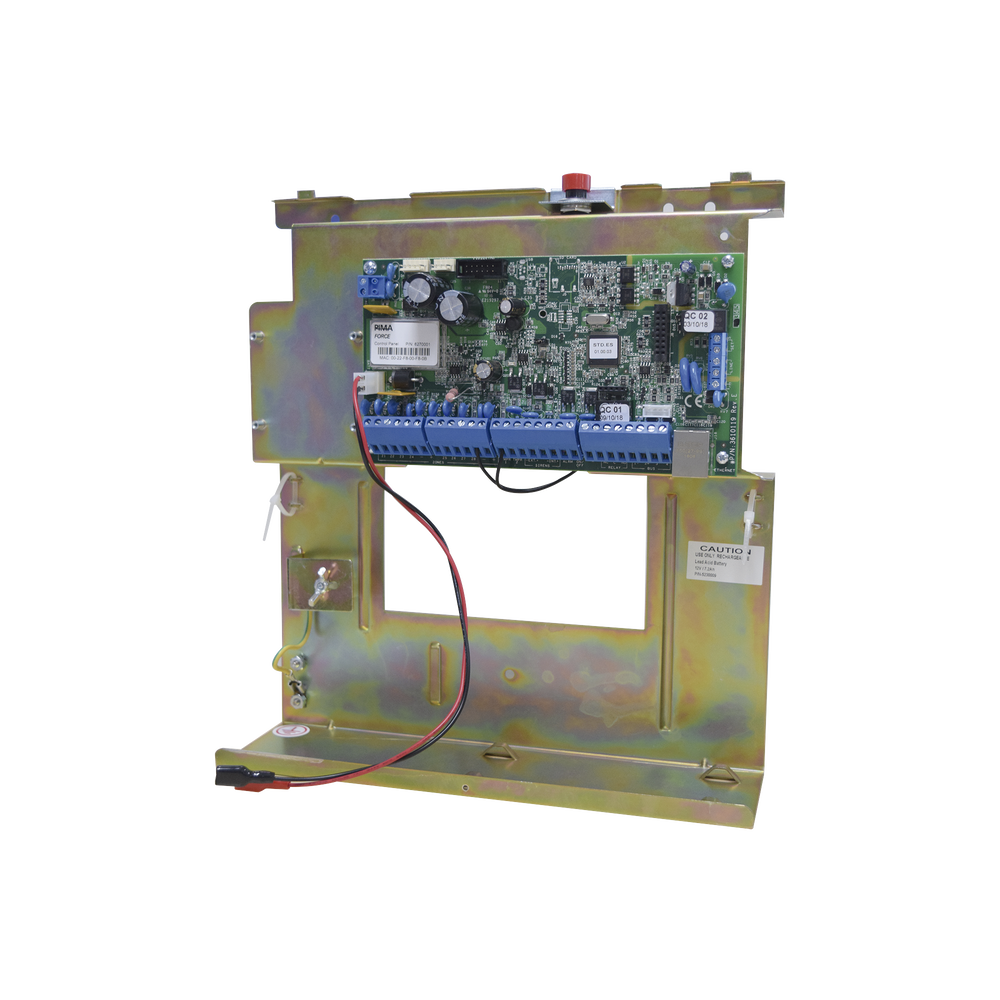

»FORCE32C Alarm Panel with cabinet and Tamper
