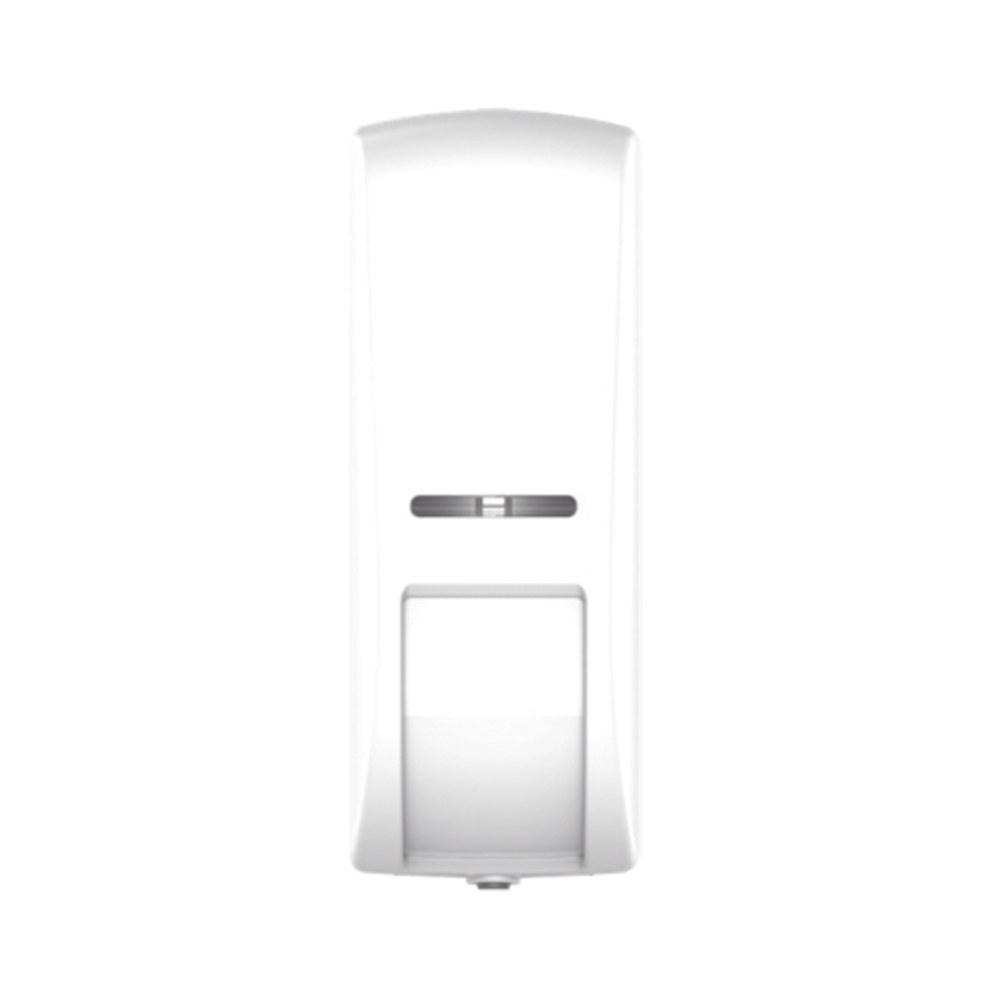

DETECTOR PIR INALAMBRICO TIPO CORTINA LINEA FORCE

DPC - Wireless PIR Curtain Detector

The DPC is a wireless PIR (passive infrared) motion detector with curtain coverage pattern with FastLink technology, designed for the FORCE series and Hunter-Pro series alarm systems. FastLink communication is encrypted using 128-bit AES encryption to provide a high level of security. To use the DPC detector requires the prior installation of a wireless receiver.

The microchips-based DPC detector is designed for the protection of doors, windows, and glass walls, and can be used in apartments, private homes, and offices.

The DPC has an elegant design. When it detects a movement, it transmits an alarm signal to the control panel. The detector also has a tamper switch that alerts when it opens or when the detector is removed from the wall.

The DPC transmits a monitoring event every 15 minutes and also when replacing the battery. The detector reports to the control panel about the low battery condition.

For information on how to register (enroll) the device, refer to the alarm system installation guide.

Package content

- DPC detector

- Screws and mounting tapes

- This guide

Technical specifications

- Frequencies (MHz):

- DPC143: 433.92

- DPC187: 868.35

- Battery: 1X CR123A, 3.0VDC, Lithium

- Battery life: Up to 5 years (in typical use)

- Dimensions: 9 X 3.5 X 4cm

- Weight: 110gr

- Complies with CE regulations

- Operating temperatures: from 0 to + 50 ° C

- Humidity (Max.): 93% R.H., No condensation

- Dimensions: 9 X 3.5 X 4cm

- Weight: 110gr

- Complies with CE regulations

- Operating temperatures: from 0 to + 50 ° C

- Humidity (Max.): 93% R.H., No condensation
