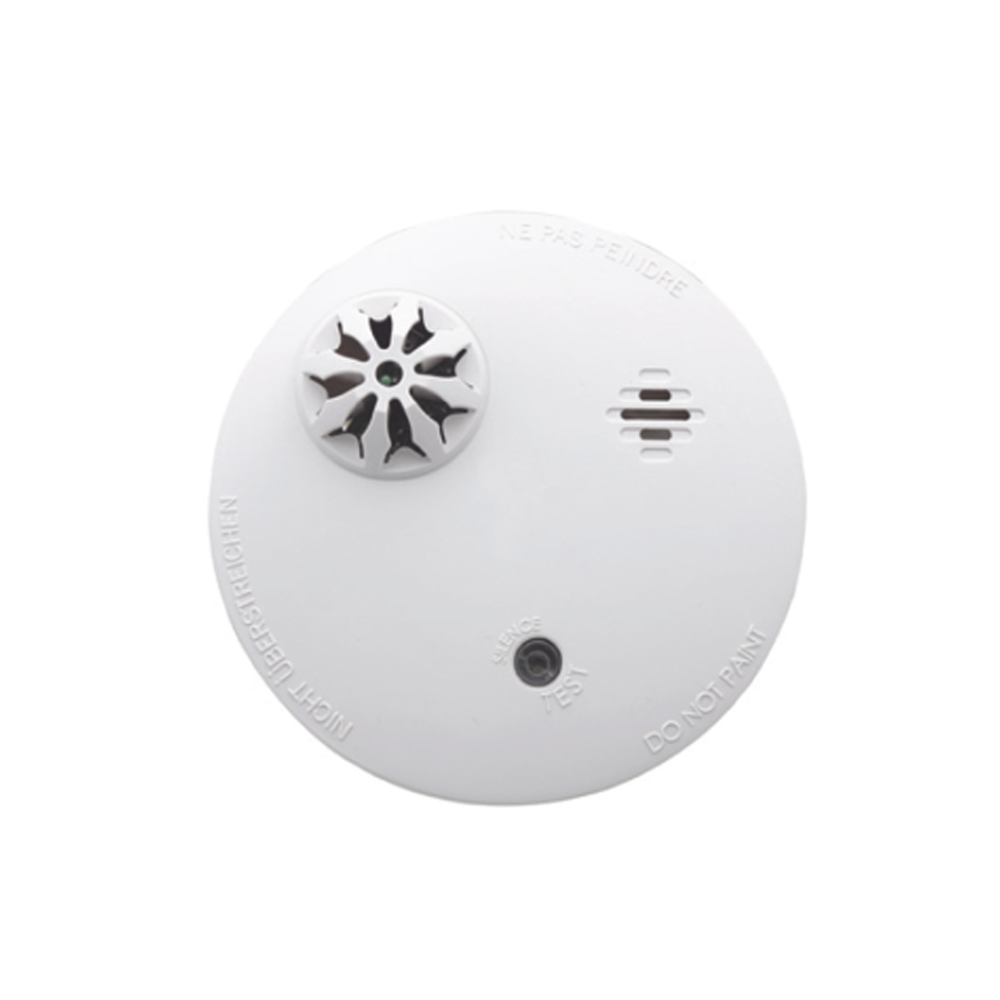

DETECTOR INALAMBRICO DE HUMO/CALOR LINEA FORCE

SH - Wireless Smoke / Temperature Detector

The DSH is a dual wireless Smoke / Temperature detector with FastLink technology, designed for PIMA alarm systems. FastLink communication is encrypted using 128-bit AES encryption to provide a high level of security.

To use the DSH detector requires the prior installation of a wireless expander.

The photoelectric smoke detector is designed to detect any accumulation of smoke in homes and offices, sound an alarm and report wirelessly to the control panel.

The DSH continuously monitors the surrounding air and warns before there are potentially dangerous levels of smoke.

The temperature sensor is designed to warn in advance of the existence of a growing fire and to provide valuable time to escape before the fire spreads.

The DSH is based on the Everday MD368SHB1 detector. For information on how to register (enroll) the device, refer to the alarm system installation guide.

Technical specifications

-Frequencies (MHz):

-DSH 143: 433.92

-DSH 187: 868.95

-Battery: 1X 3VDC, Panasonic CR123A / Duracell DL123A (or any compatible battery), Lithium.

 - Estimated battery life: Up to 1 Year

 -Consumption of standby current: 25uA

 -Alarm current consumption: 60mA (max.)

-Dimensions: 12 X 5.75 cm

 -Weight: 200gr

-Sound level: 85dB / 3M

 -Sensitivity range:

 -EN14604: 0.105dB / m ~ 0.165dB / m

 -UL217 / 268: 1.8% / ft ~ 3.5% / ft

-Temperature range:

-EN54-5: 1 ° C / min at 29 (lower limit) / 46 (upper limit)

-UL539: 53.3 ° C (min.) / 73.9 ° C (max.)

-Complies with CE regulations

-Operating temperature: -10 to +50 ° C

-Humidity (Max.): Up to 90% R.H., without condensation.

Package content

-SDH detector

-Drums

-Screws and mounting tapes

-This guide
