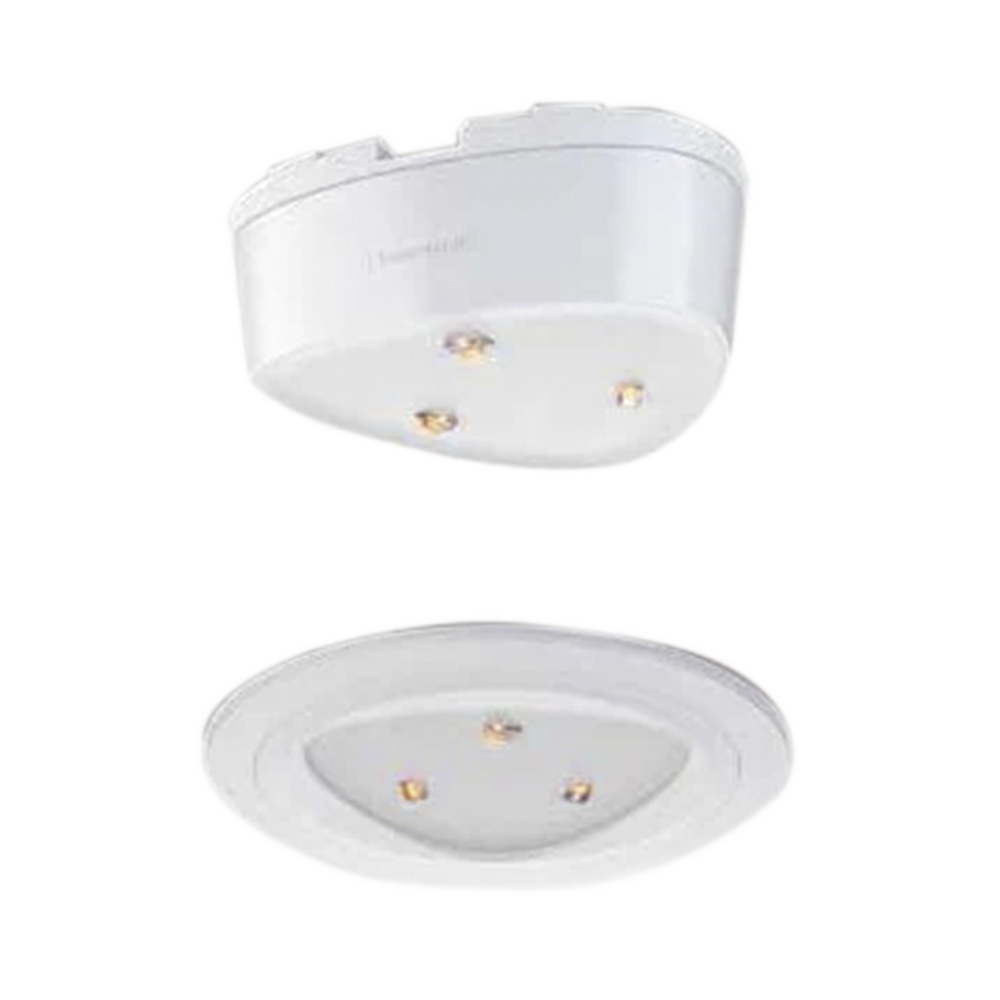

Sensor de Movimiento de 360° Doble Tecnología, se puede Instalar a una altura máxima de 8m

Designed for high security commercial indoor environments and large residences, the new ceiling mount DT8360 DUAL TEC® motion detector series with anti-mask* technology quickly detect intentional and accidental masks or attempts to block the detector, ensuring a trouble condition is immediately sent to the control panel. A 360° field-of-view and an extremely dense and wide detection coverage reduces the need for multiple detectors.

Features:

High Detection Coverage

360° field-of-view, extremely dense and wide detection coverage compared to the similar products of the market.

Mirror Optics

Mirror optics provide the most reliable technology, offering the best detection/ false alarm ratio.

V-Plex® Patented Polling Loop Technology

DT8360CM-SN and DT8360CM-SN sensors are compatible with Honeywell control panels that support V-Plex devices, using two-wire loop technology which offers significant advantages over peer-to-peer wiring or the conventional four-wire multiplex to save you time and money.

On-board EOL Resistors

No need to add external resistors for zone supervision. Simply flip a DIP switch to suit your control panel.

Removable Terminal Strip

Our new, easy-access removable connector provides flexible wiring and easier mounting during installation.

Alarm and Tamper

The DT8360 Series is equipped with a energized Alarm Relay (Form A), Trouble Relay (Form B) and a Cover and Wall Tamper Relay (Form A) for maximum detection reliability.

Digital Adaptive Microwave Thresholds

DT8360 Series digitally adjusts thresholds to account for room disturbances such as ceiling fans and other repetitive moving objects. The result – excellent false alarm immunity even in “active” rooms.

Self-test Patented Solution

The detector tests the full microwave circuit periodically by sending and receiving a test signal. In case of any anomaly, the detector triggers the anti-mask/trouble relay.

Advanced DualCore Signal

Processing (DUAL TEC®) Supports a multitude of advanced functions, including concurrent diagnostics, digital fluorescent light interference filter, digital adaptive microwave threshold, adaptive baselines and bidirectional temperature compensation.

 PIR White Light Immunity

A patented black bug guard reduces false alarms by providing 6,500 lux of white light immunity. This helps reduce false alarm problems caused by lights, flashlights or reflective objects.

Coverage Pattern Masking

A set of 60° masks are provided for masking undesired areas (60°, 120°, 180°or 240°).

Flashlight Walk Test

Reduces installation time as the walk test can be enabled by simply waving a flashlight at the detector. Automatically times out.

Vibration Patented Solution

Built-in shock feature. In case of vibration, this component overrules the PIR signal and assures the device stays in dual mode permanently.

Quick and Easy Installation

Integrated srews, adjustable mounting slots and a rotating mountain height adjustment dial enable a quick and easy installation for nearly all surfaces and ceiling heights.
