Detector de Movimiento / 100% Exterior /  Cableado / Hasta 24 metros / Instalación hasta 3 metros / Compatible con cualquier panel de alarma
Detector de Movimiento / 100% Exterior /  Cableado / Hasta 24 metros / Instalación hasta 3 metros / Compatible con cualquier panel de alarma

Detector de Movimiento / 100% Exterior / Cableado / Hasta 24 metros / Instalación hasta 3 metros / Compatible con cualquier panel de alarma

$0.00
Marca:
Código del producto: HX80N
Disponibilidad: ¡Agotado!

Descripción del producto

Description:

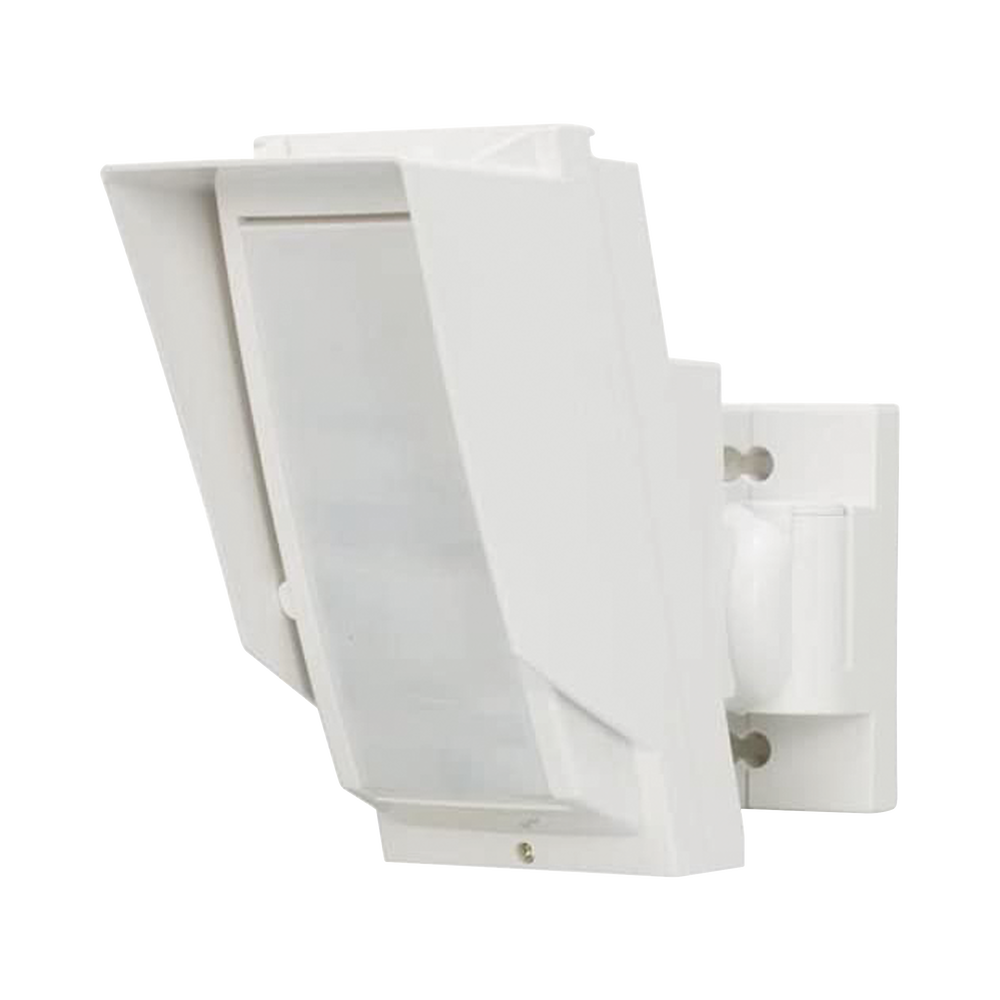

The HX-80N is a high mount, outdoor passive infrared detector that provides the stability and reliability necessary for an outdoor PIR sensor. The most important element in reliable outdoor detector is accuracy to distinguish a human from a small animal. The exclusive pyro element on board enables the HX to project an ideal detection pattern, thus allowing for more accurate detection of humans and less false alarms. In addition, the HX-80N's dual PIR's and 20 detection zones utilize the 'AND' detection pattern technology - upper and lower detection areas have to be activated in order to generate an alarm condition. This technology helps to prevent false alarms caused by a pet or small animal. The HX Series' detection length can be limited to avoid unwanted detection, and it's short range zones can be masked if needed. By limiting the detection range, false alarms due to unwanted movement (cars, persons or animals outside the protected area) can be eliminated.



Product Specifications:

ModelHX-80N
Detection MethodPassive Infrared
Anti-masking-
PIR Coverage80' x 6'7" (24.0 m x 2.0m) narrow/ 20 zones
PIR Distance Limit22', 33', 42', 59' (6.5m, 10.0m, 13.0m, 18.0m)
Detectable Speed1'/s - 4'11"/s (0.3 m/s -1.5 m/s)
Sensitivity3.6°F (2.0°C) at 0.6 m/s
Power Input9.5 - 18 V DC
Current Draw35 mA (max) at 12 V DC
Alarm Period2.0 +/-1.0 sec
Warm-up PeriodApprox. 60 sec (LED Blinks)
Alarm outputForm C 28 V DC 0.2 A (max)
Tamper outputN.C. 28 V DC 0.1A (max), N.C. open when the cover removed
Trouble output-
AUX inputN.C. 28 V DC, 0.1 A (max)
LED indicatorRed: Warm-up, Alarm
RF interferenceNo alarm 10 V/m
Operating Temperature-4 - + 140°F (-20 - +60°C)
Environmental humidity95% max
WeatherproofIP 55
MountingWall
Mounting Height8'2" - 9'10" (2.5 -3.0 m)
Bracket adjust angleVertical: +/-20° Horizontal: +/-95°
Weight25.4 oz (720g)
AccessoriesBracket, Screw (4 x 20 mm) x 4
