Panel de Alarma Inalambrico con Pantalla Touch y Automatizacion

Honeywell’s LYNX Touch 5210 all-in-one home and business control system features a bright, 4.3" full-color touchscreen with graphic icons and intuitive prompts for easy operation. It features live video on demand, Z-Wave® automation capabilities, advanced alarm communications, garage door notification and control, tornado alerts for U.S. and Canadian residents, and remote software upgradeability.

System:
• 4.7" color graphic touchscreen
 - Resolution 470 x 256 pixels
 - 16.7 million colors
 - Intuitive easy-to-use touchscreen interface
 - Easy to understand icons
 - Menu driven navigation
 - Quick, accurate programming
 - Two dedicated keys – for easy access to the home screen and emergency functions
• On-premises video viewing
• Wi-Fi support
 - Two-way voice
• Integrated Z-Wave provides control and integration of:
 - Thermostats
 - Water valves
 - Door locks
 - Sirens
 - Lighting
 - Scenes, schedules and rules
• Voice announcement of system and zone status
• Family message center (for user recorded
messages)
• Voice chime by zone
• 10 selectable chime tones
• Automatic stay arming
• 32 user codes (Installer, Master, plus 30 Secondary, including Duress and Guest)
• Three panic functions
• Wall or desk mount
• Viewable event log stores up to 128 events
• Exit error feature
• Case tamper
• RF jam detection
• Quick Exit feature provides users with an exit delay after arming their system
• Night Stay and Silent Exit modes
• Hinged cover for easy installation

Zones
• One hardwired zone
• Wireless zones – 64 programmable plus 16 dedicated to keyfobs
• Supports wireless bidirectional keypads
• Internal GSM radio option
• Wi-Fi module option
• ILP5 Internet module option
• Programmable trigger output

Users
• 16 user codes.
• 4 authority leves: installer, master, estandard and coercion.
• Fast arming systems.
• 2 arming buttons.
• 4 arming levels: total, partial, instant y max.
• Chime door notification.

Comunication
• GSM radio – protocol supports AT&T and Rogers™ networks
• ADEMCO® Contact ID Reporting (four or ten digit account numbers)
• SIA Format Reporting
• Internet central station communication with L5100-WIFI or ILP5 module
• GSM cellular central station communication with internal GSM radio
• Selection for primary communication path when using dual paths
• Touch activated radio registration
• GSM radio signal strength display
• Two-way voice communication over POTS, IP/Wi-Fi or GSM
• Honeywell Total Connect ready

System Power
• Primary power: plug-in power supply, 110VAC to 9VDC, 2.7A output 300-04705V1 or 300-04065V1 (300-04063V1 in Canada)
• Four or 24-hour backup battery: rechargeable nickel-metal hydride battery pack rated at 7.2Vdc
• Operating temperature: 32°F – 122°F (0°C – 50°C)

Dimensions (approx) 6.1" H x 8.5" W x 1.8" D (15.5cm H x 21.6cm W x 4.6cm D)

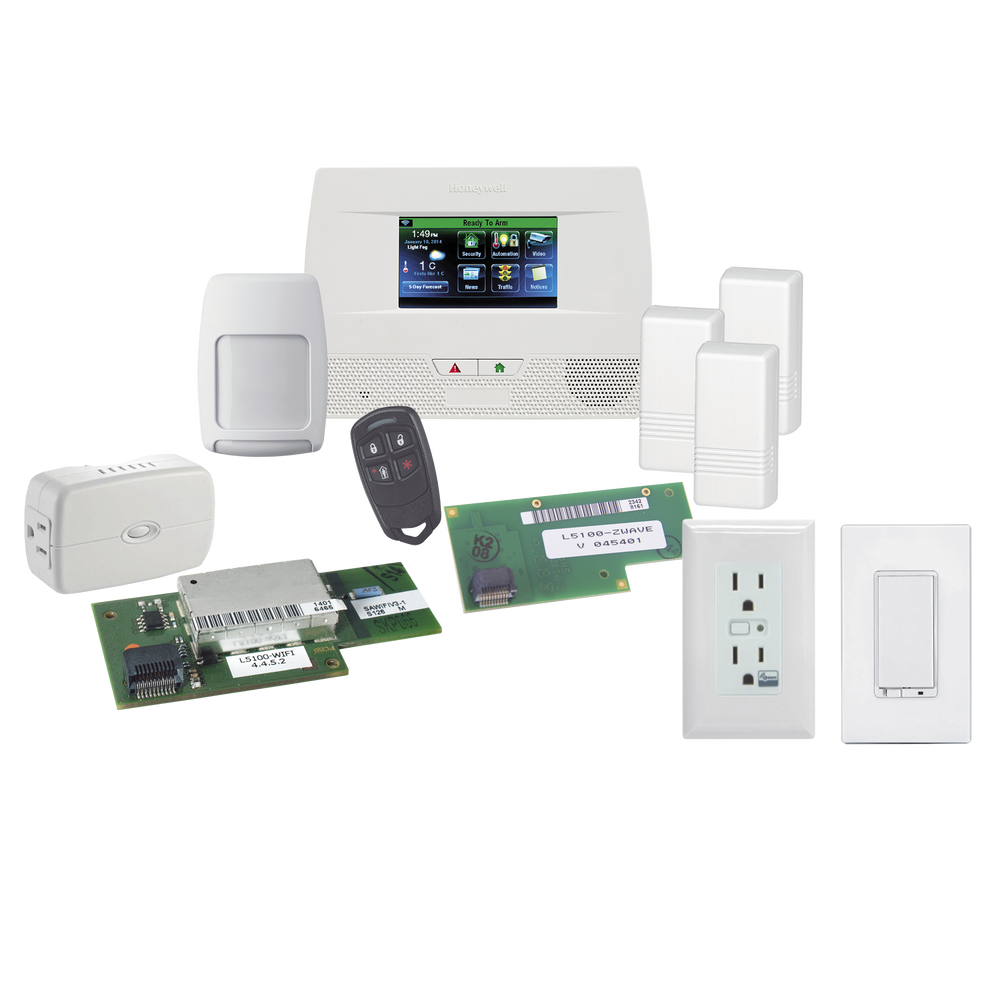

Includes:
» 3 5816 door/window transmitters.
» 1 wirelesss motion detector (5800PIR) inmune to pets.
» 1 5834-4 four button wireless key.
»1 Module for Z-Wave L5100ZWAVE
»1 Modulo Wifi L5100WIFI
»1 Smart Damper 45709
»1 Intelligent socket 45705
»1 socket adapter 45702

Services for Honeywell Total Connect™ require a contract, ask your sales executive or the SYSCOM engineering department.
