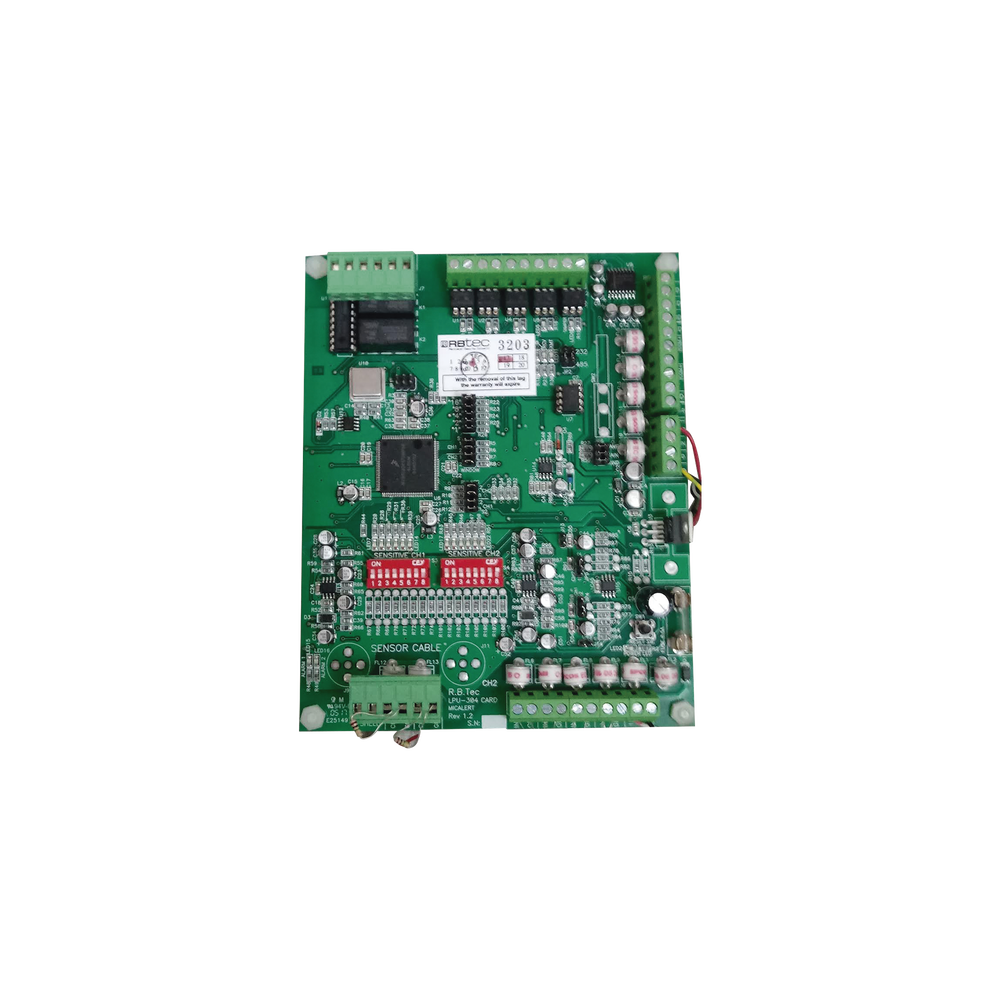

Unidad analizadora para 2 zonas / Cada zona de 305 metros / 2 Salidas de relevador

Analyzer unit up to 2 zones, each zone up to 1000 ft, with 2 relay outputs one for the alarm of each zone

Specifications

Single/Dual Zone Microcontroller Module (LPU-304).

• Operating Power Requirements: 12 – 24VDC  40mA @ 12VDC

• Lightening Protection: Gas Discharge Devices on all Inputs/Outputs & Communication line.
• Alarm Outputs: Intrusion and Line monitoring output for each zone. Dry contact relays with N.O. and N.C. contacts rated 1A @ 12VDC. Alarm transmission via RS-485 Protocol.

• Alarm Indicators:
  Power Status LED.
  Alarm Relay Status LED.
  Tamper Indication LED.

• Connector: F type Coax connection Sensor Cable Inputs for each zone.

• Enclosure: NEMA 4x, IP-66
  9.5" x 7.5" x 2.75” (24cm x 19.5cm x 7.0cm)
  Weight: 2.2 lbs (1Kg)

• Environment: Operating Temperature:  - 40°F to 176°F  (-40°C to 80°C)
  Relative Humidity up to 98% non-condensing.

• Sensor Cable & Accessories: Maximum length per zone: 1000ft (305m). Avaliable in spools of 250/500/1000ft (75/152/305m)
  Steel mash outer skin
  Diameter: 0.197” (5mm).
  Color: Silver
  UV resistant cable ties (610 per Zone)

• Options: VX-25: Weather Compensation Unit (for Multi-Zone Installation).
