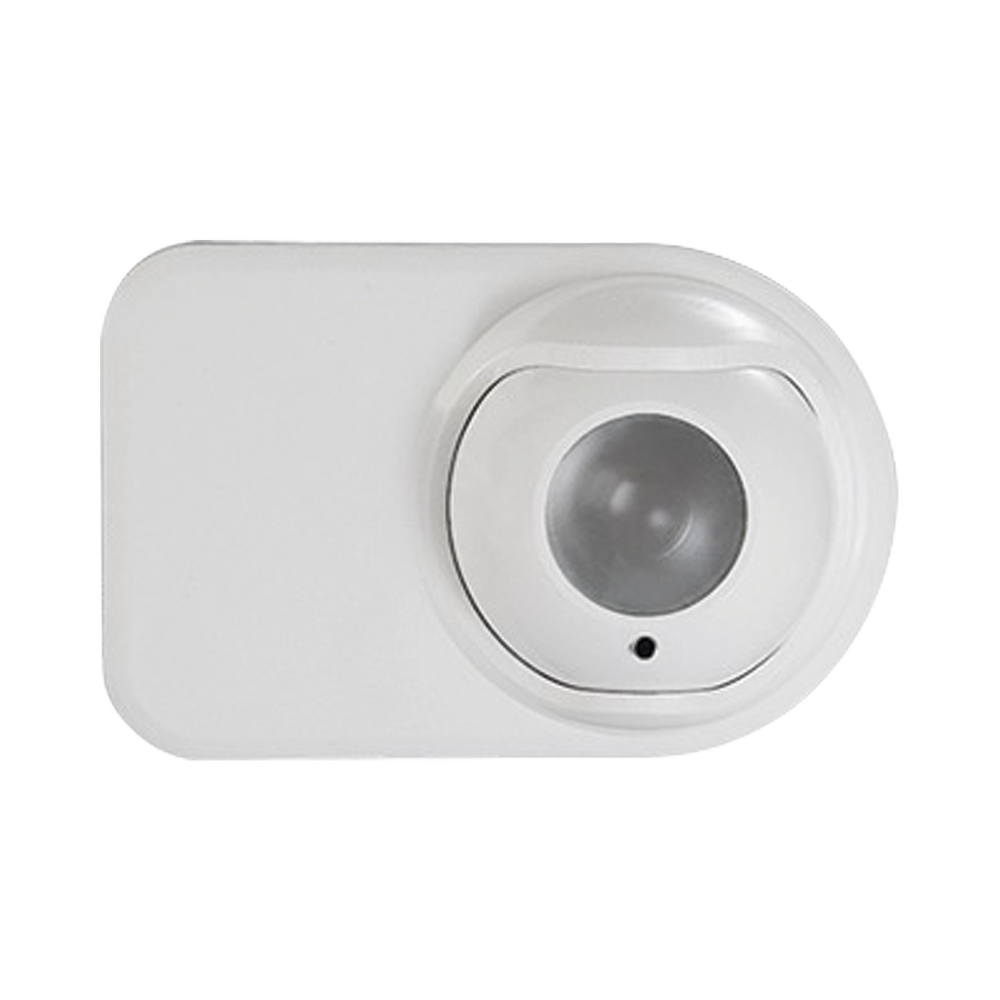

Analizador Emisor Óptico de Alta Potencia a Baterías, Requiere Analizador Receptor OSI-10, OSI-90 y Kit de Instalación OSID-INST (NO INCLUIDOS)

• Voltage Supply 24 to 30 VDC (24 VDC Nominal)
• Current Supply Imager Nominal: 8 mA (1 Emitter) – 10 mA                                        (7 Emitters) Peak: during training mode: 31 mA
• Supply Current Emitter Nominal: 350 uA (Std Power) 800 uA High                            Power Battery Version: Built-in 5 Year Battery
• Dimensions 7.8”W (198mm) x 5.1”H (130mm) x 3.7”D (96mm)
• Operating Temperature 14 - 131°F (-10 - 55°C)
• Maximum Humidity 10 – 95% RH (non-condensing)
• Alarm Threshold Levels Low – Highest sensitivity/earliest alarm: 20%                   (0.97 dB) Medium – Medium sensitivity: 35% (1.87 dB) High         – Lowest sensitivity / maximum immunity to nuisance smoke                  conditions: 50% (3.01 dB)
• Adjustment Angle 60°(horizontal), 15°(vertical)
• Maximum Misalignment Angle 2°
• Alarm Settings Alarm levels: Alert, Action, Fire 1 and Fire 2 Alarm                                      delays: 0 – 60 seconds
• IP Rating IP44 for Electronics IP66 for Optics Enclosure
• Status LEDs Fire Alarm (Red) Trouble/Power (Bi-color Yellow/Green)

DESCRIPTIONS:

The OSID optical smoke detection into open areas is the newest technology in lineal detection based in the use of light beam in two different wavelength and an optic receptor, what determines a quality of detection without unprecedented in this type of installations.

OSID provides a low cost solution, reliable, and easy to install that solves the typical problems of photoelectric detectors of smoke screen, as the incidence of false alarms and the difficulties of alignment.

Features

• Maximum detection range of  656 ft (recommended not to exceed 492 ft)

• Status LEDs for fire, breakdowns, and feeding

• Elevated immunity to false alarms

• 3 Levels of sensibility (Low, medium, and high)

• Elevated immunity to solid objects and dust

• Easy alignment with wide viewing angles and adjustment

• No need of a precise alignment

• Automatic configuration in less than 10 minutes

• Easy settings through switches Dipswitch

• Detection of smoke based in LED of longitud of dual wave

• Minimal requirements of maintenance

• Easy integration with the system against fires

• Power supply: 24 Vdc, 31 mA max.

• Operating temperature: -10 to 55 °C

• Dimensions: 198 x 130 x 96 mm
