Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Interior
Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Interior
Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Interior

Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Interior

$0.00
Marca:
Código del producto: RLS2020I
Disponibilidad: ¡Agotado!

Descripción del producto

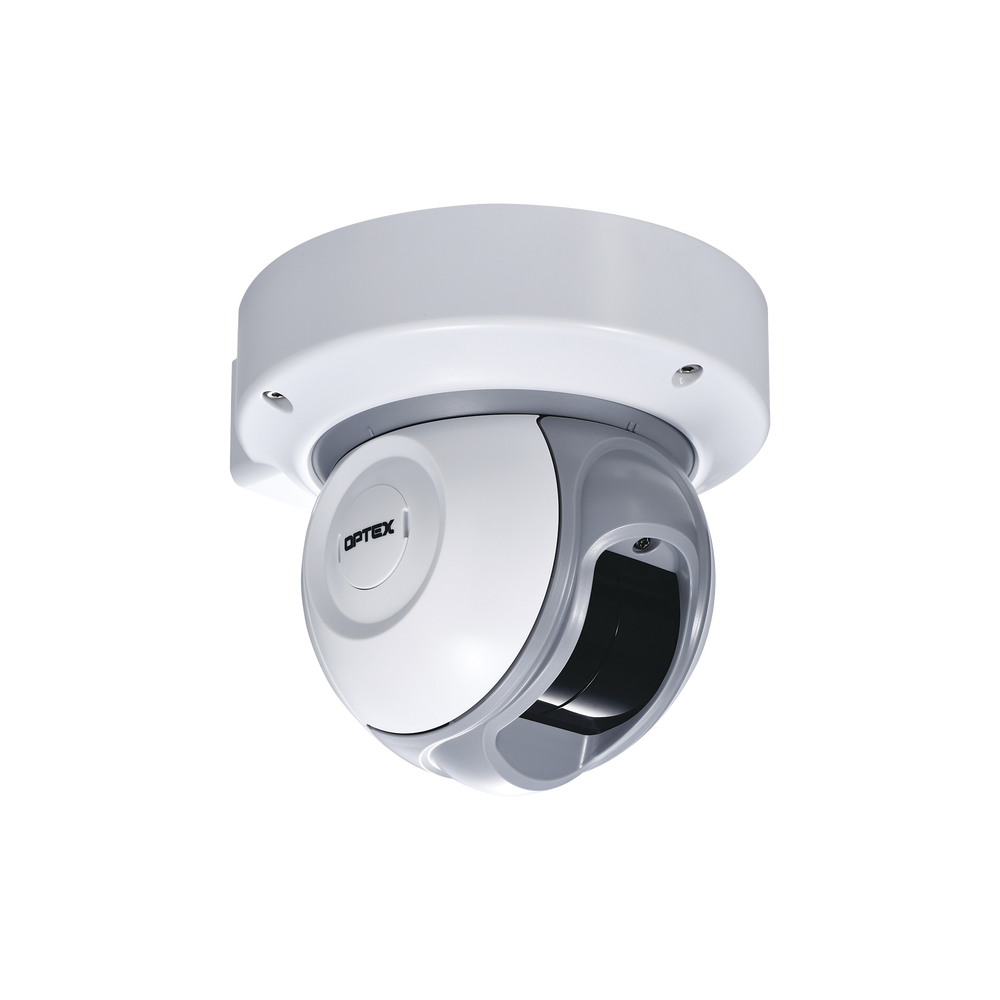

Redscan RLS-2020 series is a next generation short range laser scan detector that provides accurate motion detection for indoor security applications. It expands the current award-winning REDSCAN laser sensor product series with the same proven benefits of its ‘larger’ companions but is lighter, more compact and has a range of additional control and power features similar to those enjoyed by IP Dome cameras.

Innovative Compact Design-  Suitable for design-centric applications
Flexible Mounting Options- Its multi-angle adjustment and mounting options are scalable across a range of security applications providing flexibility and ease of installation
High Speed and Resolution Detection- Provides pin-point detection of small objects in indoor and outdoor applications complementing camera driven motion detection
Improved Utility Software- Streamlined for easy and flexible settings.  It also comes with multiple security detection modes for enhanced motion detection.  Can be used as an analog or IP device
IP Integrated-  Can be used asan analog or IP device.  It is PoE enabled requiring only 6 watts of power and can be integrated with popular VMS, NVR's and PSIM.
Elevate IP Video Surveillance and Detection-  Use the RLS-2020 to trigger cameras and motion based events that work in the dark and in tough lighting conditions challenging to video driven motion detection

 **LAC-1 Required tools for Proper Installation**
For Installation Training and Certification for this product, please email [email protected] with the following information:
  • First & Last Name
  • Job Title
  • Company Name
  • Phone Number
  • Email
  • Project Name
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
Installation locationIndoor
Detection metodInfrared Laser Scan
Laser protection classClass 1
Power input10.5 to 30 VDC, PoE (IEEE802.3 af/at compliant)
Current draw500 mA max. (12 VDC), 250 mA max. (24 VDC), 6W max. (PoE)
Mounting methodCeiling mount, Wall mount, Tripod mount, Pole mount (Option), Recess mount (Option)
Detection area20 x 20 m, (approx. 65 x 65 ft.), 95 degrees
Detection rangeRadius 21m (approx. 68 ft.) at 10% reflectivity
Detection resolution/Response time0.25 degrees / within 25 msec to 1 minute
 0.125 degrees / within 100 msec to 1 minute (Indoor high resolution mode)
Mounting height(Vertical mode)Indoor: 2 m (6.7 ft.) or higher
Communication portEthernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation)
ProtocolUDP, TCP/IP (Redwall Event Code), Http (Web setting), SNMP
Output3 outputs, 28 VDC 0.2A max. N.O./N.C. Selectable
 (3 from Master alarm, Zone outputs, Trouble, Tamper.)
Alarm periodApprox. 2 sec delay timer
Operating temperature-40 to 50 C degrees (-40 to 122 F degrees)
Dimensions (HxWxD)146 x 160 x 160 mm (5.8 x 6.3 x 6.3 inch)
Weight1.0 kg (2.2 lb)
