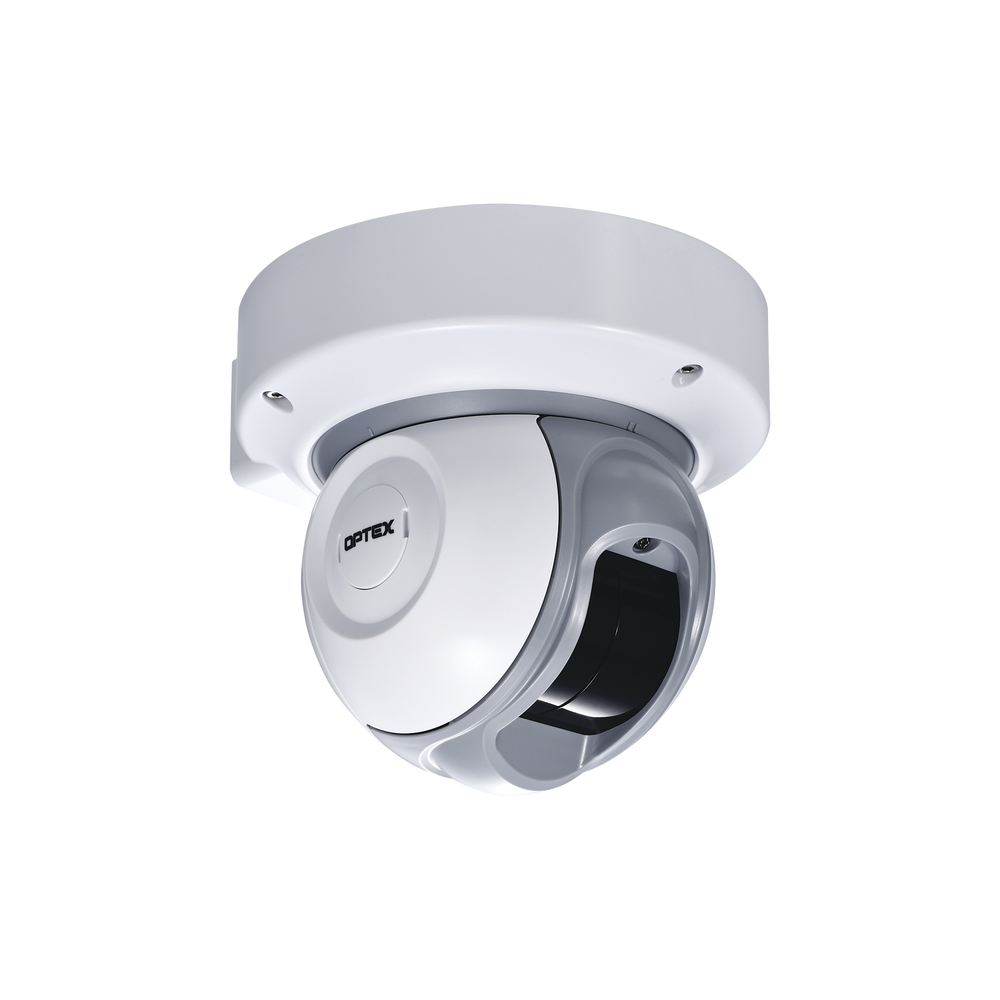

Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Exterior
Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Exterior
Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Exterior

Detector de Escaneo Láser / 20 metros de radio con una área de detección de 95 ° / Uso en Exterior

$0.00
Marca:
Código del producto: RLS2020S
Disponibilidad: ¡Agotado!

Descripción del producto

Redscan RLS-2020 series is a next generation short range laser scan detector that provides accurate motion detection for indoor security applications. It expands the current award-winning REDSCAN laser sensor product series with the same proven benefits of its ‘larger’ companions but is lighter, more compact and has a range of additional control and power features similar to those enjoyed by IP Dome cameras.

Innovative Compact Design-  Suitable for design-centric applications
Flexible Mounting Options- Its multi-angle adjustment and mounting options are scalable across a range of security applications providing flexibility and ease of installation
High Speed and Resolution Detection- Provides pin-point detection of small objects in indoor and outdoor applications complementing camera driven motion detection
Improved Utility Software- Streamlined for easy and flexible settings.  It also comes with multiple security detection modes for enhanced motion detection.  Can be used as an analog or IP device
IP Integrated-  Can be used asan analog or IP device.  It is PoE enabled requiring only 6 watts of power and can be integrated with popular VMS, NVR's and PSIM.
Elevate IP Video Surveillance and Detection-  Use the RLS-2020 to trigger cameras and motion based events that work in the dark and in tough lighting conditions challenging to video driven motion detection

 **LAC-1 Required tools for Proper Installation**
For Installation Training and Certification for this product, please email [email protected] with the following information:
  • First & Last Name
  • Job Title
  • Company Name
  • Phone Number
  • Email
  • Project Name
Optex will send invite to online training for each technician provided (training is free, no limit on number of people getting trained)
ModelRLS-2020S
Installation locationIndoor/Outdoor
Detection metodInfrared Laser Scan
Laser protection classClass 1
Power input10.5 to 30 VDC, PoE (IEEE802.3 af/at compliant)
Current draw500 mA max. (12 VDC), 250 mA max. (24 VDC), 6W max. (PoE)
Mounting methodCeiling mount, Wall mount, Tripod mount, Pole mount (Option), Recess mount (Option)
Detection area20 x 20 m, (approx. 65 x 65 ft.), 95 degrees
Detection rangeRadius 1 to 21m (approx. 3.3 to 68 ft.) at 10% reflectivity
Detection resolution/Response time0.25 degree / within 75msec to 1 minutes (for indoor mode and outdoor mode)
0.25 degree / within 25msec (for indoor throw-in mode),
0.125 degree / within 100msec to 1 minutes (for Indoor high resolution mode)
Mounting height(Vertical mode)Indoor: 2 m (6.7 ft.) or higher
Outdoor: 4 m (13 ft.) or higher (Recommended)
Communication portEthernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation)
ProtocolUDP, TCP/IP (Redwall Event Code), Http (Web setting), SNMP
Output3 outputs, 28 VDC 0.2A max. N.O./N.C. Selectable
(3 from Master alarm, Zone outputs, Trouble, Tamper, D.Q.)
Input1 Non-voltage contact input
Alarm periodApprox. 2 sec delay timer
Operating temperature-40 to 60 C degrees (-40 to 140 F degrees)
IP ratingIP66
Dimensions (HxWxD)146 x 160 x 160 mm (5.8 x 6.3 x 6.3 inch)
Weight1.0 kg (2.2 lb)
