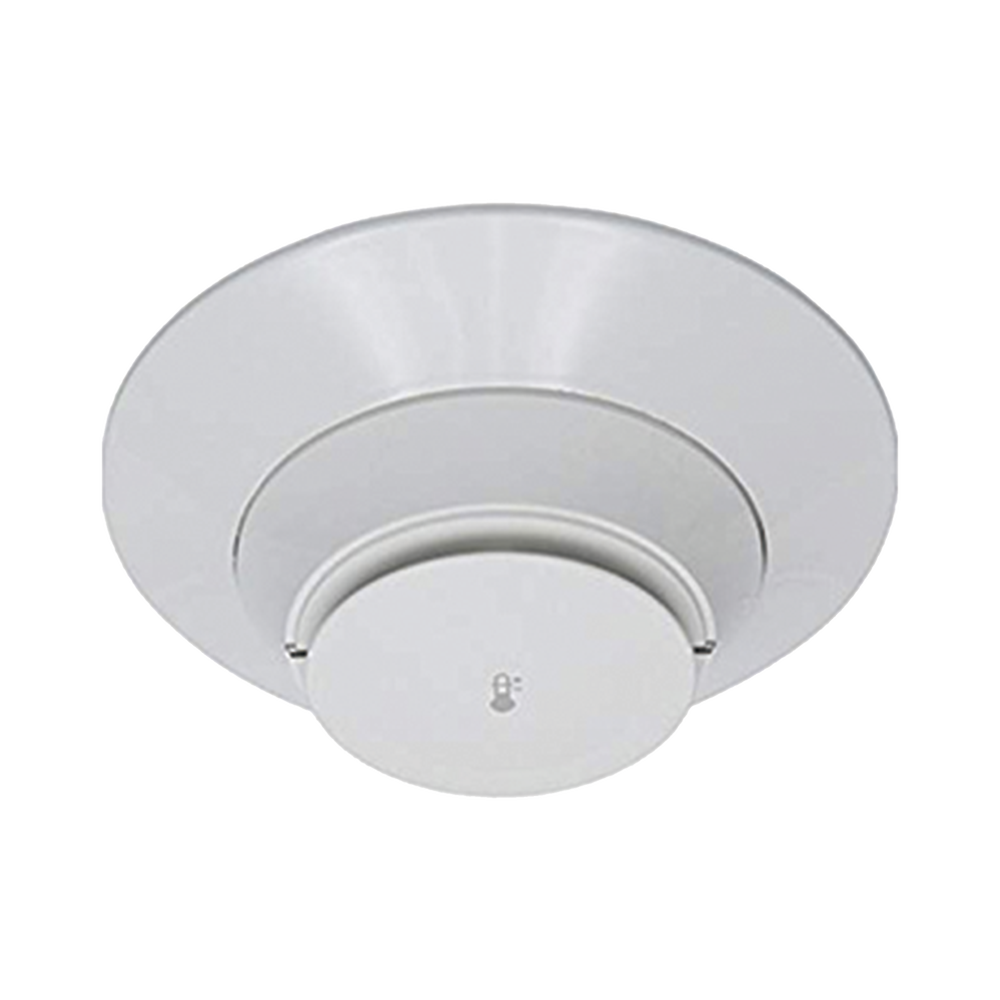

Addressable Fixed and Rate-of-Rise Thermal Detector

The series includes 135 ° F / 57 ° C fixed temperature, rise rate and 180 ° F / 88 ° C fixed, high temperature detectors and are direct replacements for the heat of the SK-HEAT series detectors The ID address Point, configured by rotary decimal switches, provides a specific specific detector. These thermal detectors provide effective and intelligent property protection in a variety of applications.

PHYSICAL / ENVIRONMENT

Size: 2.0 "(5.3 cm) tall; the base determines diameter

-B300-6: 6.1 "(15.6 cm) in diameter

-B501: 4 "(10.2 cm) in diameter

For a complete list of detector bases, see SK-61045.

Operating temperature range: SK-HEAT-W,

SK-HEAT-ROR-W: -4 ° F to 100 ° F (-20 ° C to 38 ° C)

SK-HEAT-HT-W: -4 ° F to 150 ° F (-20 ° C to 66 ° C)

Detector spacing: UL approved for 50 feet.

(15.24 m) from center to center; FM approved for 25 x 25 ft (7.62 x 7.62 m) spacing

Relative humidity: 10% - 93% without condensation

Thermal ratings: fixed temperature set point 135 ° F (57 ° C), increase rate detection 15 ° F (8.3 ° C) per minute, high temperature Heat 190 ° F (88 ° C)

ELECTRIC SPECIFICATIONS

Voltage range: DC peak 15 to 32 volts

Standby current (max. Average): 200uA @ 24

VDC (one communication every 5 seconds

with LED enabled)

LED current (max.): 4.5 mA at 24 V DC ("ON")
