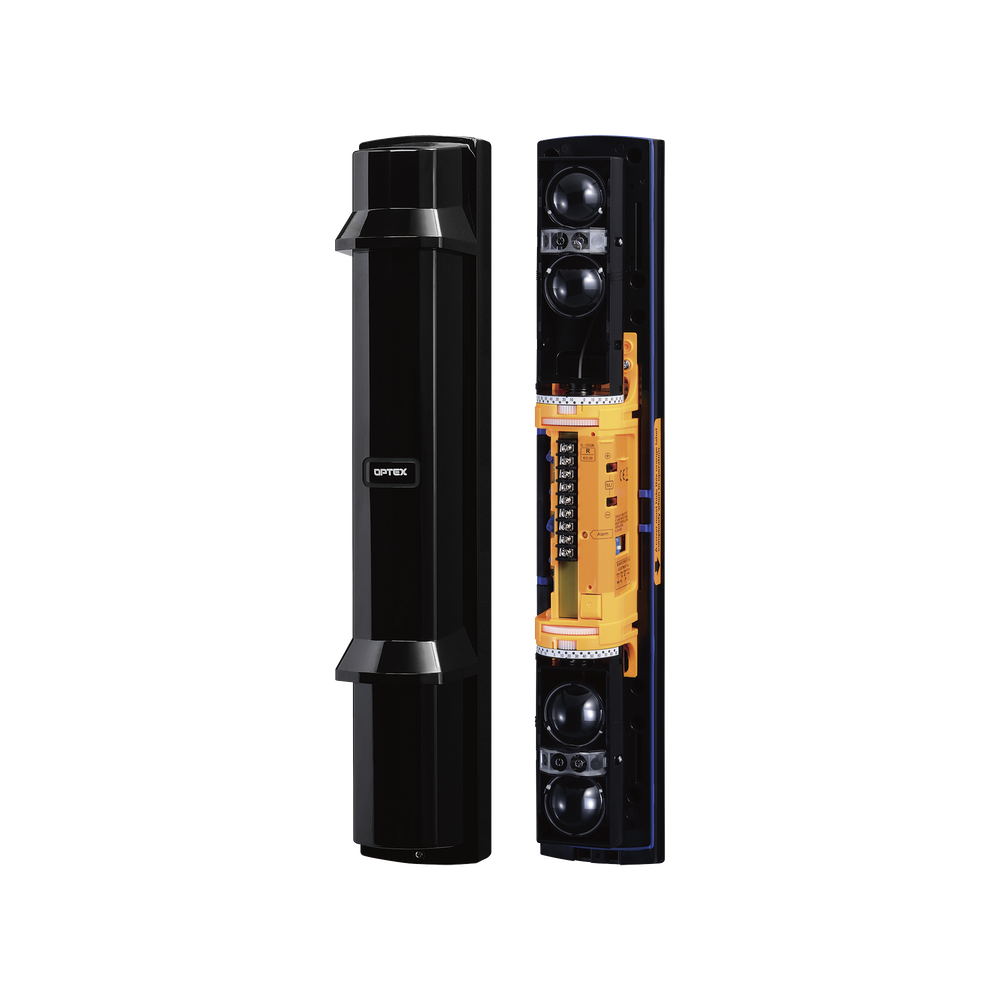

Barrera fotoelectrica de 60 metros cuatro haces de luz con Sniper viewfinder
Barrera fotoelectrica de 60 metros cuatro haces de luz con Sniper viewfinder

Barrera fotoelectrica de 60 metros cuatro haces de luz con Sniper viewfinder

$0.00
Marca:
Código del producto: SL200QN
Disponibilidad: ¡Agotado!

Descripción del producto

The new SL-200QN includes even more features to protect against false and missed alarms caused by mis-alignment and environmental issues. With 200ft. of outdoor detection range,  the QN model is perfect for mid level security perimeter applications. New features include:

Quad beam - Dramatically cuts down on false alarms caused by birds and falling leaves

Sniper ViewFinder and aligmnet dial - The new telescope lens on the SL Series has a high level of visibility for optical alignment work. Even at 200ft., a perfect installation and stable performance can be achieved in minimal time.

BAU-4 Compatible - The BAU-4 beam alignment unit automatically and accurately adjusts the optical access. This allows peak performance and gives one technician the ability to align a 200ft to 650ft SL detector with only one tech.


Maximum detection range60m / 200ft.
Maximum arrival distance600m / 2000ft.
Detection methodQuad infrared beam interruption detection
Interruption timeVariable between 50/100/250/500 ms (4 steps)
Power source10.5 - 30VDC
Current draw38mA (Transmitter:8mA Receiver:30mA)
OutputAlarm output
Alarm period2sec (±1) (Nominal)
Tamper outputN.C. (contact output) : 30VDC, 0.1A Opens when cover removed.
Operating temperature-25°C - +60°C (-13°F - 140°F)
Operating humidity95% (max.)
Alignment angle±90° Horizontal, ±10° Vertical
DimensionH x W x D mm (inch) : 448(17.6) x 79(3.1) x 96(3.8)
Weight2400g(84.7oz) (Total weight of Transmitter + Receiver, excluding accessories)
International protectionIP65
