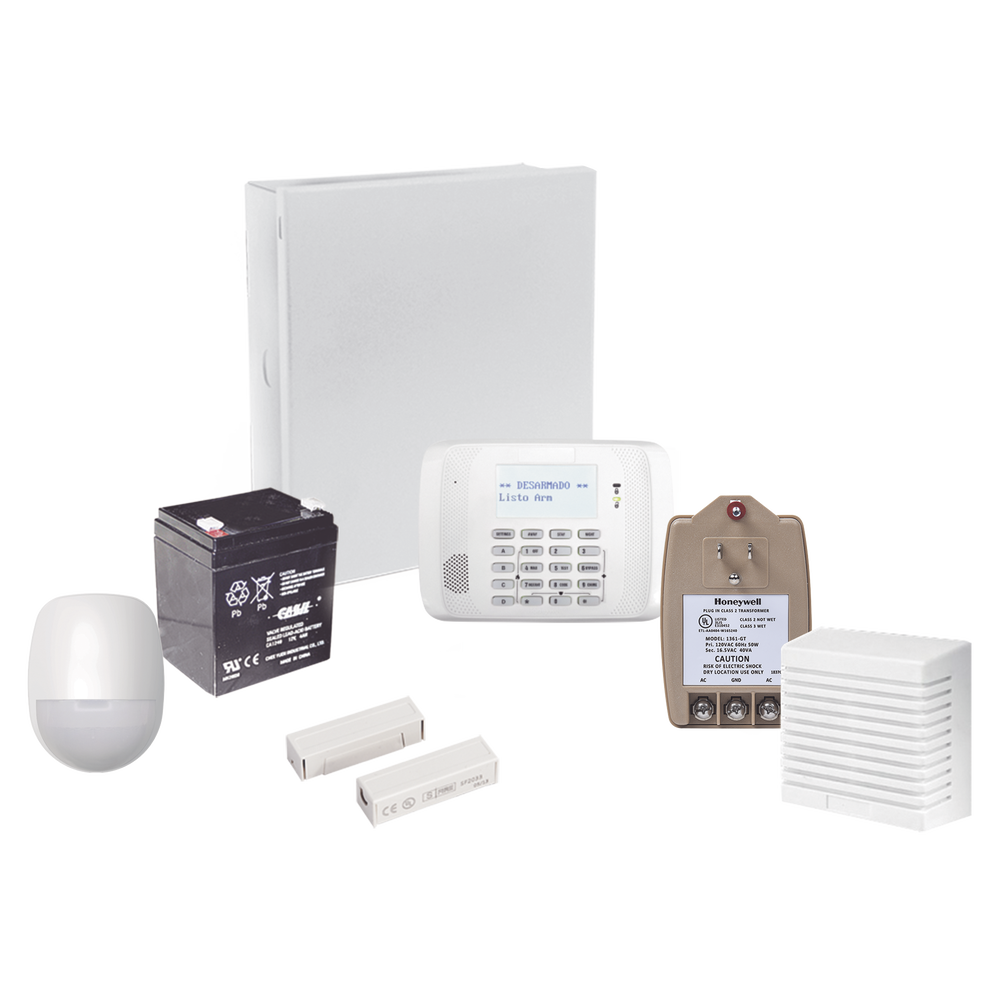

Sistema de Alarma Cableado con Sensores de Movimiento, Contactos de Puerta o Ventana y Sirena

.Alarm panel for residential, business or office applications.

System:
• Programming by alphanumeric keypad, software Downloading
• Max. 8 keypads, supports alphanumeric keypads, icons and touch-sensitive; 2 max. (auxiliary power supply is suggested)
• Entry time defined by installer
• 2 programmable zones of entry and exit with different times
• Automatization functions
• Self-armed and unarmed function
• 4204 relay modules supported, 4 maximum
• 250 events in memory (The memory can read the COMPASS Downloading software)
• 3 partitions with an option to set up as the lobby
• Arm and disarm confirmation
• Auto partial configure
• Siren output of 2 A
• 2 programmable voltage outputs
• Telephone line cut detection
• Auxiliary current of 600 mA
• Power supply input of 16 Vac

Zones:
• 8 programmable zones, configurable with or without end line resistance
• The zones can be configurable to fast or slow answer
• Zone duplication capacity
• In zone 1, supports up to 2 wire 16 smoke detectors
• 4 wire smoke detectors supported
• 40 wireless zones supported adding the Honeywell 5800 receiver
• 24 types of configurable zones
• 16 additional zones for portable controllers
• Supports the expander module of wired zones 4219 and 4229
• Supervision of a wireless system to a 100%
• Range of up to 60 min the 5800 wireless series

Users:
• 48 user codes
• 6 levels of authority: installer, master, standard, guest, only arm, and coercion
• Fast arm system
• 5 arm levels: total, partial, night, instantaneous, and maximum
• Door open alert (CHIME)

Communication:
• Build-in communicator for communication with the Central Receiver of Alarms
• Supports the formats of communication in 4+2 and CONTACT/ID
• Supports option of dual and divided report
• Compatible with the communication system of Third Generation 3i
Request your VISTA Panel 48 with “S” termination with a smaller enclosure
