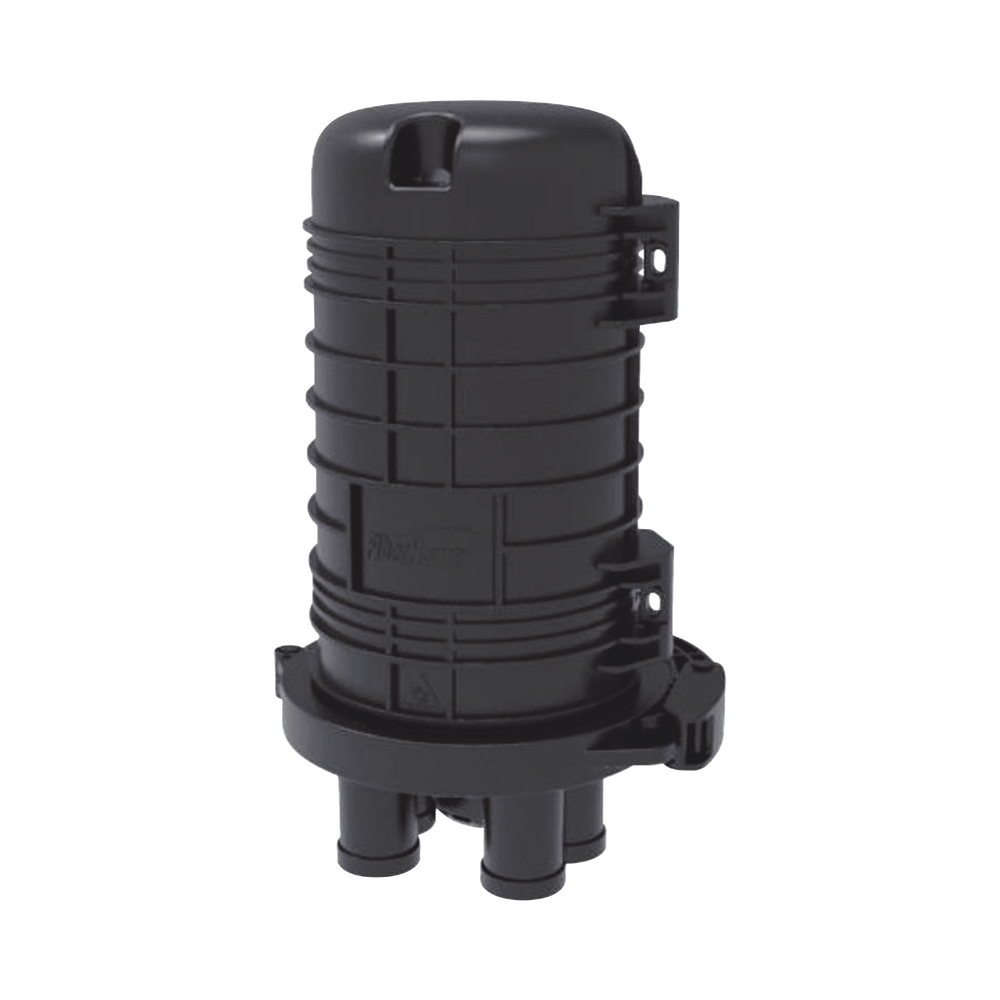

Caja de Distribución de Fibra Óptica Vertical tipo Domo, hasta 48 empalmes, Exterior, IP68

FOSC-220J series are dome-base closure with mechanical sealing, which are designed for all cable application environments such as duct, aerial, buried and man-hole. FOSC supports numerous functions as mid-span, branch and direct splice. Accommodated with flexible splice trays and varies accessories are available for many scenarios. Rigorous tests are performed to approve the best quality for network reliability.

Features:

• Dome-base design structure with mechanical sealing
• High strength modified polypropylene material
• Mid span operation without cutting the cable
• Flexible grommets for universal standardized cables
• Splice trays for all fiber construction types
• Splitter without connector could be configured inside (Not included)
• Easy for re-entry and re-open
• Ideal fiber management design
• Protection level: IP68

Application:

• Outdoor application
• Duct, aerial, buried and man-hole (Includes accessories just for aerial mounting)

Specification:

• Dimension (mm): Φ 220 x 360
• Temperature range (°C): -40 ~ +65
• 4 trays for 12 fibers each one (48 in total)

Includes:

• 48 pcs Splicing heat-shrinking protective sleeve  (40 mm)
• 20 pcs Nylon tie (3*120mm)
• Bare fiber protective sleeve (2 m)
• 4 pcs Branch clamp nut
• 1 pcs Branch nut wrench
• Allen wrench
• 1 pcs Oval seal ring -A Φ 10-14 mm
• 4 pcs Round seal ring -A Φ 10-14 mm
• 2 pcs Round seal ring -D Φ 5-7 mm
• Insulation tape (3m)
• 1 set of Line-mounting accessory
• 1 set of Cable-mounting accessory
