Kit Pararrayo  LINKEDPRO con Accesorios de Instalación en Torre de Hasta 3 m de Altura.
Kit Pararrayo  LINKEDPRO con Accesorios de Instalación en Torre de Hasta 3 m de Altura.

Kit Pararrayo LINKEDPRO con Accesorios de Instalación en Torre de Hasta 3 m de Altura.

$0.00
Marca:
Código del producto: KLP-TZ03-PRO
Disponibilidad: ¡Agotado!

Descripción del producto



Climate change is one of the main causes of the increase in storm activity and lightning strikes, and therefore of the appearance of so many accidents in facilities not protected against atmospheric discharges.



Description:

ELECTRODE:

Manufactured with copper with electrolytic treatment to obtain higher conductivity, low resistance and durability in aggressive terrain. Due to its delta-shaped design, it obtains a greater contact area with the ground and thus to be able to efficiently dissipate parasitic currents. Equipotential filter which has the property of damping low frequencies, minimizing noise, preventing the passage of return currents and equipotentially bonding natural electrodes, as well as prefabricated on site. Soil reactivating compound which is composed of conductive minerals to lower soil resistivity and improve the performance of the grounding system.

LIGHTNING ROD:

Made of aluminum. Provides protection VS direct lightning strikes to surfaces or structures. It provides a safe point of impact, as the toroidal exciter coil and equipotential ring create an ionization effect (corona) which will provide an attractive point for lightning strike. This tip connected to the down conductor will provide a safe path to the SEPTE grounding electrode to drain the lightning current. It has an approximate coverage radius of 72 degrees.



Applications:

The grounding system is the essential part of any electrical installation, and its objective is:

  • Provide security to people.
  • Protect infrastructure, electrical and electronic equipment.
  • Protect installations.
  • Guarantee the operation of this protection.
  • Stabilize the voltage.
  • Dissipate the lightning current.
  • Limit transient overvoltages. (Voltage Peaks).
  • Drain static charges that the metallic masses present with respect to the ground.



Standards:

It complies with telecommunications standards, as well as official Mexican standards.

  • EIA/TIA J-STD-607-A y BICSI
  • NOM-022-STPS-2012
  • NOM-022-STPS-2015
  • NMX-J-549-ANCE-2005

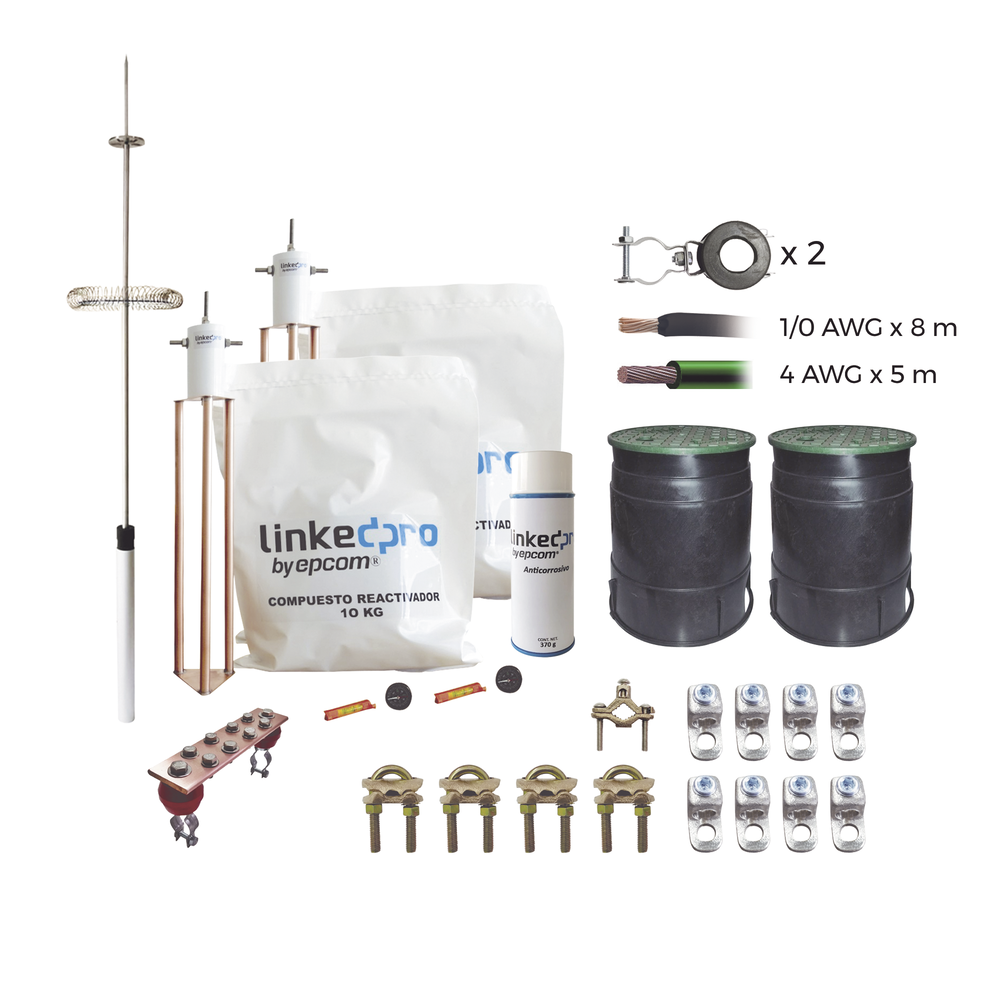

Includes the following components:

LIGHTNING ROD PROTECTION SYSTEM
Qty.UModelDescription
1Pc.LP-DIPOLO-ALUAluminum Crown Dipole Lightning Rod Tip
1Pc.LP-GROUND-30A30 A Electrode with Filter and Compound Bag
3Pcs.LP-CB-201/2'' Terminal Connectors to Cables, Gauge 4 to 1/0 (AWG).
2Pcs.LP-CV-205/8'' Rod Connector to 4 Gauge Cable (Four) to 3/0 (Triple Zero)

1Pc.LP-REGISTRO-7Round Valve Box 7"
1Pc.LP-ANTICORROSIVOAntioxidant protective spray for electrical connections.
2Pcs.LP-AISLADOR-UNIInsulator for Bare Cable Grounding Systems in STZ30 and STZ30G Towers
8mSLY343-BLKTHW-LS Coated Copper Wire Gauge 1/0 AWG, Color Black (1 METER)
PHYSICAL GROUND SYSTEM FOR EQUIPMENT AND STRUCTURES LANDING
Qty.UModelDescription
1Pc.LP-GROUND-30A30 A Electrode with Filter and Compound Bag
5Pcs.LP-CB-201/2'' Terminal Connectors to Cables, Gauge 4 to 1/0 (AWG).
2Pcs.LP-CV-205/8'' Rod Connector to 4 Gauge Cable (Four) to 3/0 (Triple Zero)
1Pc.LP-REGISTRO-7Round Valve Box 7"
1Pc.LP-CTZ-1145/8'' Rod Connector to 4 Gauge Cable (Four) to 3/0 (Triple Zero)
1Pc.LP-BU-TZ Grounding cooper bar. Pipe installation.
5mSLY287-GRNCoated Copper Wire THW-LS Gauge 4 AWG 19 Wires Green Color
