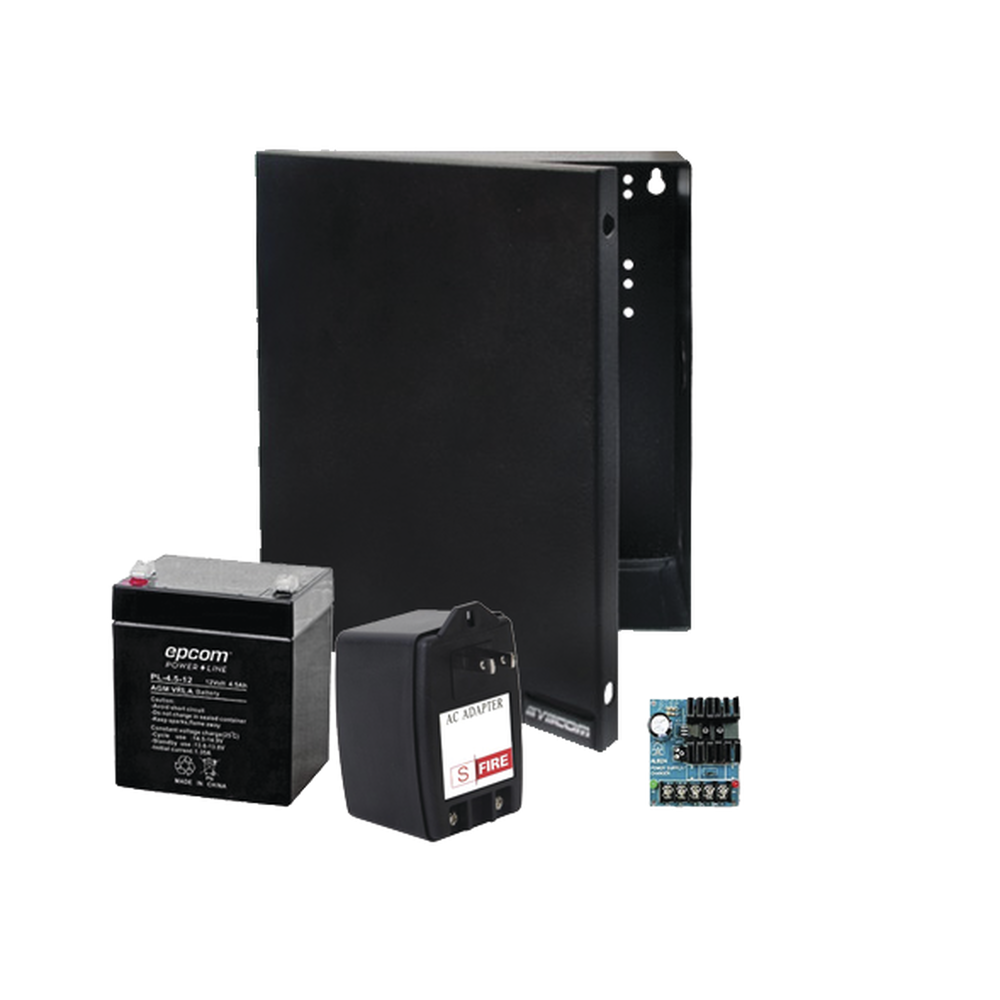

Kit with ALTRONIX Power Supply with 12 Vdc, to 0.75 Amper output, includes transformer and 4.5 Amper Battery

POWER SUPPLY KIT (AL624) WITH PS1640 TRANSFORMER AND BACKUP BATTERY PL4.512

This kit is recommended for CCTV and ACCESS CONTROL applications

Kit includes:

1 AL624 Card

• Power output of 6 VDC, 12 VDC or 24 VDC, selectable.
• Current from 1.2 Amp @ 6 Vdc or 12 Vdc, or 0.75 A @ 24 Vdc.
• 16 VA power input of 40 VA, 24 VAC of 20 VA or 40 VA (not included).
• Built-in battery charger with maximum output at 10 Ah.
• LED's AC and DC indicators.

1 Transformer PS1640

• Primary Feed: 120 Vac
• Secondary feeding: 16.5 Vac, 40 VA
• Maximum current: 2.4 A
• PTC fuse interconstructed.
• Earth system for greater protection.
• Led status indicator.

1 Battery PL4.512

• High performance batteries.
• Designed for high reliability applications.
• Manufactured to the highest quality standards.
• Tested 24hr / 7 days without diminishing performance.
• Capacity in Ah: 4.5.
• Voltage (Vcd): 12.
• Type: AGM / VRLA.
• Width: 2.75" (70 mm).
• Height: 4.21" (107 mm).
• Depth: 3.54" (90 mm).
• Weight: 3.17 lb (1.44 kg).

1 Cabinet GOF-01-XT

• Foil clearance: 20.
• Color: Black.
• Application: Interior.
• Dimensions: 8.70 x 7.51 x 3.26" (221 x 191 x 83 mm) (Width x Height x Depth).
• Weight: 1.32 lb (600 g).

1 Kit KITRS6

• Kit of 4 Pillars for AL624 card
