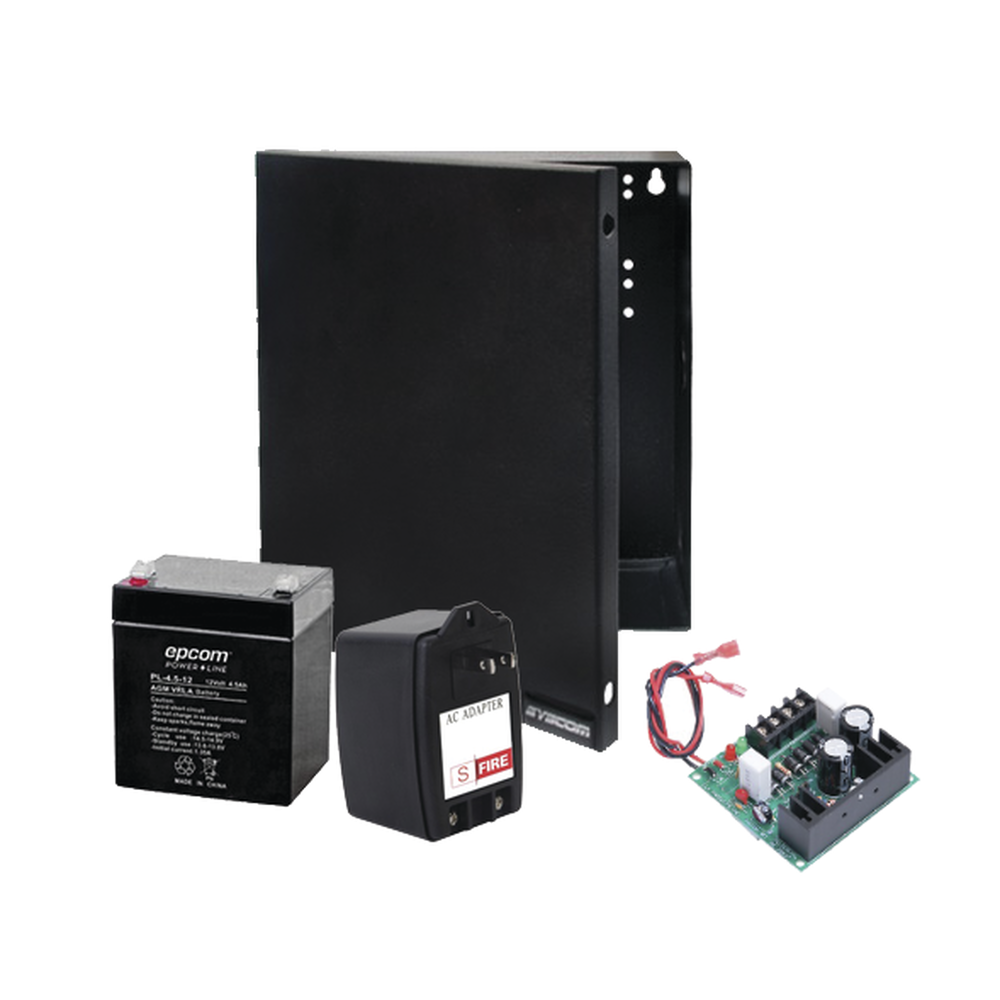

Power Supply Kit ELK Products with output of 12 Vcd to 0.80 Amper, with Transformer and Backup Battery of 4.5 Amper

POWER SUPPLY KIT (ELKP624) WITH PS1640 TRANSFORMER AND BACKUP BATTERY PL4.512

This kit is recommended for CCTV and ACCESS CONTROL applications

Kit includes:

1 ELKP624 Card

• Requires 16 VAC input transformer at 24 Vac
• Output, 12 VDC, to 1.0 Amper
• Electronically filtered and regulated outputs
• Protection against overvoltage and short circuit.
• Dimensions: 3.0 x 3.0" (76.2 x 76.2 mm)
• Weight: 0.11 lb (50 g).

1 Transformer PS1640

• Primary Feed: 120 Vac
• Secondary feeding: 16.5 Vac, 40 VA
• Maximum current: 2.4 A
• PTC fuse interconstructed.
• Earth system for greater protection.
• Led status indicator.
• 1 Battery PL4.512
• High performance batteries.
• Designed for high reliability applications.
• Manufactured to the highest quality standards.
• Tested 24hr / 7 days without diminishing performance.
• Capacity in Ah: 4.5.
• Voltage (Vcd): 12.
• Type: AGM / VRLA.
• Width: 2.75" (70 mm).
• Height: 4.21" (107 mm).
• Depth: 3.54" (90 mm).
• Weight: 3.17 lb (1.44 kg).

1 Cabinet GOF-01-XT

• Plate Gauge: 20.
• Beige color.
• Application: Interior.
• Dimensions: 8.70 x 7.51 x 3.26" (221 x 191 x 83 mm) (Width x Height x Depth).
• Weight: 1.32 lb (600 g).

1 Kit KITRS6

• Kit of 4 Pillars for ELKP624 card
