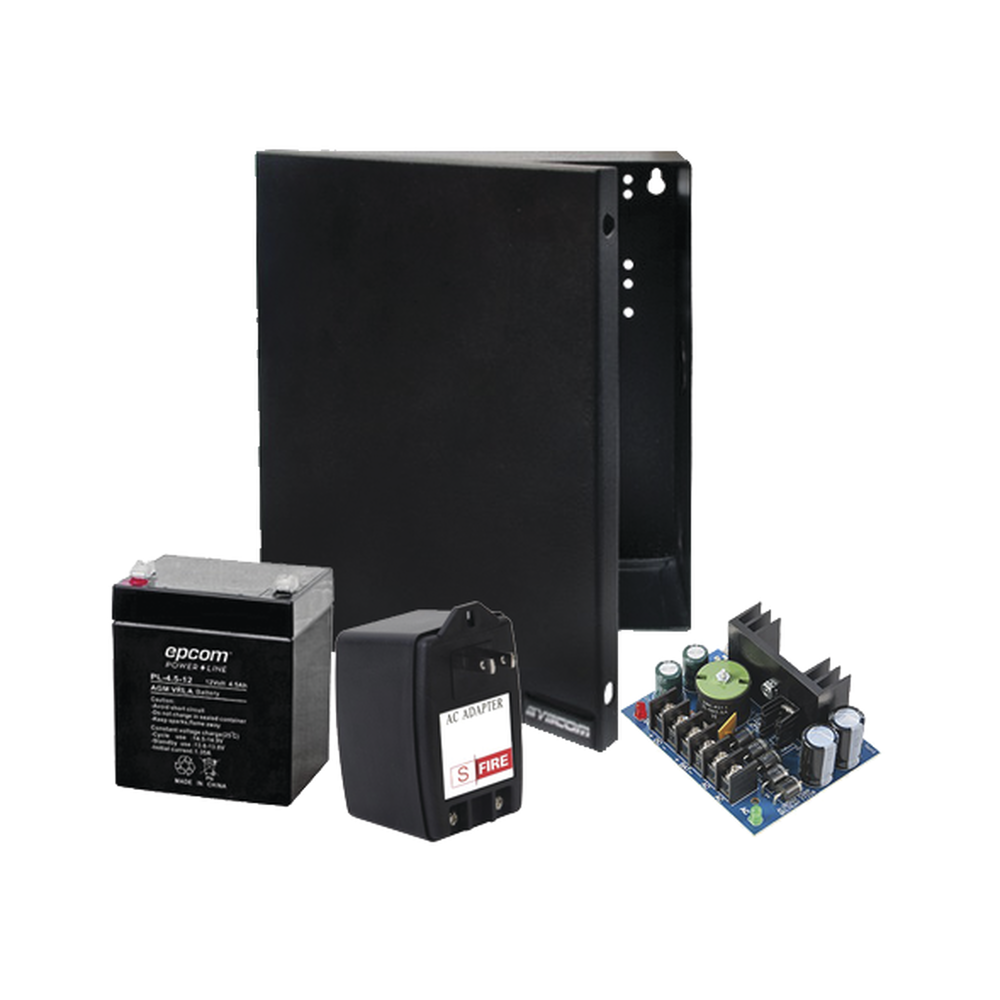

Kit with power supply ALTRONIX of 12 Vcd to 4 Amper, includes transformer and battery of 4.5 Amper

POWER SUPPLY KIT (SMP5) WITH PS1640 TRANSFORMER AND BACKUP BATTERY PL4.512

This kit is recommended for CCTV and ACCESS CONTROL applications

Kit includes:

1 SMP5 Card

• Requires 16 VAC input transformer at 24 Vac
• Output , 12 Vdc, at 4 Amper
• Electronically filtered and regulated outputs
• Protection against overvoltage and short circuit.
• Dimensions: 3.0 x 3.5 x 2.0" (76.2 x 88.9 x 50.8 mm)
• Weight: 0.34 lb (158 ​​g).

1 Transformer PS1640

• Primary Feed: 120 Vac
• Secondary feeding: 16.5 Vac, 40 VA
• Maximum current: 2.4 A
• PTC fuse interconstructed.
• Earth system for greater protection.
• Led status indicator.
• 1 Battery PL4.512
• High performance batteries.
• Designed for high reliability applications.
• Manufactured to the highest quality standards.
• Tested 24hr / 7 days without diminishing performance.
• Capacity in Ah: 4.5.
• Voltage (Vcd): 12.
• Type: AGM / VRLA.
• Width: 2.75" (70mm).
• Height: 4.21" (107mm).
• Depth:  3.54" (90mm).
• Weight: 3.17 lb (1.44 kg).
• 1 Cabinet GOF-01-XT
• Plate Gauge: 20.
• Black color.
• Application: Interior.
• Dimensions: 8.70 x 7.51 x 3.26" (221 x 191 x 83 mm) (Width x Height x Depth).
• Weight: 1.32 lb (600 g).

1 Kit KITRS6

• Kit of 4 Pillars for SMP5 card
