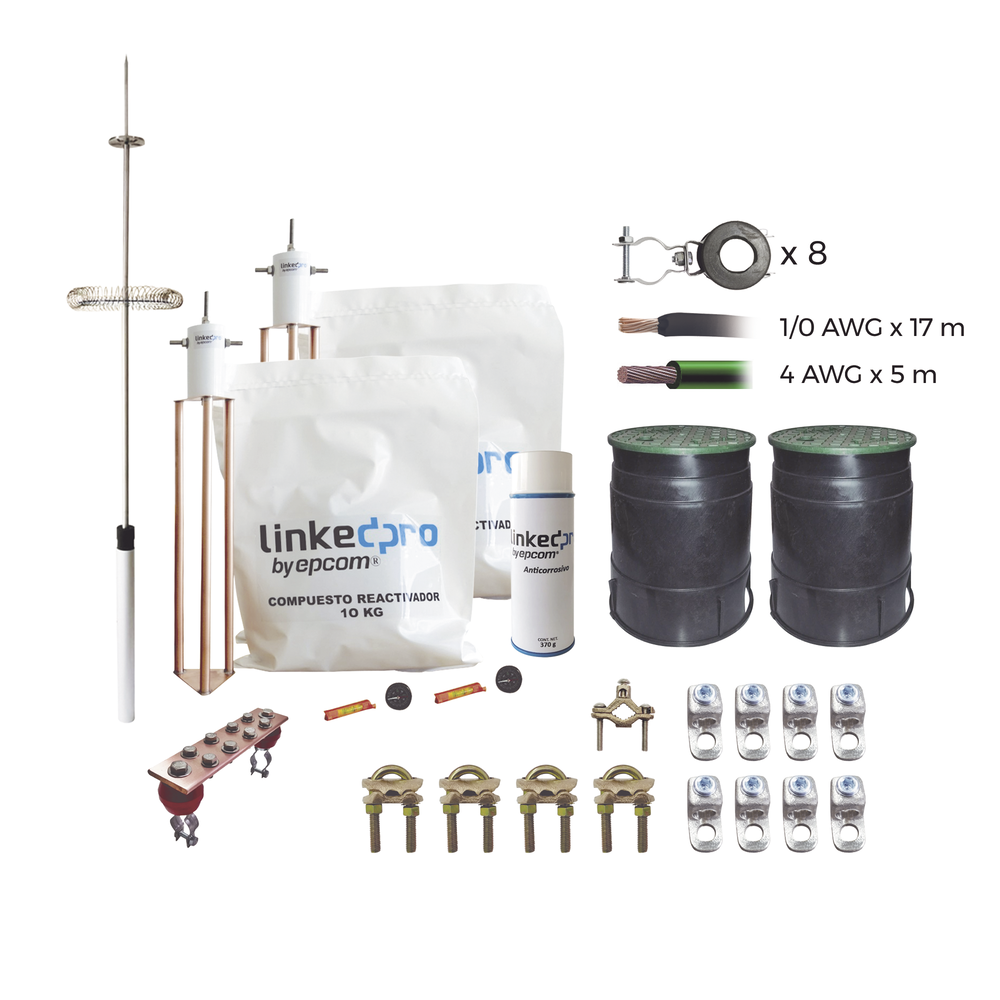

Kit Pararrayo LINKEDPRO con Accesorios de Instalación en Torre de Hasta 12 m de Altura.
Descripción del producto
Climate change is one of the main causes of the increase in storm activity and lightning strikes, and therefore of the appearance of so many accidents in facilities not protected against atmospheric discharges.
Description:
Electrode:
Manufactured in copper with electrolytic treatment to obtain higher conductivity, low resistance, and durability in aggressive terrain.
Due to its delta-shaped design, it obtains a greater contact area with the ground and thus be able to efficiently dissipate parasitic currents.
Equipotential filter which has the property of damping low frequencies, minimizing noise, preventing the passage of return currents, and equipotential bonding natural electrodes, as well as prefabricated on site.
Soil reactivating compound which is composed of conductive minerals to lowers soil resistivity and improves the performance of the grounding system.
Lightning rod:
Manufactured in aluminum.
Provides protection VS direct lightning strikes to surfaces or structures.
It provides a safe point of impact, as the toroidal exciter coil and equipotential ring create an ionization effect (corona) which will provide an attractive point for lightning strike.
This tip connected to the down conductor will provide a safe path to the SEPTE grounding electrode to drain the lightning current.
It has an approximate coverage radius of 72 degrees.
Applications:
The grounding system is the essential part of any electrical installation, and its objective is:
- Provide security to people.
- Protect infrastructure, electrical and electronic equipment.
- Protect facilities.
- Guarantee the operation of the protections.
- Stabilize the voltage.
- Dissipate the lightning current.
- Limit transient overvoltages. (Voltage Peaks).
- Drain static charges that the metallic masses present with respect to the ground.
Standards:
It complies with telecommunications standards, as well as official Mexican standards.
- EIA/TIA J-STD-607-A and BICSI
- NOM-022-STPS-2012
- NOM-022-STPS-2015
- NMX-J-549-ANCE-2005
Includes the following components:
| ATMOSPHERIC PROTECTION SYSTEM (LIGHTNING ARRESTOR) | |||
| Qty | Unit | Model | Description |
| 1 | Pc. | LP-DIPOLO-ALU | Lightning rod type crown dipole in aluminum |
| 1 | Pc. | LP-GROUND-30A | 30 A Electrode with Filter and Compound Bag |
| 3 | Pcs. | LP-CB-20 | 1/2'' Terminal Connectors to Cables, Gauge 4 to 1/0 (AWG). |
| 2 | Pcs. | LP-CV-20 | 5/8'' Rod Connector to 4 Gauge Cable (Four) to 3/0 (Triple Zero) |
| 1 | Pc. | LP-REGISTRO-7 | 7" round valve box |
| 1 | Pc. | LP-ANTICORROSIVO | Antioxidant protective spray for electrical connections. |
| 8 | Pc. | LP-AISLADOR-UNI | Insulator for Bare Cable Grounding Systems in STZ30 and STZ30G Towers |
| 17 | m | SLY343-BLK | THW-LS Coated Copper Wire Gauge 1/0 AWG, Color Black (1 METER) |
| SISTEMA DE TIERRAS FÍSICAS PARA ATERRIZAJE DE EQUIPO Y ESTRUCTURAS | |||
| Qty | U | Model | Description |
| 1 | Pc. | LP-GROUND-30A | 30 A Electrode with Filter and Compound Bag |
| 5 | Pcs. | LP-CB-20 | 1/2'' Terminal Connectors to Cables, Gauge 4 to 1/0 (AWG). |
| 2 | Pcs. | LP-CV-20 | 5/8'' Rod Connector to 4 Gauge Cable (Four) to 3/0 (Triple Zero) |
| 1 | Pc. | LP-REGISTRO-7 | 7" round valve box |
| 1 | Pc. | LP-CTZ-114 | 5/8'' Rod Connector to 4 Gauge Cable (Four) to 3/0 (Triple Zero) |
| 1 | Pc. | LP-BU-TZ | Union bar for tower installation |
| 5 | m | SLY287-GRN | THW-LS Coated Copper Cable Gauge 2 AWG Color Black (1 Meter) |
Curso básico para selección e implementación de sistemas de protección
