Cable de Uso Rudo 2 Hilos Calibre 18 AWG, Hasta 600 V. Rollo de 100 m.

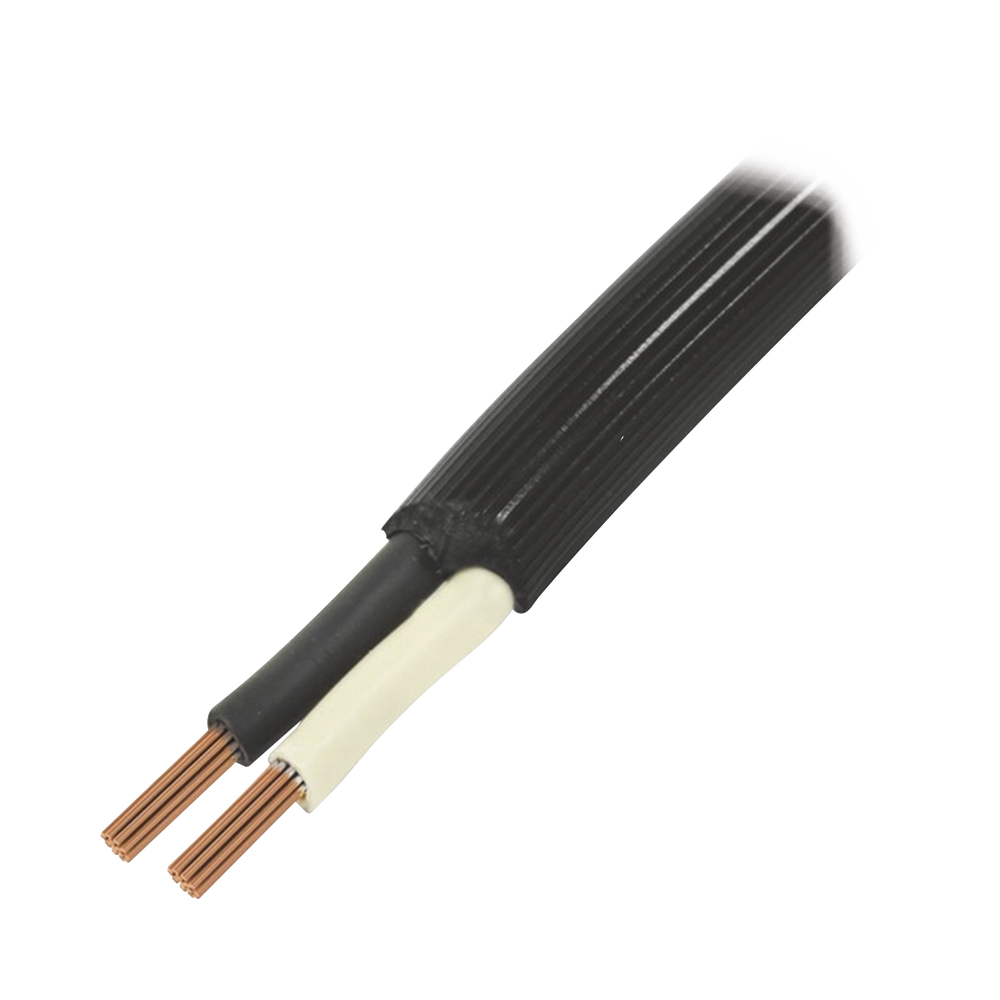

Cable formed by soft copper conductors in flexible construction, with individual insulation of polyvinyl chloride (PVC) identified by colors and an outer jacket of polyvinyl chloride (PVC) in black with a trace of color.

• Maximum operating temperature: 60 °C.
• Soft copper cord, flexible construction (class K).
• Flame-resistant PVC sheath and insulation
• Striated PVC outer cover, resistant to sunlight, in black with a trace of color and with a numerical sequence for each meter.

• Maximum operating voltage: 600 V
• Designation AWG: 2 X 18
• Nominal cross-sectional area: .82 mm²
• Conduction capacity: 10 A
• Insulation thickness: .76  mm
• Exterior diameter:  7.1 mm
• Color codes:
  2 conductors: Black and white.
  3 conductors: Black, white, and green.
  4 conductors: Black, white, red, and green.

• Sequential numerical marking every meter for better length management during installation, improvements in inventory control and waste.
• Cover with trace of color for quick identification of the gauge in the installation, resistant to sunlight.
• Meets the flame propagation resistance test (NMX-J-192-ANCE)
• The conductors are soft copper cords, which facilitates their handling and installation, giving them greater flexibility during use.
