Extractor de alimentación por red compatible con micrófonos y dispositivos externos Louroe y cámaras IP

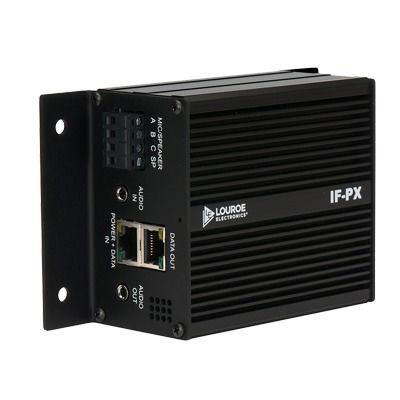

The IF-PX is an extractor of power supply through the Ethernet of easy one oriented to audio that extracts the power of an Ethernet connection to supply the solutions of unidirectional or bidirectional audio of Louroe. The PoE extractor interacts with the speakers, microphones, and other external devices Louroe that require a power supply of 12 Vdc, like accessories of system and cameras without PoE. The IF-PX also allows supplying audio equipment and video with only a path of CAT5, CAT5e or CAT6. The IF-PX improves the functionality of the systems of audio security to eliminate the need for power supply. It also allows a perfect installation with standards 15 W PoE (802.3af) and easy integration with IP cameras.

Features:
• Power supply to microphones and to AOP-SP
• Supports 2 modes of power supply: A and B
• Power supply through Ethernet +12 Vdc
• Volume control of audio
• Input and Output for IP cameras
• Circuit sensible to heat
• Protection to short circuit and over-voltage
• The connector of data of Output EN RJ45

Benefits:
• Eliminates the need for power supply
• For the use of analog cameras and IP and Encoders
• Allows the variation of the levels of audio
• Easy integration with IP cameras
• Protection against over-voltage
• The output of data for IP cameras
• Ethernet connector: RJ45 Cat5
• Input voltage: 36-57 Vdc
• Optional power supply: 12 Vdc, 2 A
• Connectors: RJ45, Jack for Vdc, microphone/speaker, the input of audio of 3.5 mm
• Input and Output of audio: Line of level
• The gain of audio of output: Up to +15 dB
• Dimensions: 15.24 x 8.8 x 5.3 cm
• Weight: 36.80 g

•
