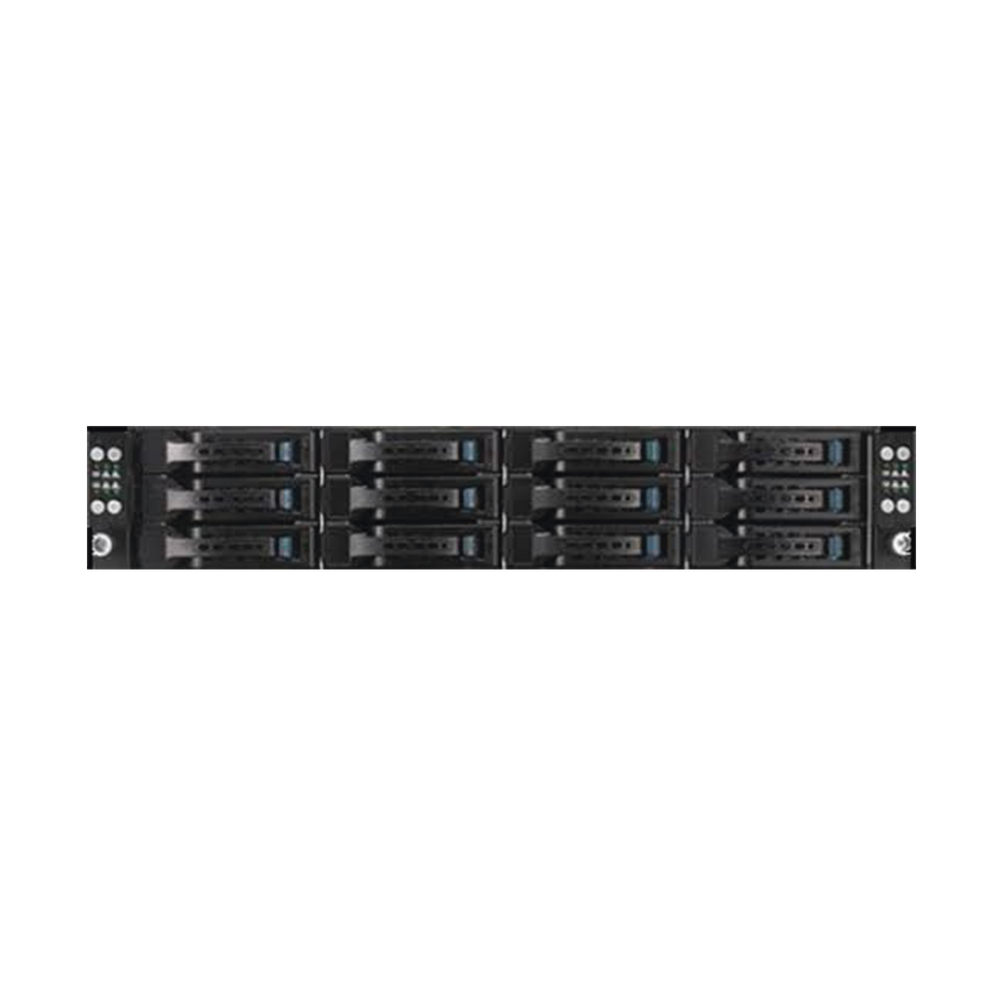

Servidor de Administración / fuente de poder redundante / Con 4 nodos (Doble Intel Xeon / Doble disco de estado solido 120GB / 3GBE / 16GB RAM)

High-Density Performance

The ApplianceStor 85R is a modular server system with four high-performance server modules in a single 2U rack mount platform providing unmatched performance and density. Each module can be used for VMS (Video Management Software) integration, failover, archiving, administration and access control in a single high-density system. The AS85R is ideally suited to be used in conjunction with the PS5000 to provide a simple to use, high performance and capacity video surveillance storage and server solution. This significantly reduces the cost over a separate VMS server as well as the cabling and nightmare of integrating VMS, OS, commodity server and storage. The AS85R is prequalified and provides guaranteed performance with all major VMS solutions.

Powerful

The AS85R packs four powerful server modules into a single 2U system. Each module is built around two high-performance Intel® Broadwell Xeon® E5-2620v4 (eight cores 16 threads)/ E5-2630v4 (ten cores 20 threads) server class processors with up to 3.1GHz clock speeds and DDR41866MHz ECC memory. Each AS85R module offers high performance and bandwidth connectivity to meet the requirements of the most demanding megapixel camera applications. Each AS84R server module delivers unmatched LAN connectivity with three GbE ports and an additional port that is dedicated to management for a total of four GbE LAN ports. Optionally, the data LAN ports can be increased to six GbE ports per blade.

Reliable

The AS85R provides dual, redundant power supplies. It uses ECC RAM, guaranteeing that video being stored, read, and transferred is always correct. It uses a parity bit to accomplish the data protection. Most NVRs and DVRs are not protected to this level and with these products, crucial video can be lost.

Right Size

The AS85R is designed for large megapixel deployments and perfectly matched with the high capacity and performance PS5000 IP Storage system. The AS85R, when used with PS5000, can scale capacity up to 4.3PB.The AS84R provides unmatched performance density to ensure optimal, cost-effective, and dependable video storage.

Specifications (per module):

CPU: Intel Haswell Xeon E5-2620v4 / E5-2630v4 @2.2GHz

Memory: 16GB DDR4 2133 ECC UDIMM (up to 32GB)

Video Storage Performance: Up to 120 Mbps internal / Up to 720 Mbps using PS5012

Expansion: 1 slots (PCI-E x16)

Operating System: Windows 10 Pro or Windows Server (under project specification), two SSD 120 GB RAID1

Network Port: 3 GbE (Optional 4 GbE or 6 GbE)

Management Port: 1 GbE

Vdieo: HD7750 1GB DDR3 (1 mDP and 2 HDMI), for configuration

Physical Characteristics (all unit):

Dimensions: 28.7" x 17.3" x 3.4"

Weight: 63.9 lbs

Power Supply: Redundant (1 + 1)

Voltage: 110/220 VAC

Watts: 1000W (100-120 VAC) / 1200W (100-140 VAC) / 1620W(180-240 VAC)

Work Temp: 10°C to 35°C

Storage Temp: -40°C to 70°C

Humidity: 20% to 90% (non-condensing)

Operating Altitude: 0 to 10,000'
