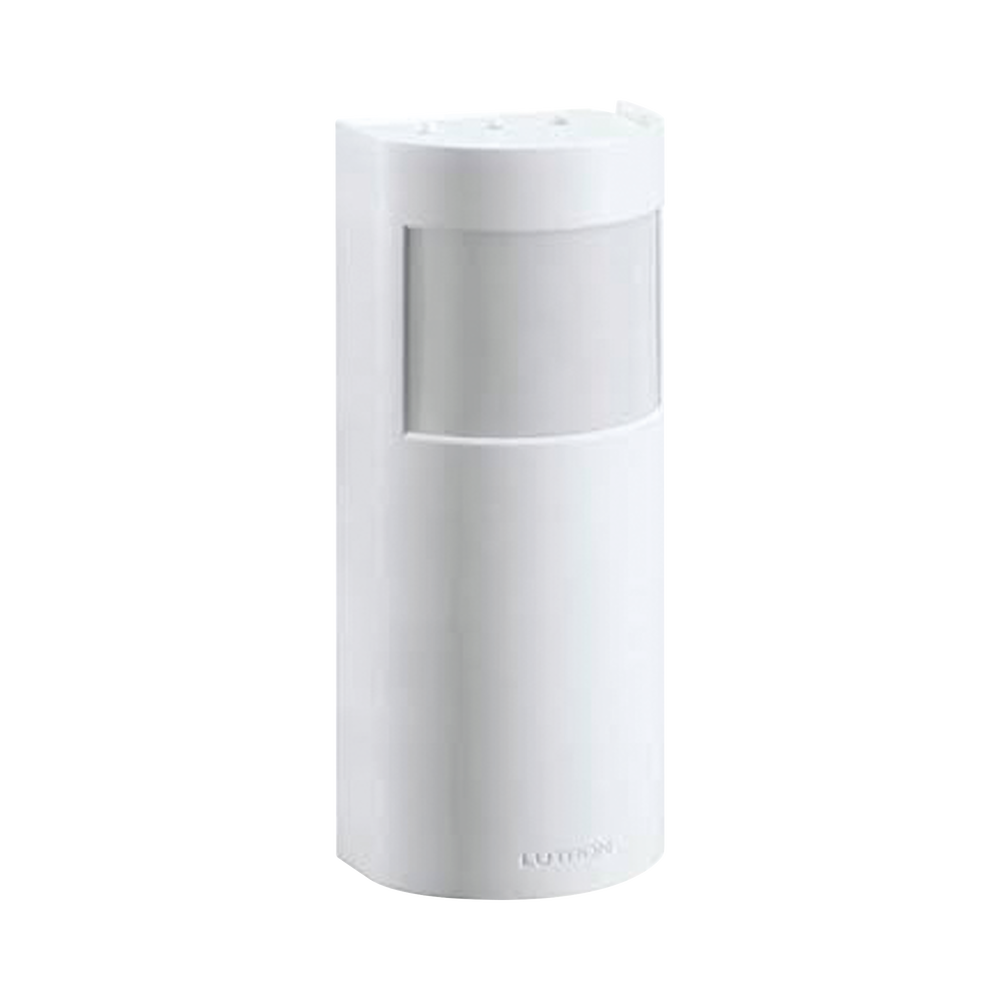

Sensor de movimiento vacancia/ocupancia para sistemas Caseta Wireless LUTRON

Lutron Caséta motion sensors are wireless, batterypowered, passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming or switching devices. These sensors detect the heat from people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming or switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings along with ease of installation.

Wireless motion sensor has two settings available: AutoOn/Auto-Off, and Manual-On/Auto-Off

• Vacancy model meets CA Title 24 requirements
• Passive infrared motion detection with exclusive Lutron XCT

Technology for fine motion detection

• 180° field of view:
• Minor motion = 15 x 2 x 35 = 1050 ft2 (97.5 m2)
• Major motion = 20 x 2 x 45 = 1800 ft2 (167.2 m2)
• Simple and intuitive adjustments available for Timeout,

Activity, and Auto-On settings

• Accessible test buttons make setup easy
• Lens illuminates during test mode to verify ideal locations
• Multiple sensors can be added for extended coverage; refer to product specification submittal of receiving device to determine system limits
• 10-year battery life design
