ESTACIÓN INALAMBRICA DE ARMADO LINEA FORCE

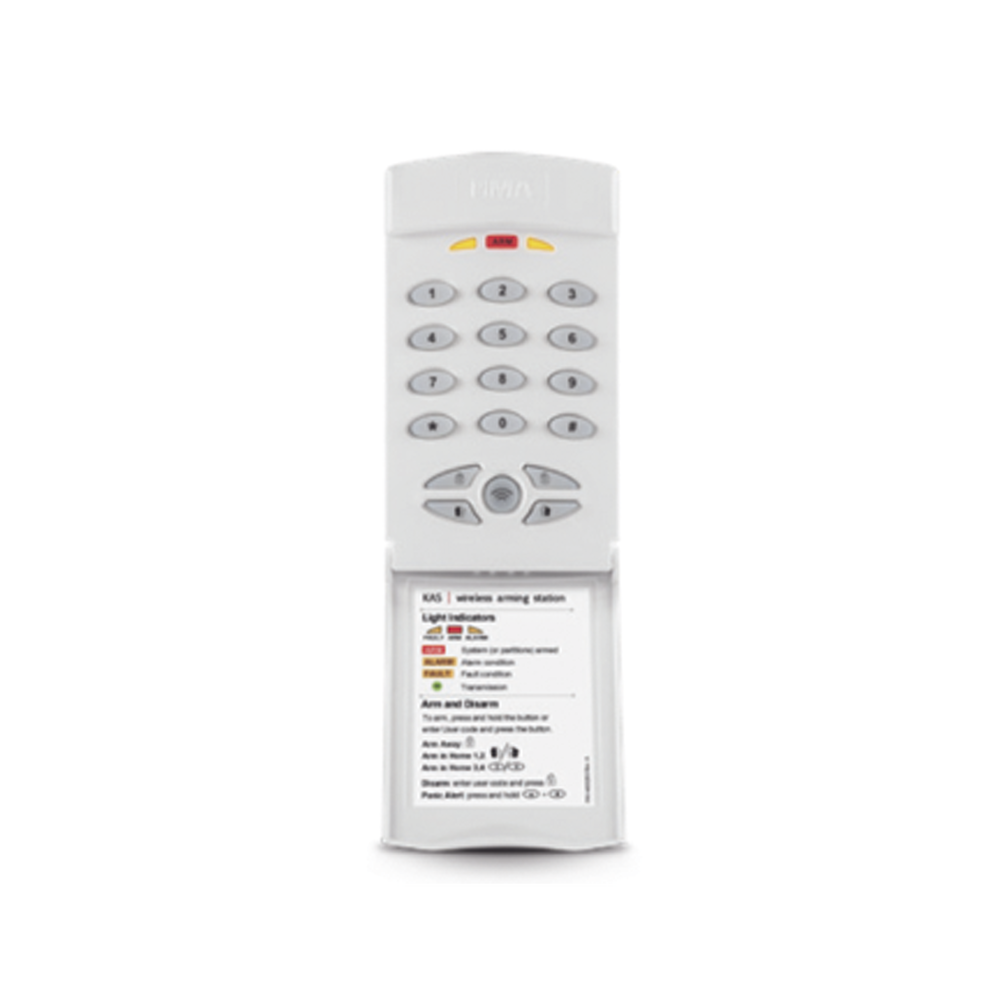

KAS - Wireless Arming Station

The KAS is a Wireless Keyboard / Station for indoor installation, based on FastLink technology and designed for the FORCE Series alarm systems. FastLink communication is encrypted using 128-bit AES encryption to provide a high level of security.

To use the KAS requires the prior installation of a wireless receiver.

The KAS is mainly used to arm and disarm the system. The arming station with rubber keys adapts to multiple interior decorations and has a folding cover. Up to 8 KAS stations can be used in a single system1. The registration process of the KAS in the alarm system is the same as the registration of any other wireless peripheral.

The KAS works with batteries. It has a tamper switch to detect the opening of your cabinet or if it is removed from its mounting surface. For information on how to register (enroll) the device, refer to the FORCE alarm system installation guide (P / N: 4410459).

Technical specifications

-Frequencies (MHz):

-KAS143: 433.92

-KAS187: 868.95

-Operating voltage: 3VDC

-Current consumption: 8μA standby, 110mA active.

-Batteries: 4X 1.5V, AAA.

-Dimensions (cm): 13.5 (23 with extended cover) X 7.5 X 3

-Weight: 146gr

-Complies with CE regulations

-Operating temperatures: from -10 to +55 ° C

-Humidity (Max.): 93% R.H., No condensation

 The use of the WRP repeater is not available
