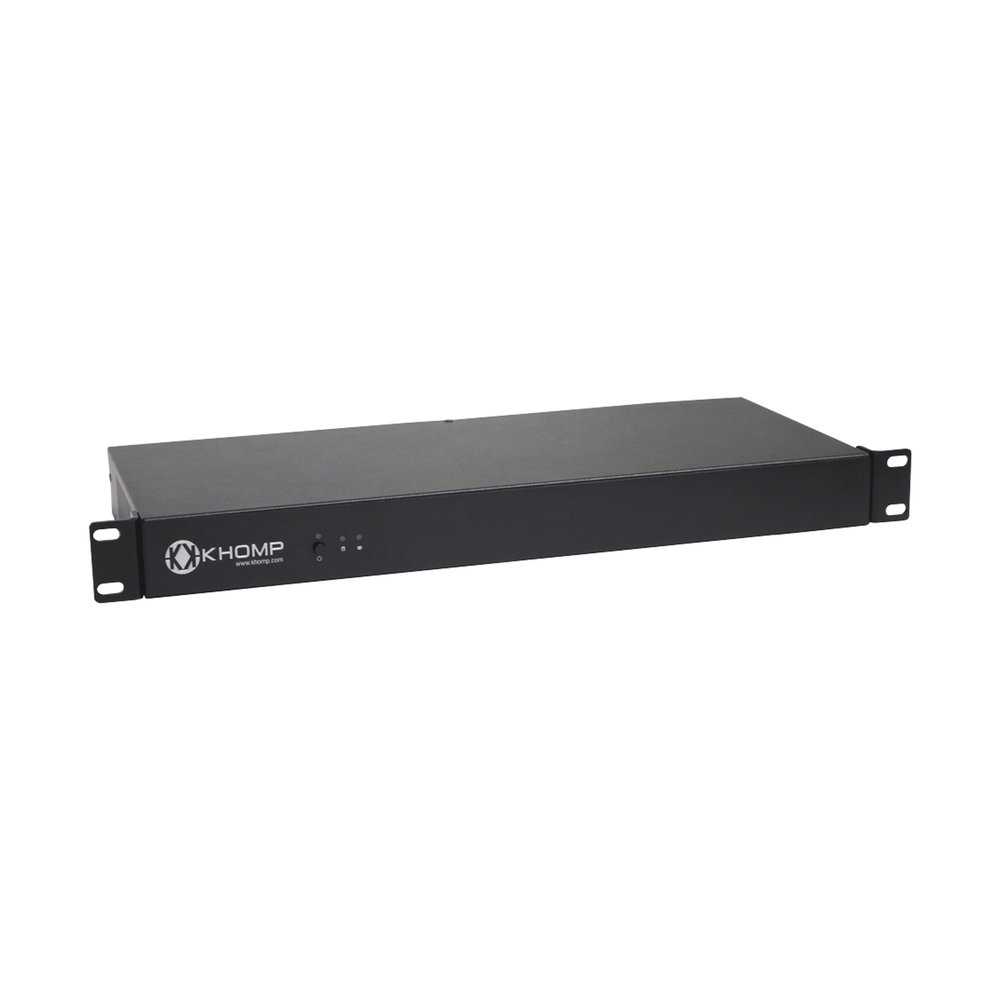

Gateway KMG 200 MS de 60 canales E1 (RJ45), GSM 2G o 3G, FXO y/o FXS, y 60 SIP SBC con transcodificación.

Overview

The KMG 200 MS is a media gateway from the Khomp Media Gateway lineup. A low-density device with modular interfaces and integrated SBC, whose initial configuration can include one or two internal E1/T1 links (60 channels), but also allowing the inclusion of the other two external telephony modules. These modules can consist of E1/T1, GSM, FXO and/or FXS technologies, if a maximum of 60 PSTN telephony channels were observed and that two of its network ports be used. It also has advanced routing and SBC security features, call classification, and intelligent channel monitoring in real-time.

Main Characteristics

• Modular, with 1 or 2 internal E1/T1 + 2 external modules *
• Integrated SBC
• Option with BNC or RJ45 connectors
• Up to 60 TDM channels
• Up to 240 SBC VoIP sessions
• R2 and ISDN Links
• Support for call classification
• Standard 1U Dimensioning for 19'’ rack

Typical Applications

• Small call centers and VoIP carriers that need a low cost, easy to implement an upgrade.
• The connection between PSTN and IP PBX carriers
• Legacy PBX connection with SIP
• The connection between headquarters and branches
• Cost control of telephone billing
• Fidelization of long-distance carriers (same carrier for origin/destination)
