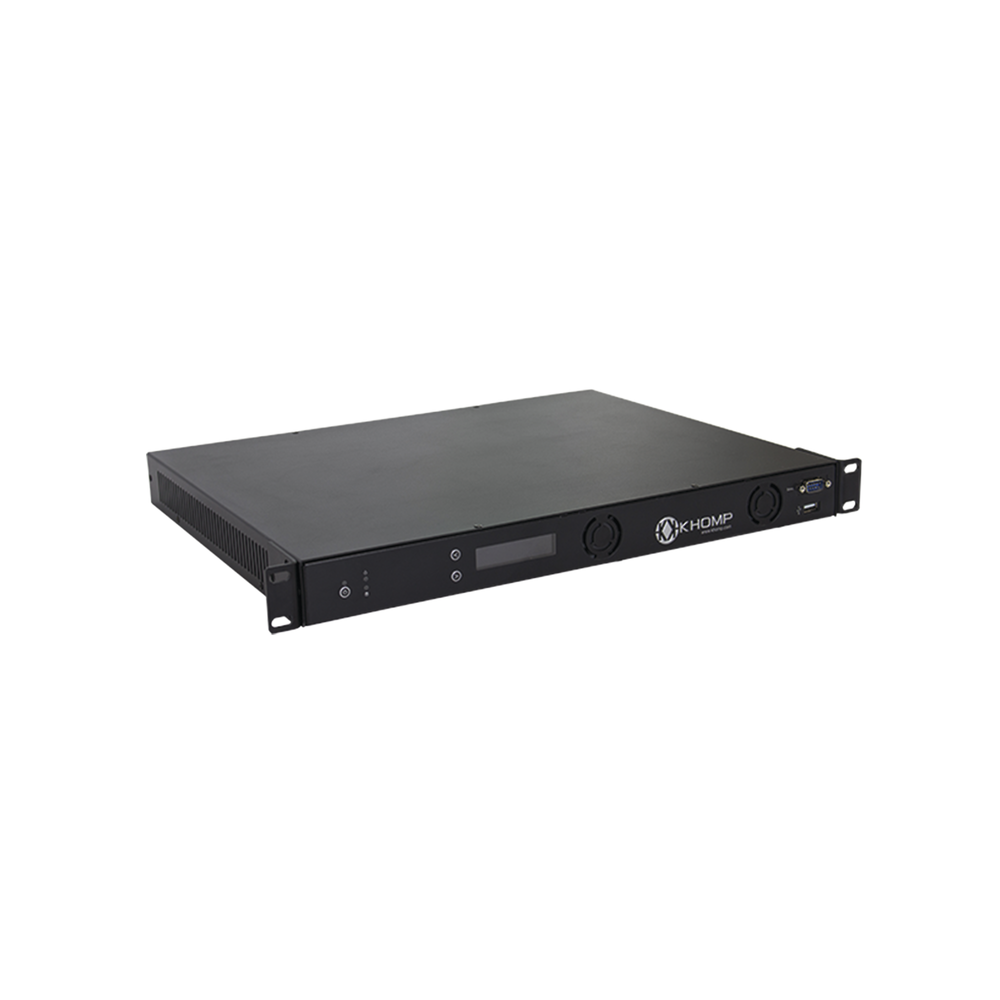

Gateway KMG SBC 750 con alta disponibilidad para hasta 2010 llamadas SIP o hasta 750 con transcodificación.
Descripción del producto
Description
High-density SBC gateway with high availability for up to 2,010 SIP calls or up to 750 calls with transcoding.
Developed for large contact center companies that use SIP connections at their agents and VoIP carriers, the KMG SBC 750 ensures a secure connection between the local network and the VoIP carrier thanks to the Khomp SBC. It secures your SIP network through data encryption, protecting communication sessions against third party interception. Security features such as encryption and topology hiding are available on all calls simultaneously, at no additional cost.
Features and benefits
Features are native in all KMG MS models
- Web Interface for easy configuration, monitoring, and diagnostics;
- Routing Script for routing functions automation;
- RTP Bridge to allow for a larger number of simultaneous SIP calls;
- Data Encryption to protect the VoIP network.
Optional Features for your solution*
- SBC For Routing: all advanced SIP to SIP call routing features;
- Analytics: Khomp Call Classifier to ensure the effectiveness of the contact center productive calls;
- Standalone Survivability (SAS): to survival mode in case of PBX failure;
- High Availability (HA): with redundant equipment that takes over the processing of all gateway calls in case of failure, keeping all settings unchanged;
- SS7, ISUP and SIGTRAN support: for interconnection at the carrier core level;
- Register Authorization: for prior authorization of requests to register external IP phones;
- Insight!: for interactive monitoring and real-time data analysis.
*Features to be purchased separately.
KMG SBC 750 Features
- Supports up to 750 SIP SBC calls with G.729 transcoding.
- Up to 2,010 SIP, SBC calls in Bridge mode
- In booming scenarios, the KMG SBC 750 supports up to 8 external telephony modules for connecting the E1/T1, GSM 2G or 3G, FXO and FXS interfaces. Maximum of up to 960 simultaneous calls.
Other simultaneous call capabilities are listed in the comparison table below.
Comparative table of KMG MS line:
| E1/T1, GSM, FXS and/or FXO capability | SBC | Telephony interfaces | ||||||
|---|---|---|---|---|---|---|---|---|
| Transcoding option | Maximum Nº. of Channels | Number of calls in RTP Bridge Mode* | G.711 <> G.711 | SIP Transcoding G.729 <> G.711 | Transcoding on Both Ends G.729 <> G.729 | Internal (on the chassis) | External (additional modules) | |
| KMG 200 MS | G.711<>G.729 | 60 | 240 | 120 | 60 | 30 | 1 (1 or 2 E1/T1) | 2 |
| KMG 400 MS | – G.711 G.711<>G.729 | 0 120 120 | 300 240 90 | 180 90 0 | 90 30 0 | 45 15 0 | 0 1 (modular) 1 (modular) | 0 2 2 |
| KMG SBC 750 KMG 3200 MS | – G.711 G.711<>G.729 | 0 960 480 | 2010 450 1500 | 1500 450 450 | 750 300 300 | 375 150 150 | – – – | 0 8 8 |
| KMG SBC 90 | – G.711<>G.729 | 0 60 | 300 240 | 180 120 | 90 60 | 45 30 | – – | – 2 |
*RTP Bridge: Does not allow conversion of Codecs or audio handling – Analytics.
Application Model
