Comunicador De Alarma Contra Incendios De 4 Canales Uso Paneles Firelite

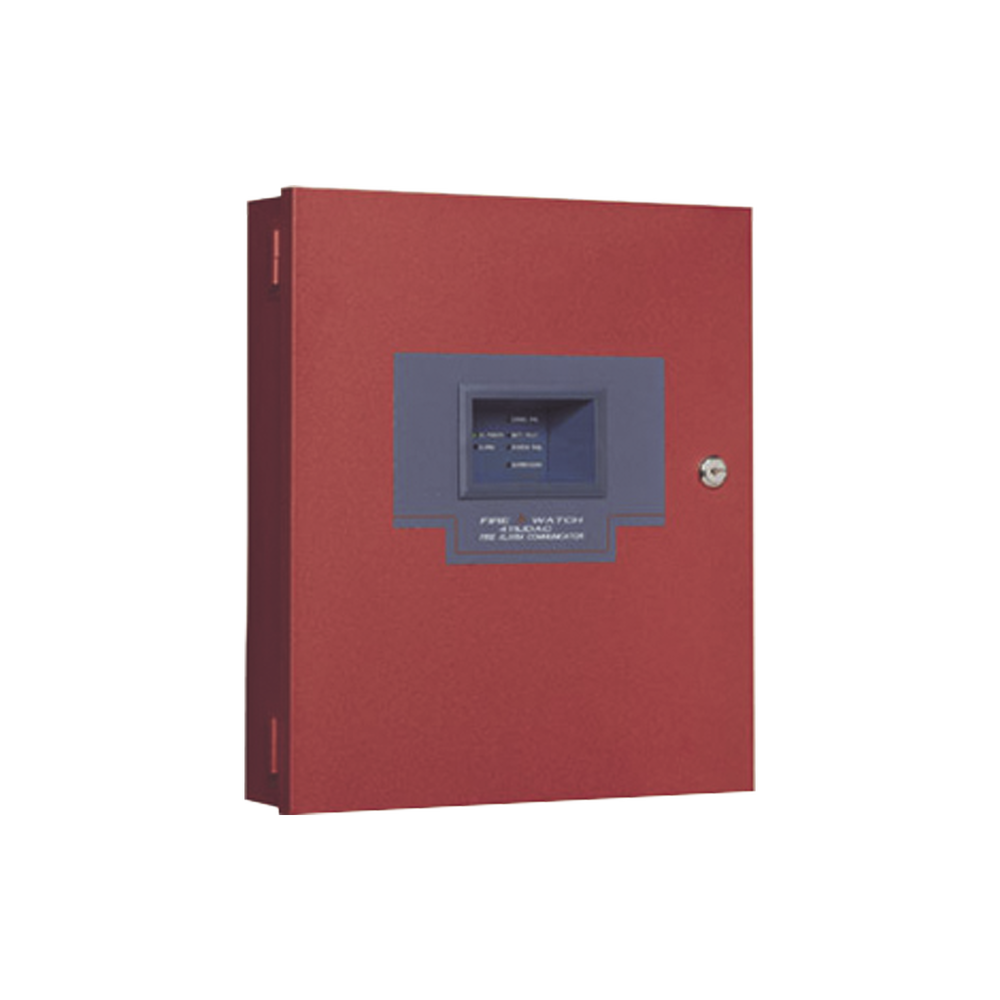

The Fire-Watch 411UDAC from Fire•Lite is a compact, multifaceted, stand-alone or slave Fire Alarm Communicator designed for a variety of fire and non-fire applications. It provides four channels (inputs) that accept waterflow devices, two- and four-wire smoke detectors, pull stations, and other normally-open contact devices. The 411UDAC is a cost-effective solution for applications that require an existing (or new) Fire Alarm Control or Security Panel to transmit system status to an off-site monitoring facility for Central or Remote Station compliance. Due to its extremely flexible programming options, the 411UDAC is also ideal for use as a stand-alone unit to monitor: sprinkler systems for waterflow and supervisory conditions; processes (i.e., water level, gas detection, loss of air flow); and normallyopen contact devices.

FEATURES

• Four supervised monitoring channels (inputs): three fixed Style B (Class B) and one Style A (Class A) or Style B (Class B).
• Inputs may be individually programmed for standalone applications, or when monitoring a host control panel, for:

Two- and four-wire smoke detectors (Inputs 1 and 3).
Pull station.
Normally-Open contacts.
Host panel trouble (slave mode).
Supervisory.
Supervisory (autoresettable).
Waterflow (silenceable).
Waterflow (non-silenceable).
Process monitoring.
Process monitoring (autoresettable).

• One Style Y (Class B) Notification Appliance (bell) Circuit (NAC).
• 1.0 Amp notification appliance power.
• Coded (temporal) notification appliance (bell, signal) circuit.
• 12 VDC operation.
• Capable of 60 hours of standby.
