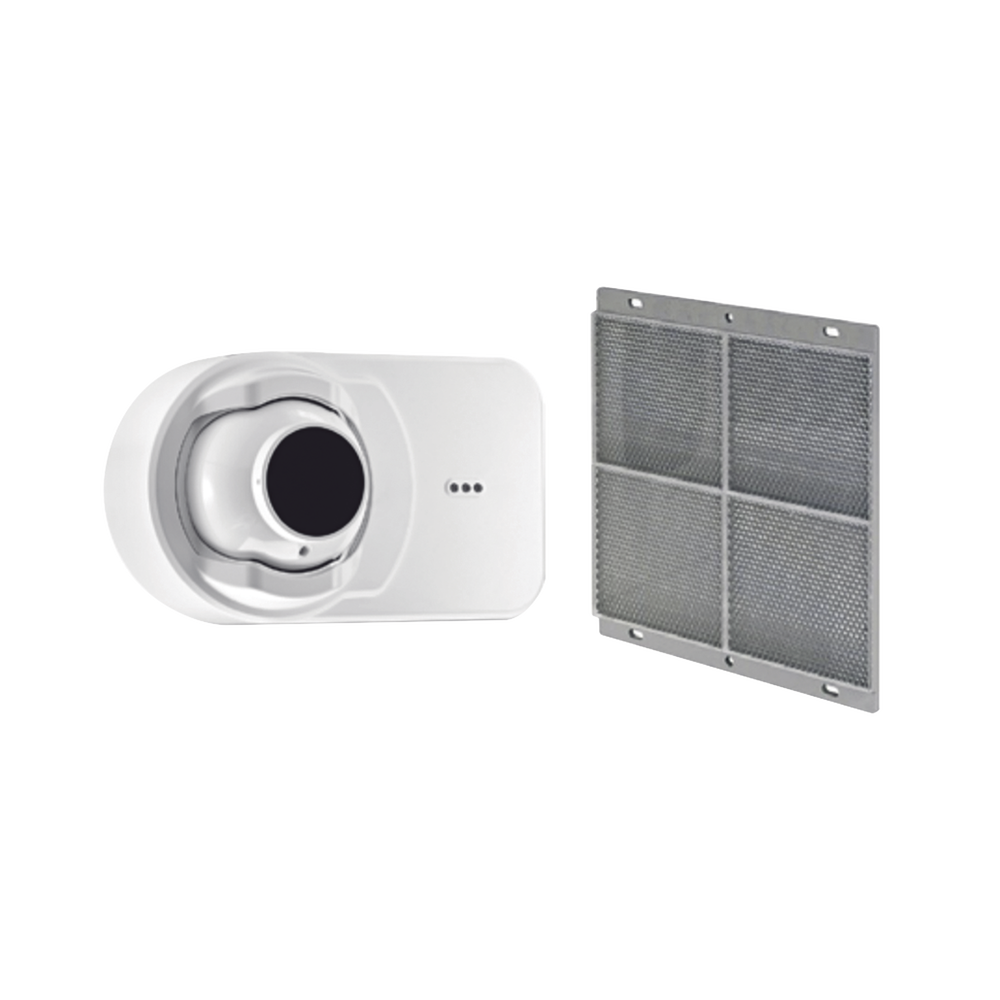

Detector De Humo Inteligente Por Haz De Imágenes - Direccionable compatible con Fire-Lite

The OSI-RI-FL intelligent addressable reflector-type linear optical beam smoke detector is uniquely suited for protecting large open areas with high ceilings, where spot-type smoke detectors are difficult to install and maintain. Ideal applications are warehouses, atriums, aircraft hangers, sporting arenas and concert halls. The beam operates primarily on the principle of light obscuration using infrared. The OSI-RI-FL detector is a combined transmitter/ receiver that can be directly connected to an intelligent detector circuit in LiteSpeed® or CLIP mode.

OSID-R devices are limited due to SLC loop current draw restrictions. Standby current can be up to 20mA per detector, and alarm current of 22mA. This limits customers to 5 detectors per loop on Fire-Lite Panels.

Features

• Combined transmitter/receiver unit
• Wide 12° field of view
• Fast, easy, and intuitive beam alignment indicated by directional LED arrows
• Long range coverage of 16-328 ft (5-100 m) is standard; no separate long-range kit required
• Highly resistant to building movement; tolerates +/- 1° movement
• Resistant to strong light sources; does not alarm when saturated by sunlight
• Resistant to solid object intrusion
• Automatic sensitivity threshold level settings and drift compensation
• 50° horizontal and 20° vertical beam adjustment
• Built-in imager heater
• Remote test station capable for electronic simulated smoke test from ground level
• Status LED indicators visible from the front and bottom
• Paintable housing/cover
• Removable plug-in terminal blocks
• Optional heater kit available for the reflector

Specs

• Operating Voltage Range:
Nominal: 24 VDC
• Minimum: 15 VDC
• Maximum: 32.0 VDC
• Maximum Standby Current:
13 mA @ 32 VDC
14 mA @ 24 VDC
20 mA @ 15 VDC
• Maximum Alarm Current (LED on):
22 mA @ 32 VDC
15 mA @ 24 VDC
22 mA @ 15 VDC
