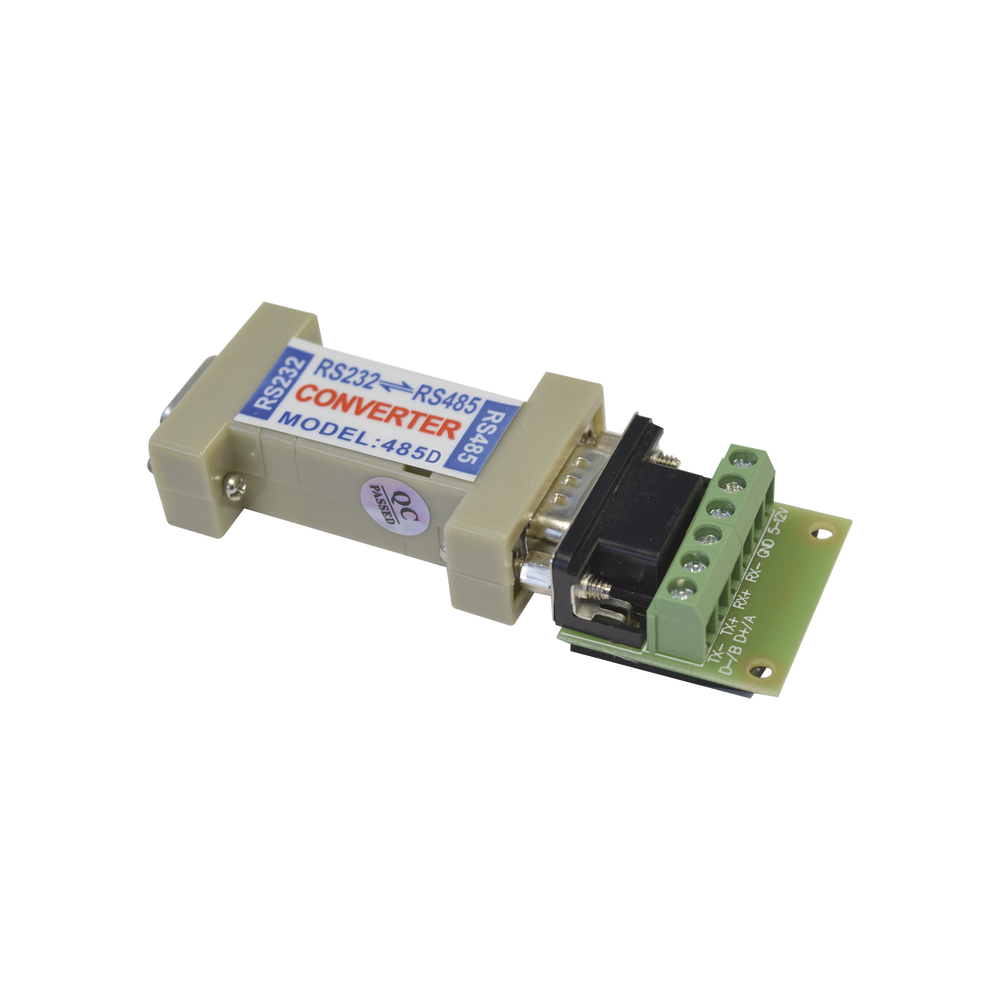

Convertidor de RS232 a RS485

The RS232-RS485 converter is designed to convert signals between an RS232 interface and an RS485 interface, it is often used for applications of CCTV, access control and industrial applications. 2-wire mode "Half-duplex" (RS485), the drive can control the direction of transmission on the bus through the data flow. In this case, the converter will be responsible for automatically determine the bus reversal depending on the direction of the data transmitted. Thus, it can be used to connect computers that management is not performed by flow control. The maximum speed of data throughput is 115,2Kbit / s.

APPLICATIONS:

• CCTV
• Access control.

SPECIFICATIONS :

• Range Data Transfer: 300-115200bps.
• Operating Distance: 1200m for RS485, RS232 5m
• Power supply: Not required, uses TD as power source.
• Ambient temperature: -10C to 85C ° C ° C, 5% to 95% RH
• Interface: Compatible with EIA / TIA RS-232C standard and RS-485 standard.
• Working mode: Asynchronous, half-duplex, differential transmission.
• Transmission medium: Unshielded twisted pair shielded UTP or FTP.
• Dimensions: 95 x 33 x 17 mm
• Weight: 36 grams.
