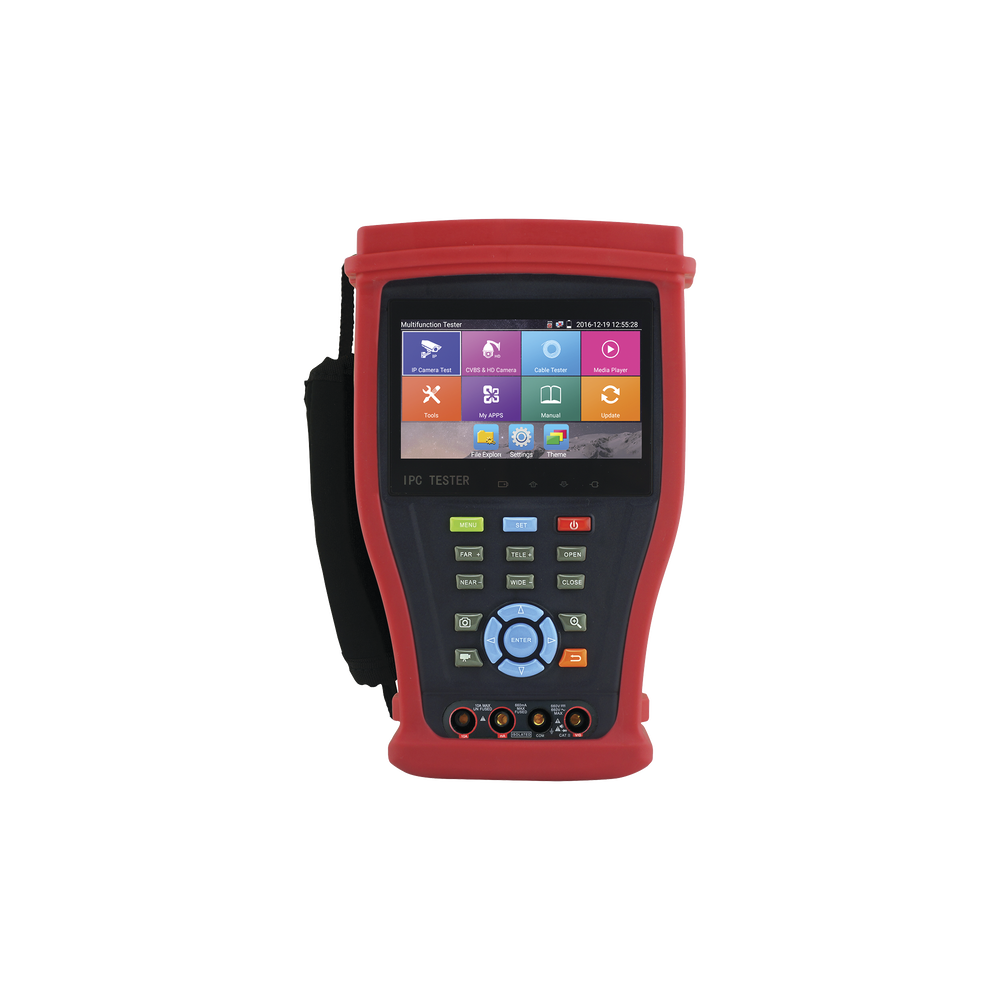

Probador de Video Android con Pantalla LCD de 4.3" para IP 4K / HD-TVI (8MP), HD-CVI (8MP), AHD (5MP) / Multímetro Digital, HDMI Entrada/ Salida, WiFi

Applications:

• Analog camera test
• IP camera test, support 4k, H.264, and H.265 z 8MP TVI test, 8MP CVI test, 5MP AHD test
• HDMI input and output
• Multimeter
• Android system, support Apps installation

Features:

• 4.3 inch IPS touch screen, 960*540 resolution
• H.264 and H.265, 4K video display via mainstream
• Rapid video, just by one key to detect all network cameras and auto display
• Built-in WiFi to receive network image and data, create wifi hotspot, support browser
• Rapid Onvif, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
• 8MP TVI test, 3840x2160P 15FPS, 4xzoom, video record and playback, coaxial PTZ control, and call camera OSD menu
• 5MP AHD test, 2592 x 1944P, 12.5/20FPS, 4xzoom, video record, and playback, coaxial PTZ control, and call camera OSD menu
• 8MP CVI test, 3840 x 2160, 12.5/15 FPS, 4xzoom, video record and playback, coaxial PTZ control, and call camera OSD menu
• HDMI input, 720×480p / 720×576p / 1280×720p / 1920×1080p / 1024×768p / 1280×1024p / 1280×900p / 1440×900p display image, record and snapshot
• IP and analog cameras testing at the same time, converter test from analog to digital via dual test window IP & CVBS
• CVBS loop test, the tester send and receive color bar generator signal to check BNC cable
• Traffic monitoring of the tester "Lan port", display network port or wifi connection real-time upload and download speeds and other network parameters
• Screen lock, password lock, and pattern lock are optional
• Enhanced cable tester, UTP cable, telephone cable as well as other cables’ order and connectivity test, the testing report can be saved.
• Support more than 80 customized IP cameras protocols
• Support IP camera apps and RTSP to view IP camera image
• Network bandwidth testing
• PoE 24W power supply to IP camera
• HDMI signal output, support 1080P
• DC12V 2A power output for camera
• USB 5V 2A power output to mobile phone
• Enhanced color bar generator, by receiving the video color bar to test the video channel whether transmit normally
• PoE voltage measurement, test the PoE switch’s voltage to IP cameras, wireless AP device, and other PD devices
• PTZ protocol analysis, control protocol command displays to check RS485 transmission
• PTZ control. Pan/tilt the PTZ unit, zooms in/out the lens, adjusts the focus, aperture and sets, and the preset position
• Audio input test and output, test the audio signal from pickup devices, support audio output
• Lithium-Ion Polymer Battery. The device employs advanced power control and protection circuit. The device is high power-efficient, energy-saving, and environmental protection. It can last 10 hours for normal use after charging for 6 hours
