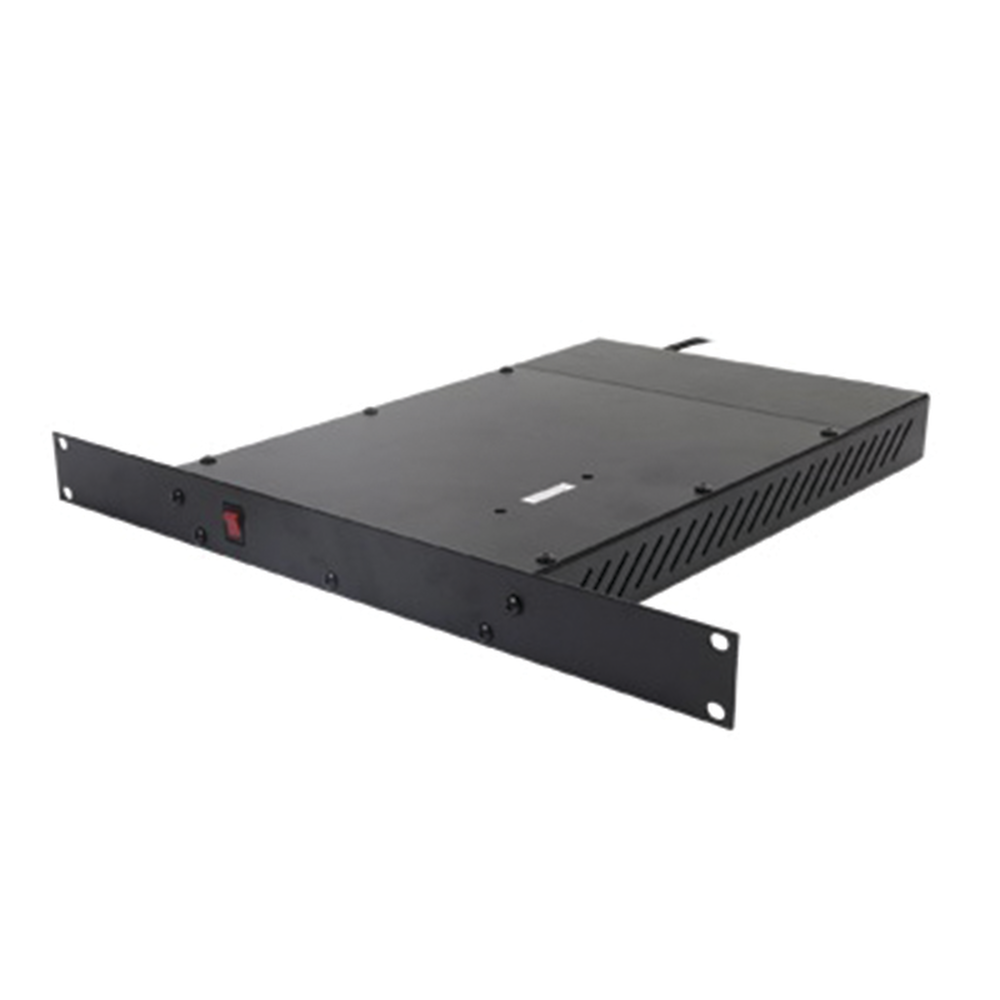

Fuente de Poder de 8 Salidas, Montaje en Rack de 19", 1U, Hasta 13.2 Vcd de salida, 10Amp (Corriente de Salida Configurable).

Functional features:

• Special enclosure for installation in 19" racks.
• 1 space unit.
• Fast blow fuses.
• Electronic surge protection.
• On/Off switch on the back.
• 1 distribution board to connect 8 cameras.

Electrical characteristics:

•Cameras: 8.
•Input voltage: 100-240 Vca (auto-adjustable line input voltage).
•Output voltage: 12 Vcd nominal. (adjustable from 11.4 to 13.2 Vdc).
•Output current: 10 Amp.

Physical characteristics:

•Aplication: indoor.
•Material: steel enclosure.
•Weight: 2.9 Kg.
•Exterior dimensions: 260 x 43 x 403 mm (W x H x D).
•Rack unit: 1

Painting:

• Color: black semi-mate.
• 5-step electrostatic coating process: degreasing, rinsing, iron phosphate, rinse and sealed.
• Polyester primer.

We Recommend:

•The maximum allowable cable length is 60 m.
•Make sure the installation is performed by a trained professional.
•Periodically check if the screws are properly adjusted.
•Schedule a maintenance plan to eliminate the excess of dust and dirt from the equipment.

*The color may vary. The declared weight does not include accessories or packaging. We manufacture cabinets to suit your needs.

* 2-year warranty
*QUESTION OR SUGGESTION? PLEASE CONTACT US​
