Extensor HDMI inalámbrico para 100m protocolo HDbitT 1080p@50/60Hz
Extensor HDMI inalámbrico para 100m protocolo HDbitT 1080p@50/60Hz
Extensor HDMI inalámbrico para 100m protocolo HDbitT 1080p@50/60Hz

Extensor HDMI inalámbrico para 100m protocolo HDbitT 1080p@50/60Hz

$0.00
Marca:
Código del producto: TT388M-DUAL
Disponibilidad: ¡Agotado!

Descripción del producto

Main features:
  • Signal HDMI: Version 1.3
  • Supported resolution: 1080p @ 50/60 Hz
  • No need for software and driver
  • Signal control by remote control
  • 1-year warranty
Physical and Electrical Characteristics:
  • Voltage: 5VDC
  • Current: 2A
  • Consumption: 7Watts
  • Dimensions: 132 mm ( L ) x 121.4 mm ( W ) x 21.5 mm ( H )

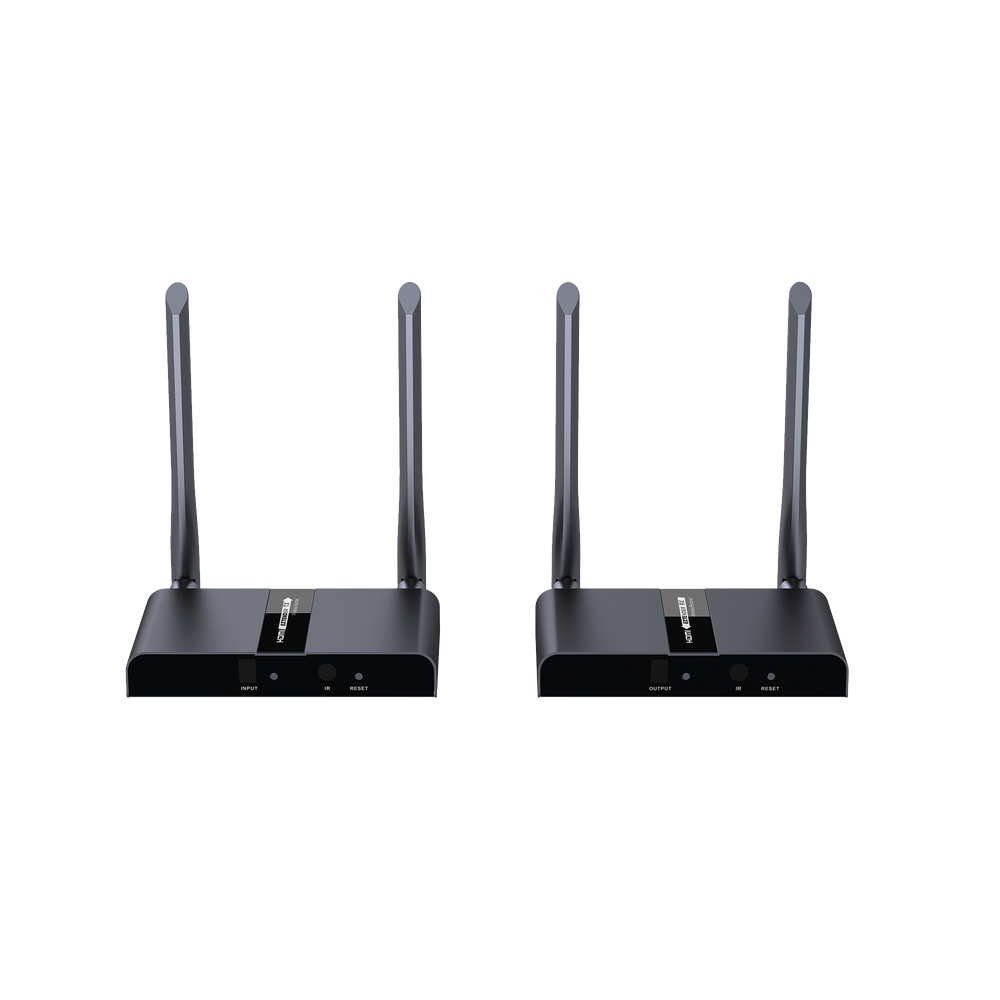

This HDMI wireless extender includes a transmitter and a receiver, allows you to transmit and extend the HDMI signal up to a distance of 100m wirelessly. Thanks to the transmission in 5GHz it is resistant to interference. The equipment supports the SSID to make the transmission of information safe and effective. This is not a one-to-one configuration breath, it supports one to two, two to two and two to one connection. It supports the frequency of 20 to 60KHz in IR to transmit the command signal to the screen. You can make changes easily with the remote control or with the button on the front panel of the equipment. This is an excellent solution to transmit one or more HDMI signals to one or more screens over a long distance without the need for wiring, perfect for application in conference rooms, education and entertainment systems.





Power SupplyVoltage/currentDC5V/2A
Power consumptionTX＜7W RX＜5W
HDMI
performance
 and interface		HDMI complianceHDMI1.3
HDCP complianceHDCP1.2
HDMI resolution[email protected]、[email protected]、
[email protected]、[email protected]、
[email protected]/60Hz、[email protected]/60Hz、
 [email protected]/60Hz
Supports audio formatsPCM
Maximum transfer rate10.2Gbps
Input and output TMDS signal0.5～1.5Vp-p(TMDS)
Input and output DDC signal5Vp-p(TTL)
Input cable length≤5m(AWG26 HDMI1.3cable standard)
Output cable length≤5m(AWG26 HDMI1.3cable standard)
IR performance and interfaceIR remote controlSupport IR passback with 20-60KHz frequency
Wireless
performance
 and interface		Transfer method5.8G Wireless transmission
Transmission distance100 Meters
Delay≤200 ms
Protection
 level		Electrostatic protection
 of the whole machine		1a Contact discharge level 3
1b Air discharge level 3 Implementation
 of the standard: IEC61000-4-2
Operating
 environment		Working temperature0～50℃
Storage temperature-10～70℃
Humidity (no condensation)0～90%
Body propertiesDimension132.0(W) x121.4(D) x 21.5(H)mm
MaterialIron alloy material + crystal panel
Processing technologySandblasting
Colourblack
