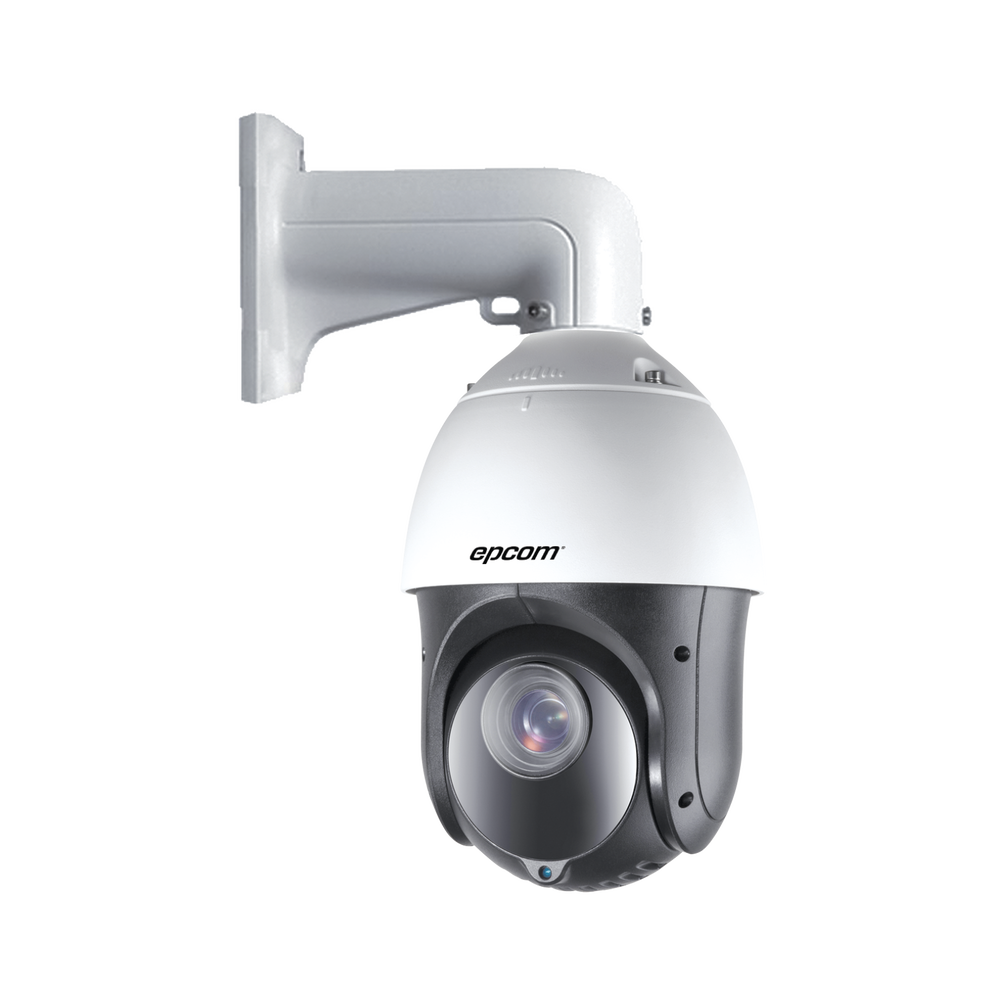

IP PTZ Dome 2 MP / H.265+ / 25X Optical Zoom / 120 dB WDR / IR EXIR Up to 328 ft (100 mts) / PoE+ / Outdoor IP66 / Onvif
IP PTZ Dome 2 MP / H.265+ / 25X Optical Zoom / 120 dB WDR / IR EXIR Up to 328 ft (100 mts) / PoE+ / Outdoor IP66 / Onvif
IP PTZ Dome 2 MP / H.265+ / 25X Optical Zoom / 120 dB WDR / IR EXIR Up to 328 ft (100 mts) / PoE+ / Outdoor IP66 / Onvif

IP PTZ Dome 2 MP / H.265+ / 25X Optical Zoom / 120 dB WDR / IR EXIR Up to 328 ft (100 mts) / PoE+ / Outdoor IP66 / Onvif

$0.00
Marca:
Código del producto: XPTIE252X
Disponibilidad: ¡Agotado!

Descripción del producto






Camera
  • Image Sensor: 1/2.8" Progressive Scan CMOS
  • Effective Pixels: 1920(H)x1080(V)
  • Signal System: PAL/NTSC
  • Minimum Illumination:
    • ​Color: 0.005 Lux @(F1.6, AGC ON)
    • B/W: 0.001 Lux @(F1.6, AGC ON)
    • 0 Lux with IR
  • White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
  • AGC: Auto/Manual
  • BLC: ON/OFF
  • HLC: Support
  • Smart defog: Support
  • WDR: 120dB
  • Shutter Time: 1/1 s to 1/30,000 s
  • Day& Night: ICR
  • Digital Zoom: 16×
  • Privacy Masking: 24 privacy masks programmable
  • Auto Focus: Auto / Semi-automatic / Manual
Lens
  • Focal Length: 0.18 to 4.72" (4.8 to 120 mm), 25× optical
  • Zoom Speed: Approx. 3.2 s (optical lens, wide-tele)
  • View Angle:
    • ​Horizontal field of view: 57.6° to 2.5° (wide-tele)
    • Vertical field of view: 34.4° to 1.4° (wide-tele)
    • Diagonal field of view: 64.5° to 2.9° (wide-tele)
  • Minimum Working Distance: 0.39 to 59.05" (10 mm to 1500 mm) (wide-tele)
  • Aperture Range: F1.6 to F3.5
Pan & Tilt
  • Pan Range: 360° continuous
  • Pan Speed: Configurable, from 0.1°/s to 80°/s
  • Preset Speed: 80°/s
  • Tilt Range: -15°-90° (Auto Flip )
  • Tilt Speed: Configurable, from 0.1°/s to 80°/s
  • Preset Speed: 80°/s
  • Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
  • Number of Preset: 300
  • Patrol: 8 patrols, up to 32 presets for each patrol
  • Pattern: 4 pattern scans, record time over 10 minutes for each scan
  • Power loss recovery: Support
  • Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
  • PTZ Position Display: ON/OFF
Infrared
  • IR irradiation distance: 328 ft (100 m)
  • IR irradiation angle: Adjustable by zoom
Network
  • Ethernet: 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)
  • Max.Image Resolution: 1920×1080
  • Main Stream: 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
  • Sub Stream: 60Hz: 30fps(704×480, 640x480,352×240)
  • Third Stream: 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
  • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
  • ROI encoding: Support 4 areas with adjustable levels
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • No. of Simultaneous Users: Up to 20 users
  • Three-Stream: Support
  • Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
  • User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, and User
  • Security Measures: User Authentication (User ID and Password), Host authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
  • Guarding Vision: Support
General
  • Menu Language: English
  • Power Supply: 12 VDC &POE (802.3at,class4)
  • Power Consumption: Max.:18 W (IR Max.6 W)
  • Working Temperature/Humidity: -30°C to 65°C (-22°F to 149°F)
  • Protection Level:
    • ​IP66 standard (outdoor dome)
    • TVS 4,000V lightning protection, surge protection, and voltage transient protection
  • Dimensions: Φ 165.9 mm × 290 mm (Φ 6.53" × 11.42")
  • Weight (approx.): Approx. 2 kg (4.41 lb)
  • Bracket not included

1 Year Warranty
