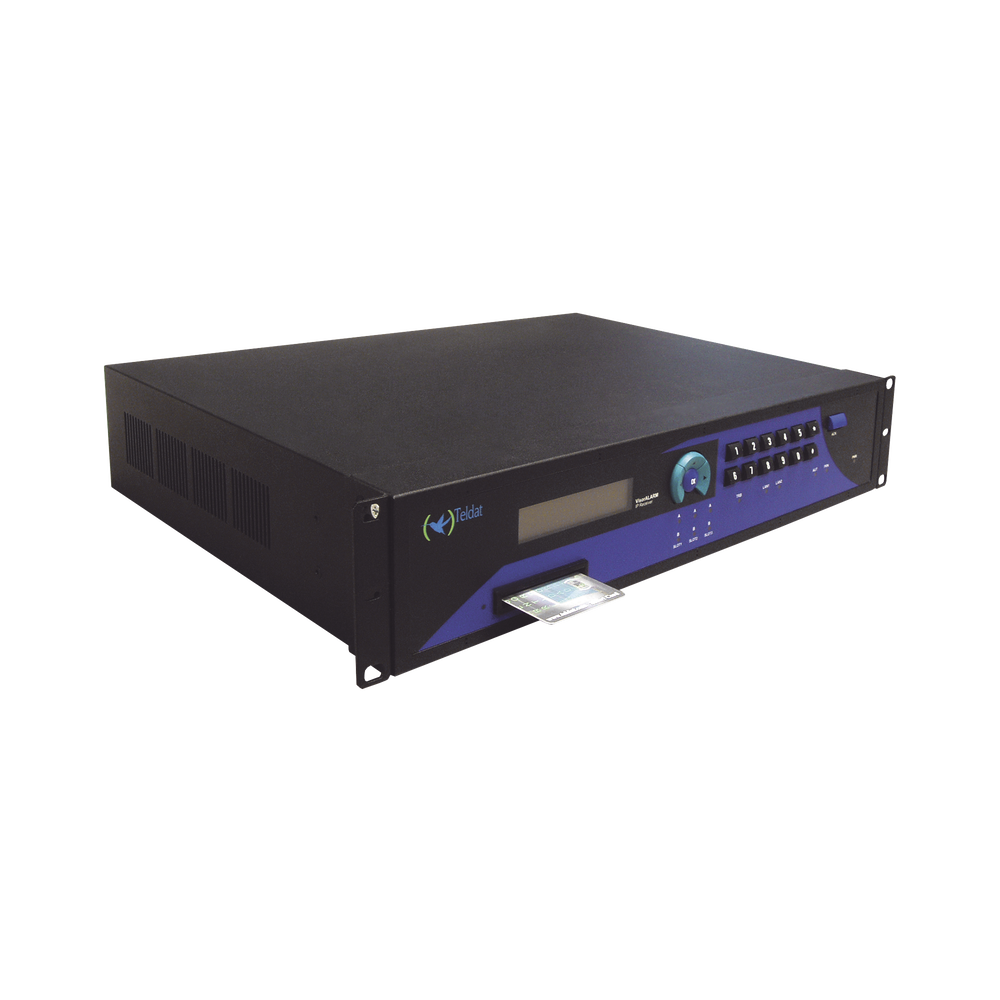

Receptora IP Fire-Lite

The VisorALARM PLUS IP receiver is Teldat’s solution to manage and receive alarms from burglar and/or fire alarm panels equipped with Honeywell Power’s MIP or Fire-Lite Alarm’s IPDACT modules. Each receiver supports up to 3,000 alarm panels and provides the industry’s most advanced set of features including line supervision, 512 bit encryption and a three level redundancy system for the highest possible availability and reliability levels.

Features

• Scalability: Simultaneous management for up to 3,000 MIP and IPDACT IP remote devices.
• Line monitoring: Monitors connectivity status with all registered devices.
• Network access monitoring: Monitors the status of its network access to avoid generating false technical alarms under a communications failure situation.
• Support for dynamic and static IP addresses on the remote MIP and IPDACT devices.
• Encryption: Uses 512 bit AES encryption algorithm for all communications with installed IP modules.
• Communicates alarms to the automation server via a serial connection, using Contact-ID format and emulating Sur-gard, Radionics or Ademco receiver protocols.
• Smart card: Saves all configuration information on an external smart card that can be used for immediate system replacement under crash recovery situations.
• Secondary receiver support: Two VisorALARMs PLUS can be setup in a primary/secondary configuration for high availability and redundancy options. Teldat’s MIP and IPDACT units in the field will report to the primary unit and will automatically switch to the secondary receiver if the primary becomes unavailable.

Specs

• Protocols: Ethernet (b802.3) / Ethernet blue book
• Speed: 10 Mbps/100 Mbps (100BaseT)
• Connector: RJ45 female
• Protocols: FRAME RELAY, X.25, PPP, SDLC, X.28
• Interfaces: Insertable drivers V.24 / V.35 / X.21 DTE/DCE
• Nº Ports: 2 (printer & automation software)
• Speed: 200 to 2048 Kbps
• Connector: DB-25 female
• Emulation: Surgard, Radionics 6500 and Ademco 685
• Type: Desktop 2U or standard 19” Rackmount.
• L x W x H: 12.21 x 16.34 x 3.39 inches
• Weight: 8.82 lbs

CERTIFICATES AND APPROVALS
• UL1610: Central Station Burglar Alarm Units
• UL1076: Proprietary Burglar Alarm Units and Systems;
• ULC/ORD: C1076-M1986 Proprietary Burglar Alarm Units & Systems
• CAN/ULC: S304-M88 Central and Monitoring Station Burglar Alarm Units
• UL864: Control Units and Accessories for Fire Alarm Systems
