Descripción del producto

Description

C3 Pro Series is a project oriented high-end product line with unique features and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks.

The C3 Pro Series requires our NEW ZKBioSecurity web-based software.

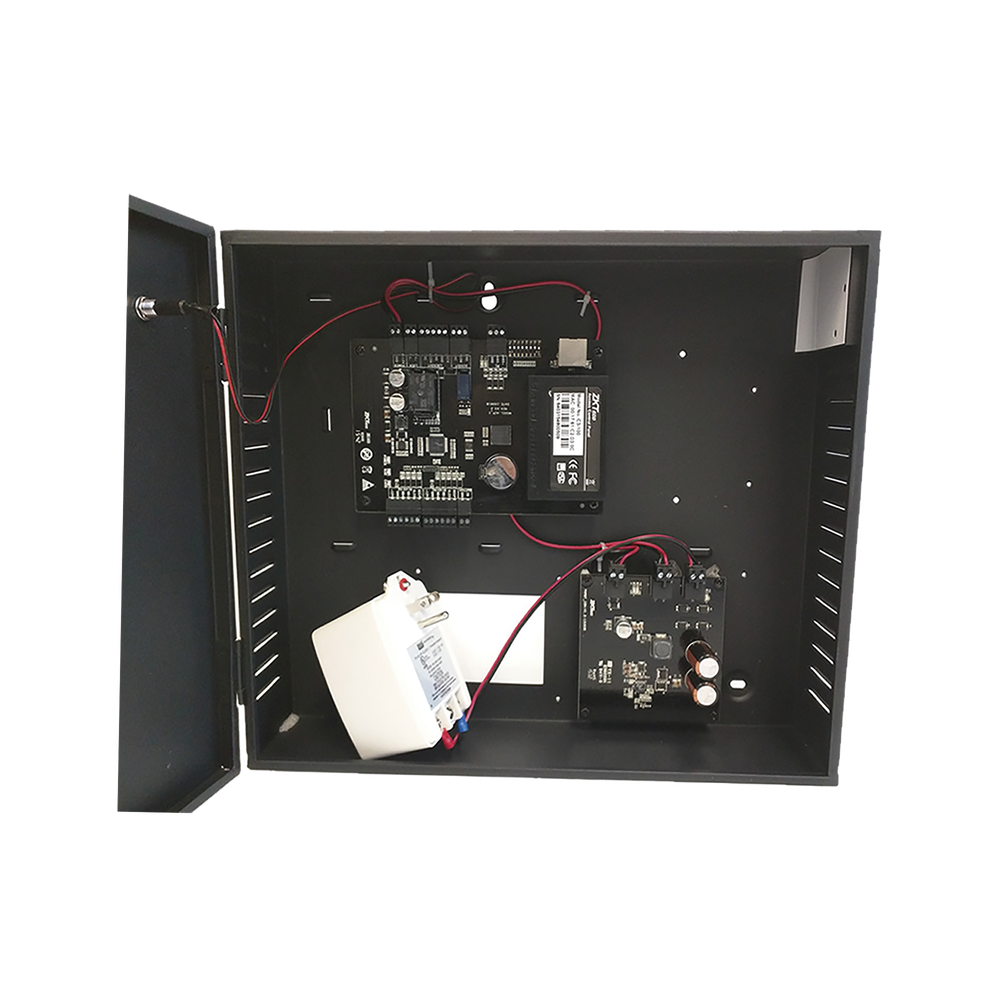

The C3-100 Pro Bundle includes a C3-100 Pro controller, power supply and metal enclosure

Be sure to inquire about ZKAccess options which can further reduce your C3 Pro installation time and labor, including:

1) Power over Ethernet (12V 2A)
2) InBridge Server (Single-purpose management appliance with pre-loaded software)
3) Wireless Bridge (up to 300-foot range)

Features

  • Over-current & over-voltage protection and reversal protection for the power supply and all input/output terminals
  • Supports Push protocol
  • Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
  • Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, and generic ID card readers
  • Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators
  • Can be integrated with 3rd party systems CCTV, Intrusion Detection, Fire Alarm and Elevator Control systems
  • Easy-to-use and intuitive programming with ZKBioSecurity Software
  • System management by browser from client PC’s. No need to install software on each client
  • Programming of special logic between doors is set up with simple pull down menus. No special scripts required.
  • Management software allows indication of real-time door status and remote commanding of door open/close state. Alarm conditions such as forced open and extended open alarms are reported.
  • Advanced access control capabilities are built into the hardware, including anti-passback, Dual and multi-Card Authentication, and Duress Mode.

Specifications

Number of doors controlled – One
Numbers of readers supported – 4 (2 RS-485 Reader, 2 26-bit wiegand reader)
Types of readers supported – 26-bit Wiegand and RS485
Number of Inputs – 3(exit Device and Door Status, 1 AUX)
Number of Outputs -2 (1-for C Relay for Lock and one for C Relay for Aux Output)
Card holders Capacity -30,000
Log Events Capacity -100,000
Communication -TCP/IP
Package Dimension -350(L)×90(H)×300(W)mm
Package Weight -3.6kg
CPU -32 bit 1.2GHz
RAM -128MB
Flash Memory -256MB
Power -9.6V-14.4V DC
Operating Temp -0-45 °C
Operating Humidity -20% to 80%

Wiring Diagram
