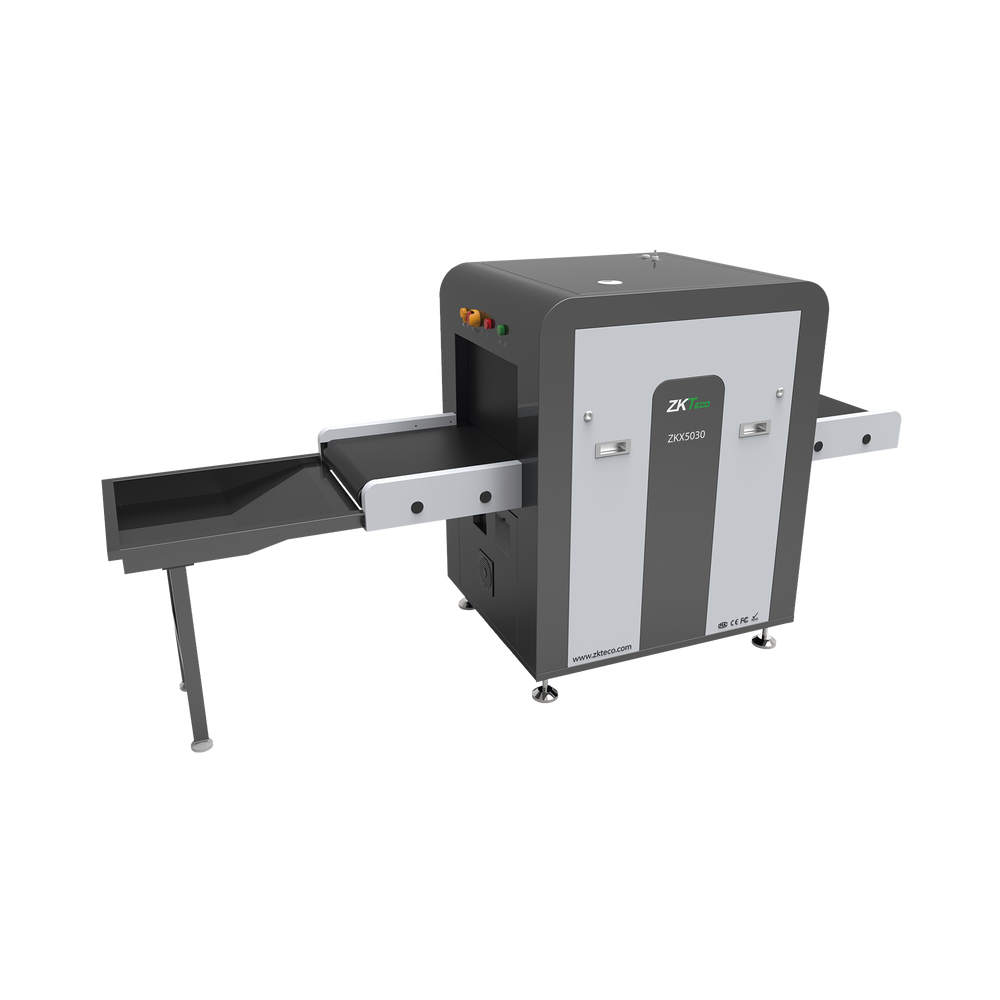

Maquina de Rayos X para equipaje Tunel de 50 x 30 cm

ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
ZKX5030A uses a reliable high-quality single energy X-ray generator. With the superb image algorithm, ZKX5030A could offer a clear scanning image, which allows operators to identify potential threat items visually. With ergonomic modern design, ZKX5030A could help operators to identify suspicious items fast and accurately.

Parameters

• Tunnel size: 507 x 305
• Speed: 0.2 m/s
• Height of transmission belt: 751 mm
• Maximum load: ≤120Kg(Adequate distribution)
• Wire resolution: 34 AWG (0.16 mm metal wire)
• Space definition: HorizontalΦ1.0mm/VerticalΦ2.0mm
• Penetration: 8 mm Steel board
• Monitor: 17-inch screen

Features

• High-density alarm
• TIP
• Luggage Counter
• System running timer
• X-Ray emitting timer
• System maintenance
• Training
• 64x Zoom

X-Ray Systems

• Tube Voltage: 80kV
• Cooling: Seal oil cooling/100%
• Single inspection dosage rate: ≤1.0μGy
• Radiation Leak Dosage: 0.1μGy/h(5cm from the shell)
• Package size: L1900mm*W990m*H1320mm
• Package Weight: 410KG
• Power Consumption: 1 kVA
• Noise: 53.8 dB(A)
