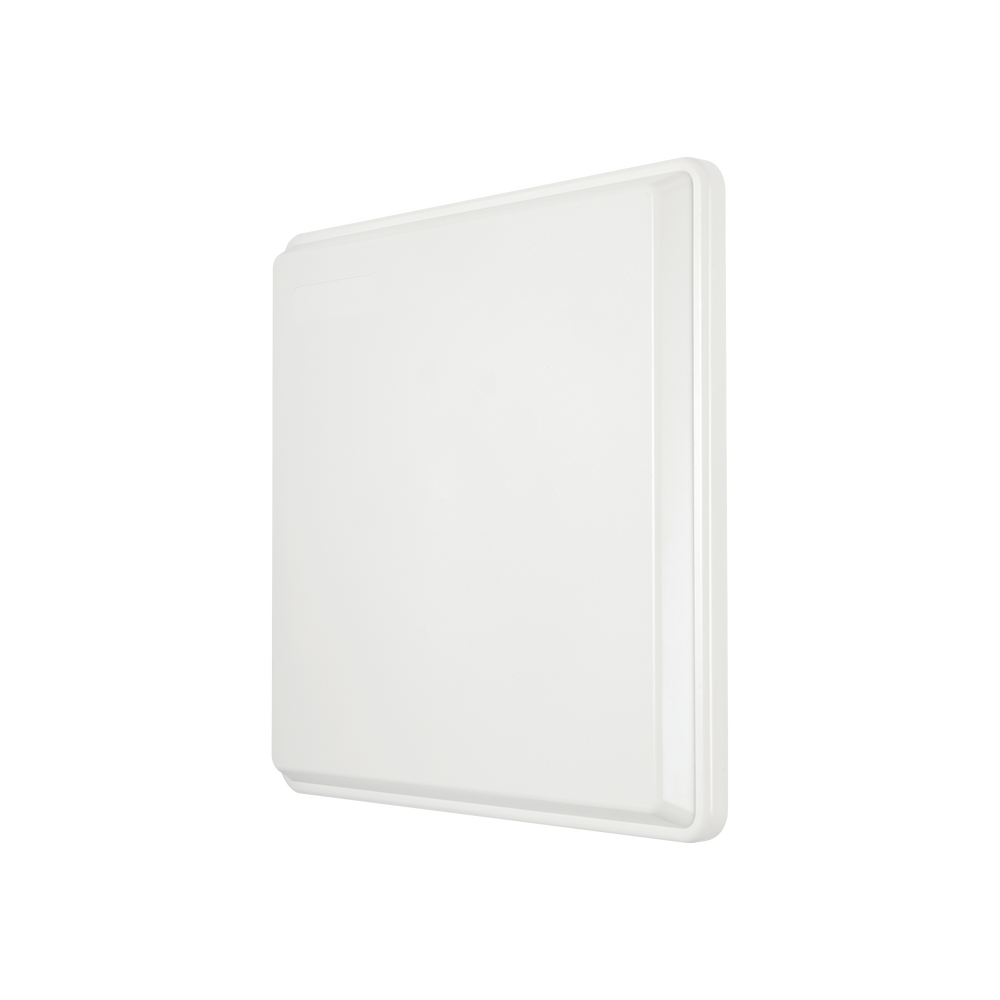

Punto de Acceso con Antena Integrada PTP450i en frecuencia de 3 GHz Hasta 300 Mbps - C030045B002

Spectrum

• Frequency: 3300 - 3900 MHz
• Channel Spacing: Configure on 2.5MHz increments
• Channel Width: 5, 10,  20 , 30 MHz

Interface

• MAC (Media Access Control) Layer: Cambium Networks proprietary

• Physical Layer: 2x2 MIMO OFDM

• Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

• Protocols Used: IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP

• Network Management: HTTP, HTTPS, Telnet, FTP, SNMP v3

• VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Performance

• ARQ: Yes

• Modulation Levels (Adaptive) / MCS / Signal to Noise Required (SNR, in dB)

  • 2X / QPSK / 10

  • 4X / 16QAM / 17

  • 6X / 64QAM / 24

  • 8X / 256QAM / 32

• Maximum Deployment Range: Up to 58 to 400 miles minimum, depending on configuration

• Latency: 3 - 5 ms, typical

• GPS Synchronization: Yes, via Autosync (CMM3, CMM4)

• Quality of Service: Diffserve QoS

Link Budget

• Antenna Beam Width: 10° azimuth for 23 dBi integrated antenna

• Antenna Gain: +23 dBi H+V, integrated or external

• Transmit Power Range: 40 dB dynamic range (to EIRP limit by region) (1 dB step)

• Maximum Transmit Power: +27 dBm combined output

Physical

• Antenna Connection: 50 ohm, N-Type (Connectorized version only)

• Surge Suppression:

  • EN61000-4-5: 1.2us/50us, 500 V voltage waveform

  • Recommended external surge suppressor: Cambium Networks Model # C000000L033A

• Mean Time Between Failure: > 40 Years

• Environmental: IP66, IP67

• Temperature / Humidity: -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing

• Weight:

  • Connectorized Approx. 2.0 kg (4.5 lbs)

  • Integrated Approx. 2.5 kg (5.5 lbs)

• Wind Survival: 190 km/hour (118 mi/hour)

• Dimensions (HxWxD):

  • Connectorized 26.0 x 13.4 x 6.4 cm (10.25” x 5.25” x 3.25”)

  • Integrated 31.0 x 31.0 x 6.4 cm (12” x 12” x 2.5”)

• Power Consumption: 15 W typical, 25 W max, 55 W max with Aux port PoE out enable

• Input Voltage: 48-59 V DC, 802.3at compliant

• Mounting: Wall or Pole mount with Cambium Networks Model # N000045L002A

Security

• Encryption: 56-bit DES, FIPS-197 128-bit AES

Certifications

• Industry Canada: TBD (4.9, 5.4, 5.8 GHz)

• FCC ID: TBD (4.9, 5.4, 5.8 GHz)

• CE:

  • EN 301 893 v1.7.1 (5.4 GHz)

  • EN 302 625 v1.1.1 (Broadband Disaster Relief, 4.9 GHz, 5.1 GHz)

  • EN 302 502 v1.2.1 (5.8 GHz)
