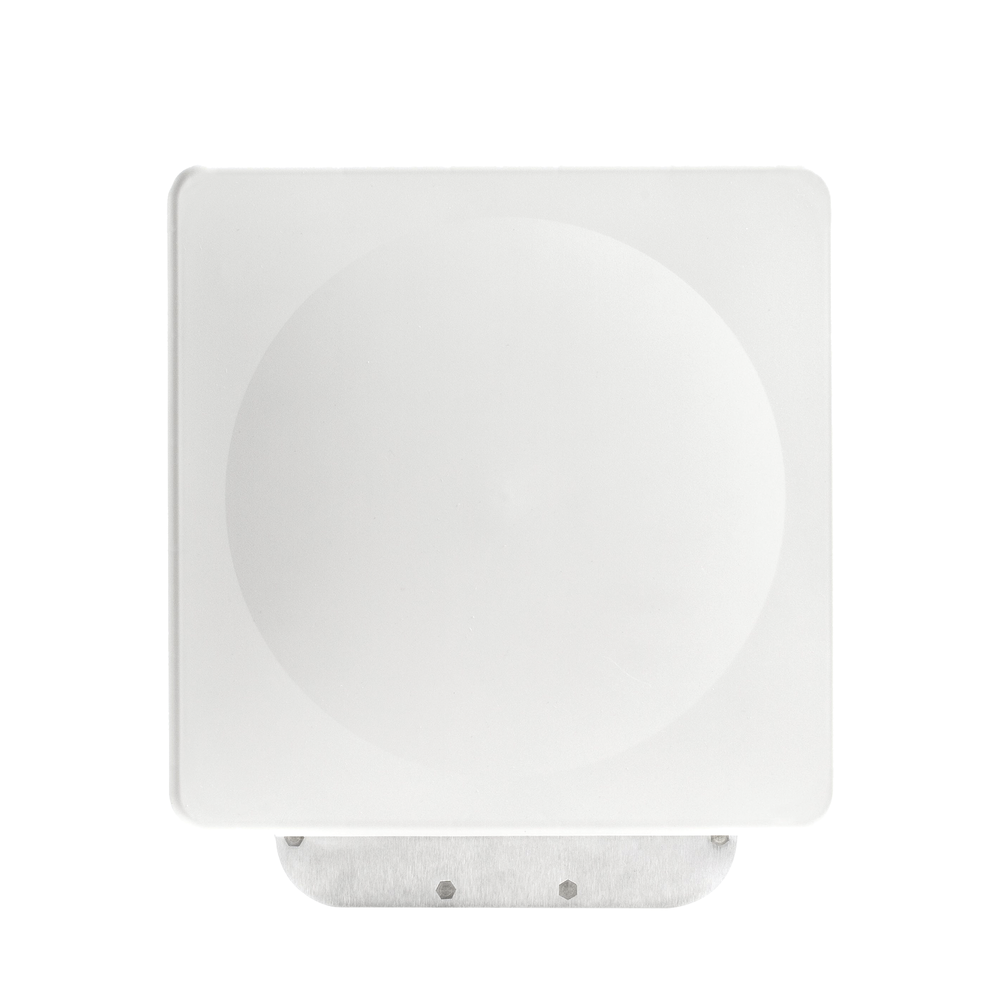

Backhaul radio + antena integrada (Alta ganancia 23 dBi), 4.9-6.05 GHz PTP/HCMP/ 450 Mbps Reales C050067H009B
$0.00
Descripción del producto
PTP670 Integrated Antenna 23 dBi
4.9-6.05
GHz450
MbpsHCMP
High-capacity multipoint
- PTP and HCMP mode
- High capacity - 450 Mbps transmission speed with 10bps / Hz
- Broadband - frequency band between 4.9 and 6.05 GHz
- Security - AES 128/256-bit encryption, remote modification of over-the-air rekeying (OTAR), HTTPS / TLS and SNMPv3 management, RADIUS authentication and password setting for password
- Interfaces - Two Gigabit Ethernet ports and one SFP port for the optional fiber interface. Supports the PoE output port of the 802.3at standard.
- Versatility - The easy-to-integrate layer 2 bridge implementation supports the symmetric and asymmetric time division duplexing (TDD), 1588v2, and simultaneous Ethernet precision and frequency synchronization.
| RF BANDS | 4.9 - 6.05 GHz |
| CHANNEL SIZES | 5, 10 , 15, 20, 30, 40, and 45 Mhz |
| SPECTRAL EFFICIENCY | 10 bps/Hz |
| CHANNEL SELECTION | By Dynamic Spectrum Optimization or manual intervention Automatic selection on start-up and continual self-optimization to avoid interference |
| MAXIMUM TRANSMIT POWER | Up to 27 dBm |
| DUST- WATER INTRUSION PROTECTION | IP66 - IP67 |
| PROTOCOL | IEEE 802.3 |
| LATENCY | 1-3 milliseconds one direction |
| FRAME SUPPORT | PTP Mode: Jumbo frame up to 9600 bytes |
| FLEXIBLE I/O | 2 x Gigabit Ethernet copper ports: - Gigabit Port 1: Data + PoE power input - Gigabit Port 2: 802.3at PoE output port 1 x SFP port: single-mode fiber, multi-mode fiber or copper Gigabit Ethernet options available |
| T1/E1 TDM | 8 x T1/E1 TDM (Network Indoor Unit (NIDU)) |
| DIMENSIONS | Width: 305mm (12”), Height: 305mm (13.5”), Depth: 81mm (3.2”) |
| WEIGHT | 4.1 kg (8.95 lbs) including bracket |
| POWER SUPPLY | AC + DC power injector: -40° to 140° F (-40° to +60° C); 70 W; 90-240 VAC, 50/60 Hz |
| POWER CONSUMPTION | 30 W maximum (up to 70 W with 802.3at device on the auxiliary port) |
HCMP
High-capacity multipoint
| REMOTE MODULES MASTER | Up to 8 Nodes | ||||||||||||||||
| CHANNEL BANDWIDTH | 20 MHz and 40 MHz | ||||||||||||||||
| DATA CAPACITY PER REMOTE MODULE IN 1:1 SYMMETRY |
| ||||||||||||||||
| SPECTRAL EFFICIENCY IN HCMP | 8 bps/Hz Max | ||||||||||||||||
| LATENCY IN HCMP MODE | 2 to 4 ms one way(typically) |
