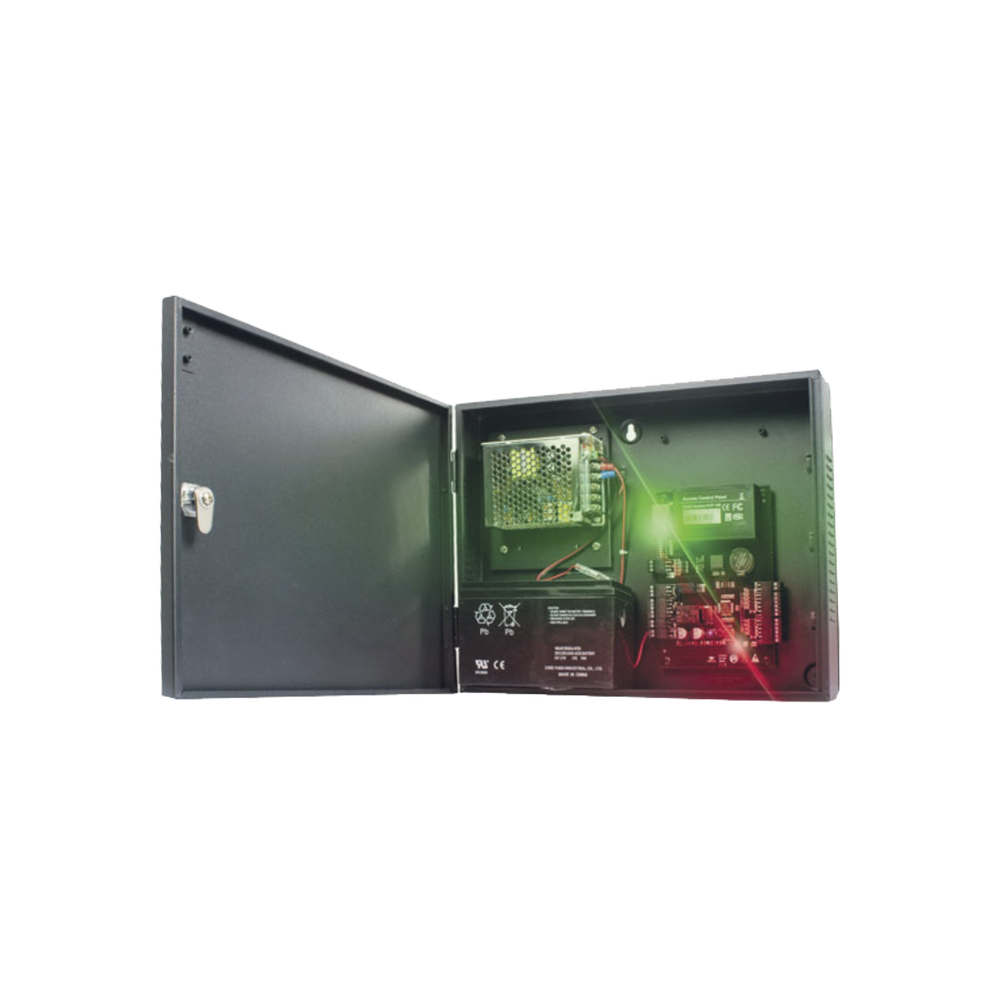

C3400 Four-Door Access Controller / Easy management / 30,000 Cards / Metal Cabinet and 12VDC/3A Power Supply Included

Features
- Access control

Capacity
- Cards: 30,000
- Passwords: 30,000
- Events: 100,000
(Event memory expandable with SD Memory up to 32GB)

Communication
- TCP / IP and RS485
- Input: multi-format Wiegand

Hardware
- Metal cabinet
- Includes 12VDC / 3A power (Battery not included).

Access Control Functions
- Access control by schedules and doors
- Combinables verification methods:
   • Card + Password (with reader model SYSKR602EKB)
- Multi-user verification
- Interlock
- Anti-passback
- Energized relay function

Connections
- 4 relay output NC / NO / COM for board
- 4 Auxiliary relay output NC / NO / COM
- 4 Auxiliary output
- Exit button and magnetic sensor

Power
- 12VDC / 100mA
- Includes 12VDC / 3A power

Compabibles Readers
- Proximity:
   • SYSKR600E and SYSKR601E
   • Supports 2 readers per door

- Proximity with keyboard:
   • SYSKR602EKB
   • Supports 2 readers per door

- Long Range Readers:
   • PRO6RF and PRO12RF
   • Supports 2 readers per door


Additional Information
- Operating Temperature: 0-55 ° C
- Dimensions: 380 x 290 x 80 mm
- Includes Management Software (in Spanish)

*1 Year Warranty


Configurations
