Switch PoE+ Administrable CentreCOM FS980M, Capa 3 de 8 Puertos 10/100 Mbps + 1 puerto RJ45 Gigabit/SFP Combo, 150 W

Ports:

8 x 10/100 Mbps.

1 x SFP Gigabit Combo ports.

Forwarding rate: 2.68 Millon of packets per second (Mpps).

Switching fabric: 3.6 Gbps.

PoE:

IEEE 802.3af Power Over Ethernet (PoE).

IEEE 802.3at Power Over Ethernet plus (PoE+).

Max power PoE: 150 W.

OS:

AlliedWare Plus™.

Management:

Command Line Interface (CLI).

Web-base Graphical User Interface (GUI).

Telnet.

SSH.

SNMP v1, v2c & v3.

Key Features:

Access Control Lists (ACLs) based on Layer 2, 3 y 4.

IPv6 fratures.

Eco-friendly.

IEEE 802.1x/MAC/Web authentication support.

Multicast support - IGMP snooping (IGMPv1, v2 and v3).

Storm protection.

Bridge Protocol Data Unit (BPDU) protection.

Tri-authentication.

QoS (Quality of Service):

• Eight priority queues.
• Limit bandwidth per port or per traffic.
• Traffic classification with low latency.

Resiliency Features:

Ethernet Protection Switched Ring (EPSRing).

Loop protection.

Link Aggregation.

Spanning Tree Protocol (STP).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Layer 3 features supported:

Static routing.

RIP.

Power characteristics:

100-240 VAC, 50-60 Hz.

Physical specifications:

Dimensions: 43.6 x 330 x 204 mm.

Weight: 2.5 kg.

Environmental specifications:

Operating temperature range: 0 a 50° C (32 to 113° F).

Warranty:

1 year, for an additional year please clic the next link:

http://www.alliedtelesis.com/support/maintenance-and-warranty/register

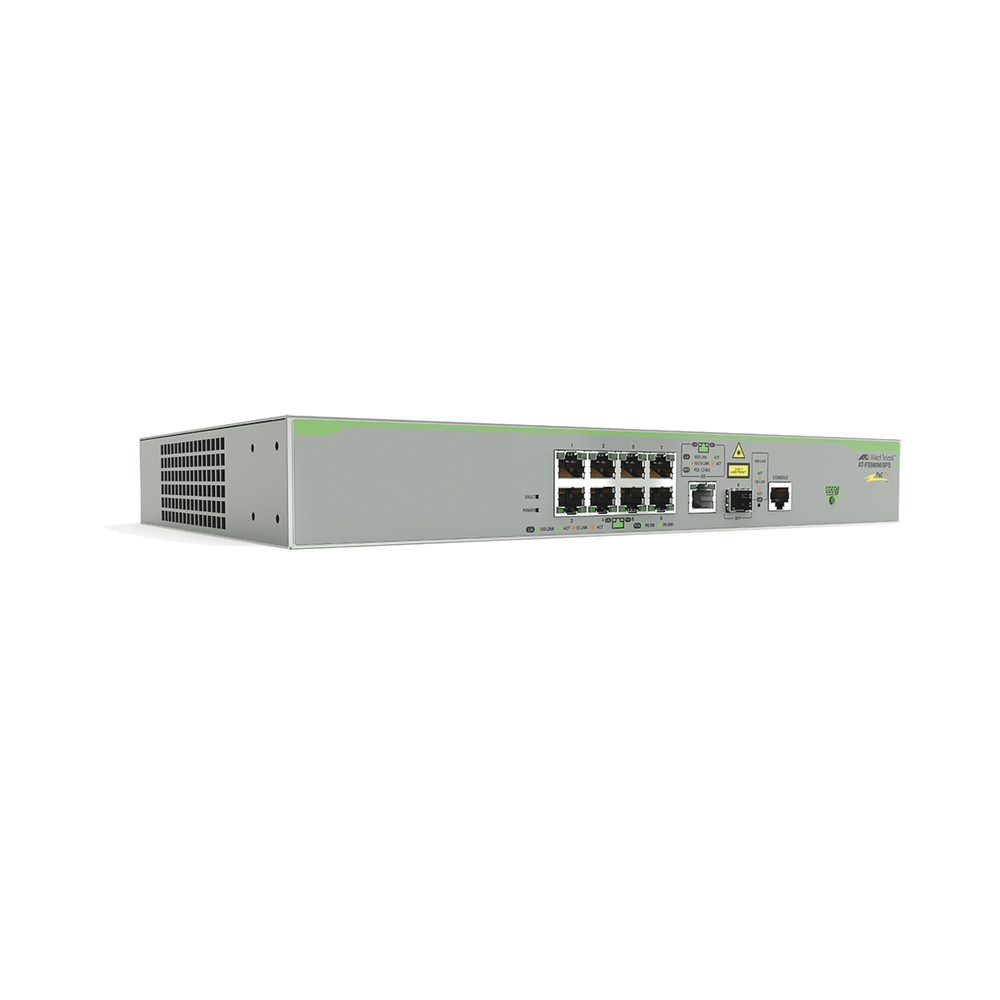

FS980M/9PS Front Panel.
