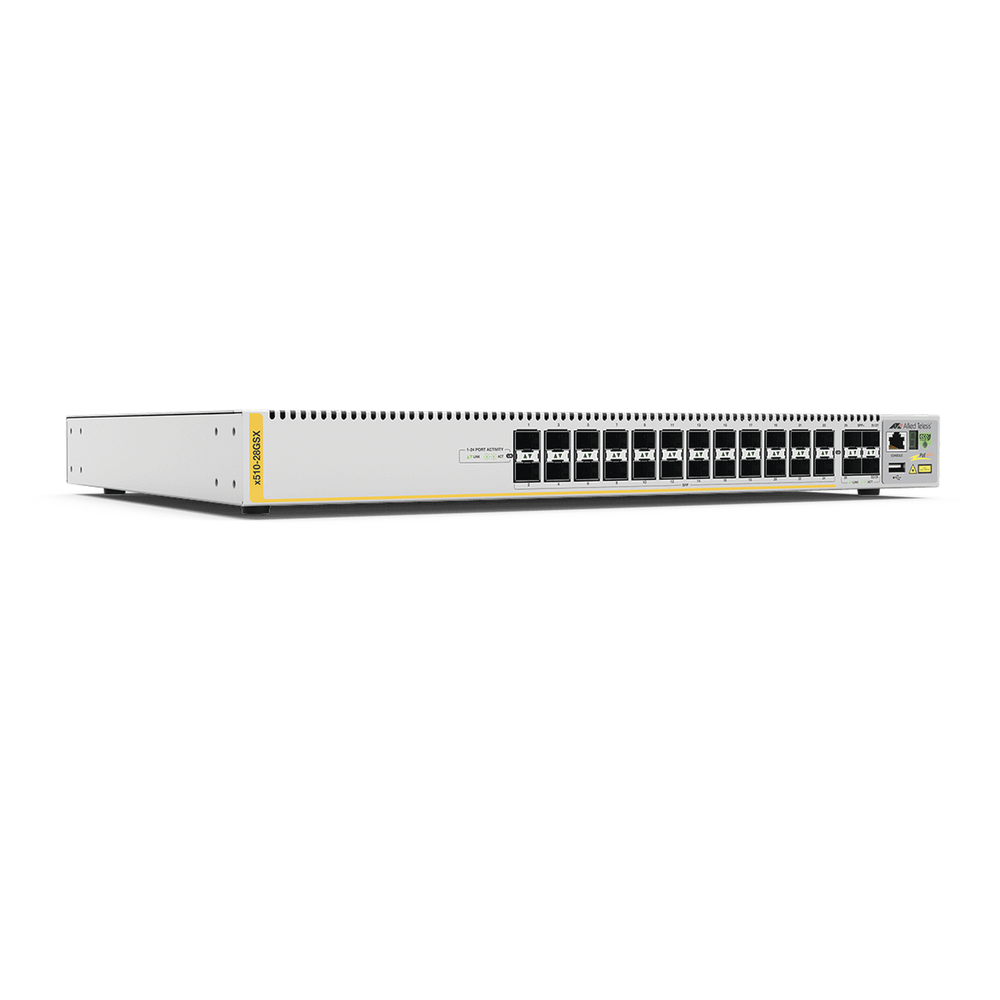

Switch Stackeable Capa 3, 24 puertos SFP Gigabit + 4 puertos SFP+ 10 G, fuente redundante

Ports:

24 x 100/1000X SFP ports.

4 x SFP+ 10 G ports (2 if stacked).

Forwarding rate: 95.2 Millon of packets per second (Mpps).

Switching fabric: 128 Gbps.

OS:

AlliedWare Plus™.

Management:

Command Line Interface (CLI).

Web-based Graphical User Interface (GUI).

Telnet.

SSH.

SNMP v1, v2c & v3.

Key features:

OpenFlow for Software Defined Network (SDN).

Voice VLAN.

VLAN Mirroring (RSPAN).

Access Control Lists (ACLs).

VLAN ACLs.

Storm protection.

Loop protection.

Support Multicast -IGMP snooping (v1, v2 and v3)

Tri-authentication.

QoS (Quality of Service):

• 8 priority queues with a hierarchy of high priority queues for real-time traffic, and mixed scheduling, for each switch port.
• Limit bandwidth per port or per traffic.


Routing protocols:

Static Routing.

Routing Information Protocol (RIP).

Open Shortest Path First (OSPFv3).

Premium Software License AT-FL-X510-01.

Resiliency Features:

G.8032 Ethernet Ring Protection.

Ethernet Protection Switched Ring (EPSRing).

Multiple Spanning Tree Protocol (MSTP).

Rapid Spanning Tree Protocol (RSTP).

Power characteristics:

90-260 VAC, 47-63 Hz.

Physical specifications:

Dimensions: 1 U Rack, 440 x 325 x 44 mm.

Weight: 4.8 kg.

Environmental specifications:

Operating temperature range: 0 a 45° C.

Warranty:

1 year.

Example of Resilient Network.
