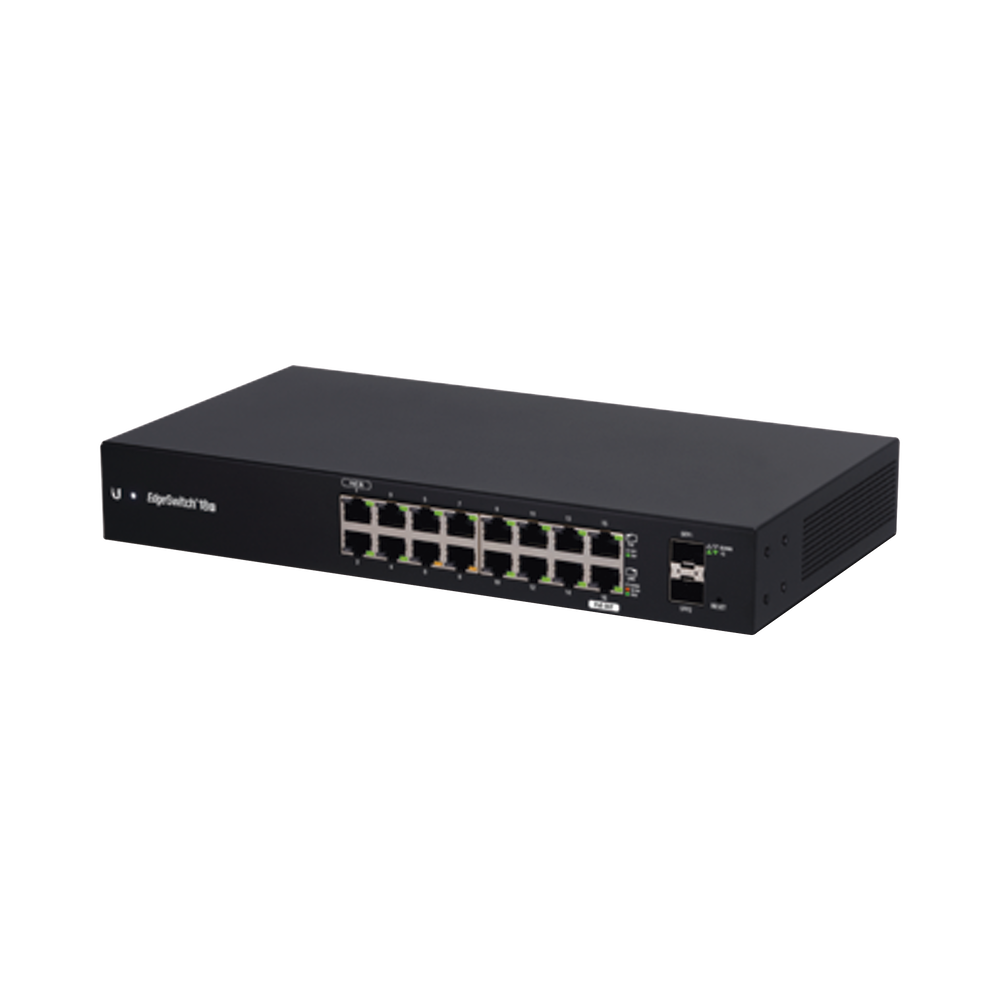

EdgeSwitch 18X Administrable para WISP asequible y sin ventilador con (16) puertos Gigabit RJ45 y (2) puertos SFP
Descripción del producto
Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through the Ubiquiti® Network Management System (UNMS™).
Features:
- (16) Gigabit RJ45 ports
- (2) SFP ports
- Supports PoE passthrough on port 16 (software-selectable)
- Powered by 24V passive PoE or external 24V AC/DC adapter
- Wall or rack-mountable (bracket included)
| ES-18X | |
|---|---|
| MECHANICAL | |
| Dimensions | 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7") |
| Weight Without Mount With Mount | 1.15 kg (2.54 lb) 1.43 kg (3.15 lb) |
| Enclosure Material | Metal |
| Mount Material Metal | Metal |
| HARDWARE | |
| Processor | MIPS 4Kc, 500 MHz |
| System Memory | 128 MB DDR3 |
| On-Board Flash Storage | SPI 16 MB |
| Total Non-Blocking Throughput | 18 Gbps |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Max. Power Consumption | 14W (Excludes PoE Output) |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 8 kV |
| Power Method External | AC/DC Adapter 24V Passive PoE |
| Power Supply | 24VDC, 1.0A Power Adapter (Included) 24V Passive PoE |
| Supported Voltage Range | 9 - 30VDC |
| Networking Interfaces | (16) 10/100/1000 Mbps Ethernet RJ45 Ports (2) 1 Gbps SFP Ports |
| PoE Interfaces | (1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-) |
| Management Interface | Ethernet In-Band |
| Passive PoE Max Wattage per Port | 15W |
| Passive PoE Voltage Range | 24V |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity 10 | - 90% Noncondensing |
| Certi cations | CE, FCC, IC |
| LEDS | |
| System | (1) White/Blue |
| Ethernet Green | 1G, Amber: 10/100 Mbps |
| SFP Green | 1G |
| SOFTWARE | |
| Mode | Layer 2 Ethernet Switch |
| VLAN | 4K VLANs |
| QoS | (16) Priority Queues per User Port and Traf c Classi cation |
| Jumbo Frame | 10 KB |
| PoE | Enable/Disable Passive PoE |
| Other | TFTP Recovery |
| Ubiquiti Specic | Features Ubiquiti Discovery |
| Minimum Software Requirements | Web Browser (Chrome Recommended) |
