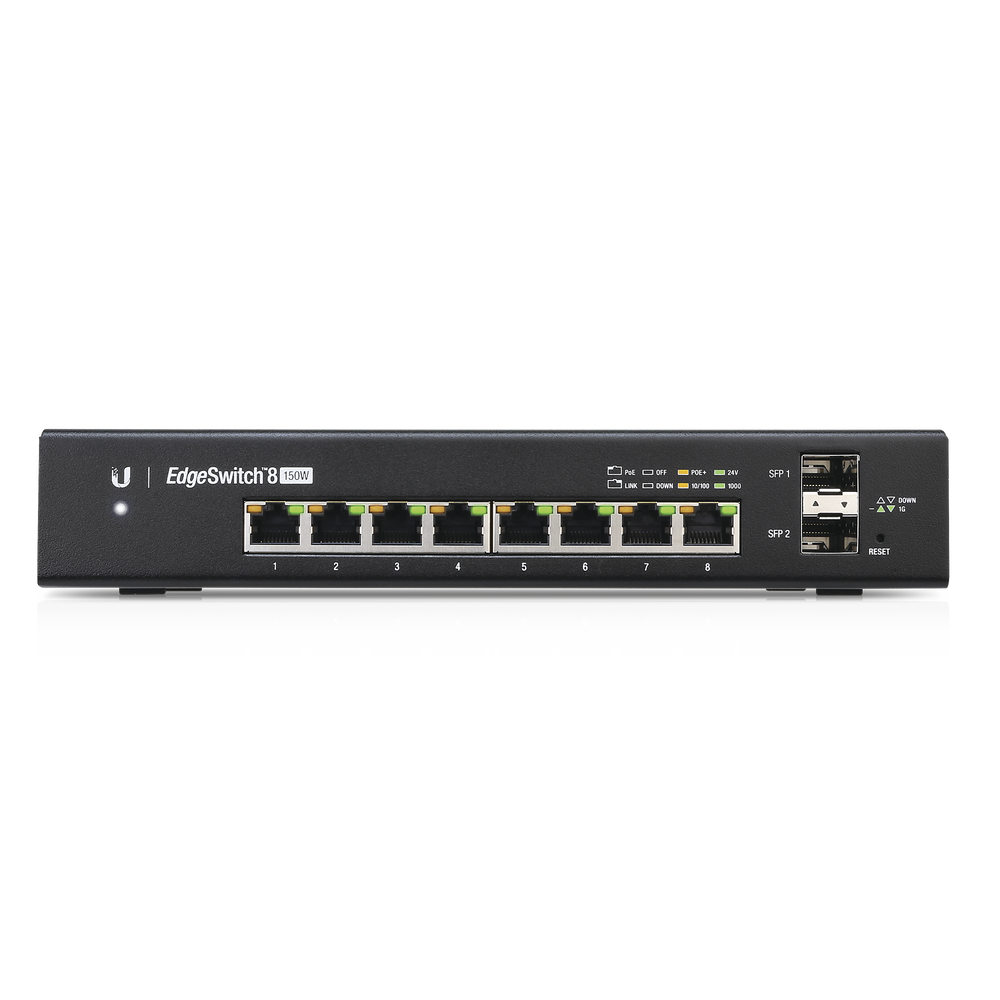

Switch EdgeMAX Administrable de 8 Puertos Gigabit con PoE+/PoE Pasivo 24V + 2 Puertos SFP, 150 W

Ports:

8 x 10/100/1000 Mbps.

2 x SFP Gigabit.

Forwarding rate: 14.88 Millon of packets per second (Mpps).

Switch Fabric: 20 Gbps.

PoE:

IEEE 802.3af Power Over Ethernet (PoE).

IEEE 802.3at Power Over Ethernet plus (PoE+).

24V Passive PoE.

Max power PoE: 150 W.

Management:

Web User Interface (Web UI).

Command Line Interface (CLI).

SNMP v1, v2 y v3.

SSH.

Telnet.

Platform Specifications:

MAC Addresses: 16,384.

MSTP Instances: 4.

LAGSs: 6.

ACL's: 100 with 10 rules per port.

Traffic Classes (Queues): 8.

Layer 2 Features:

DHCP Snooping.

IGMP Snooping.

Port Mirroring.

TACACS+.

Layer 3 Routing:

Static Routing: up to 16 routes.

Power characteristics:

100-240 VAC, 50-60 Hz or 46-56 VDC.

Physical specifications:

Dimensions: 1 U Rack, 204 x 43 x 235 mm.

Weight: 1.8 kg (3.96 lb).

Environmental specifications:

Operating temperature range: -25 a 45° C (-13 to 113° F).

Package contents:

Switch unit.

Wall-mount brackets and screws.

Power cord.

Warranty:

1 year.

Enterprise-Class Features.

The EdgeSwitch® supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Advanced UI.

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
