Switch Industrial de 8 Puertos Gibabit 10/100/1000T, Diseñado para Montaje en Pared y Riel DIN

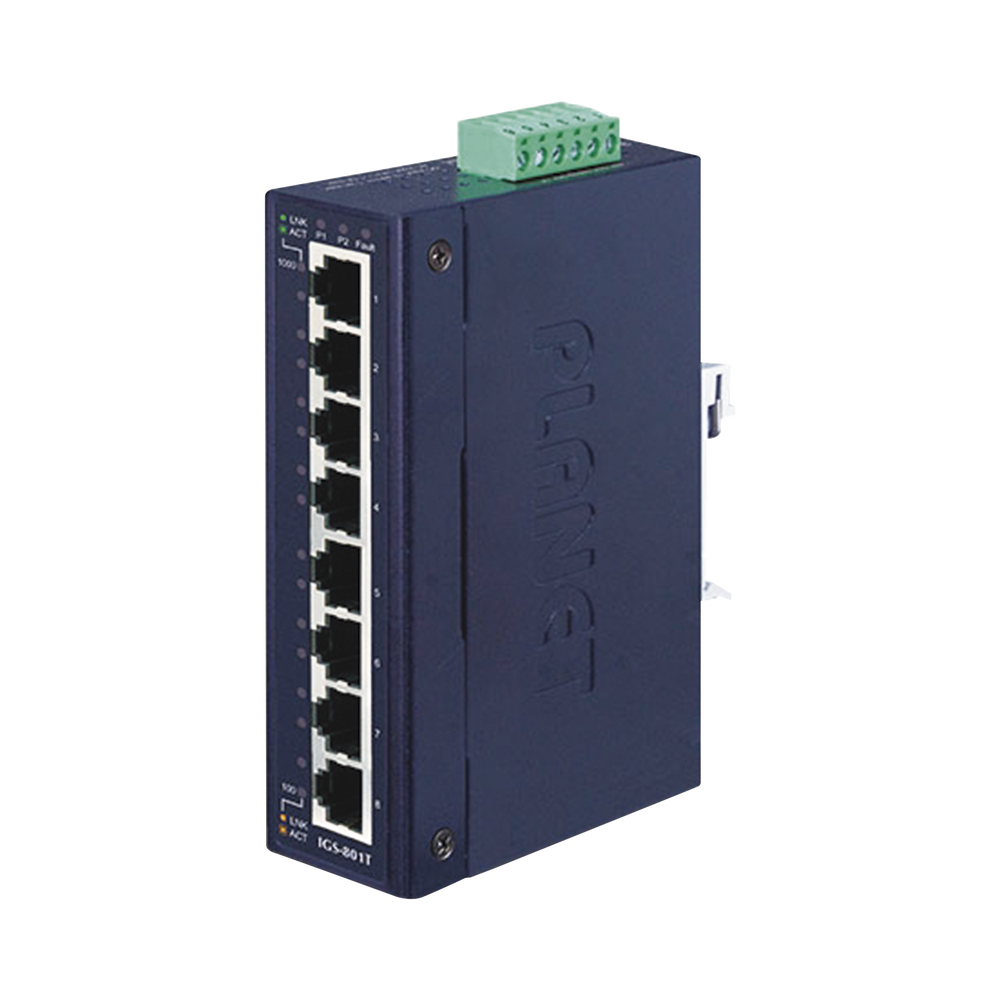

PLANET IGS-801T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 8 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.Its compact IP30-rated metal case features either DIN rail or wall mount for the efficient use of cabinet space.

Physical Port

• 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function

Layer 2 Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
• Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode
• High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• 4K absolute MAC address and 16Gbps switching fabric support
• 1.5Mbits SRAM packet buffer
• 9K jumbo packet size support
• IEEE 802.1p CoS support
• Automatic address learning and address aging
• CSMA/CD Protocol

Industrial Case and Installation

• IP30 metal case
• DIN rail and wall-mount design
• 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
• -40 to 75 degrees C operating temperature
